Battery Disconnect And Connect - With ADAS
WARNING: This page is about a different variant/trim than selected.
DISCONNECT MAIN BATTERY
- Remove the rear floor heat duct(s). Refer to DUCT, FLOOR DISTRIBUTION, REAR, REMOVAL AND INSTALLATION
.

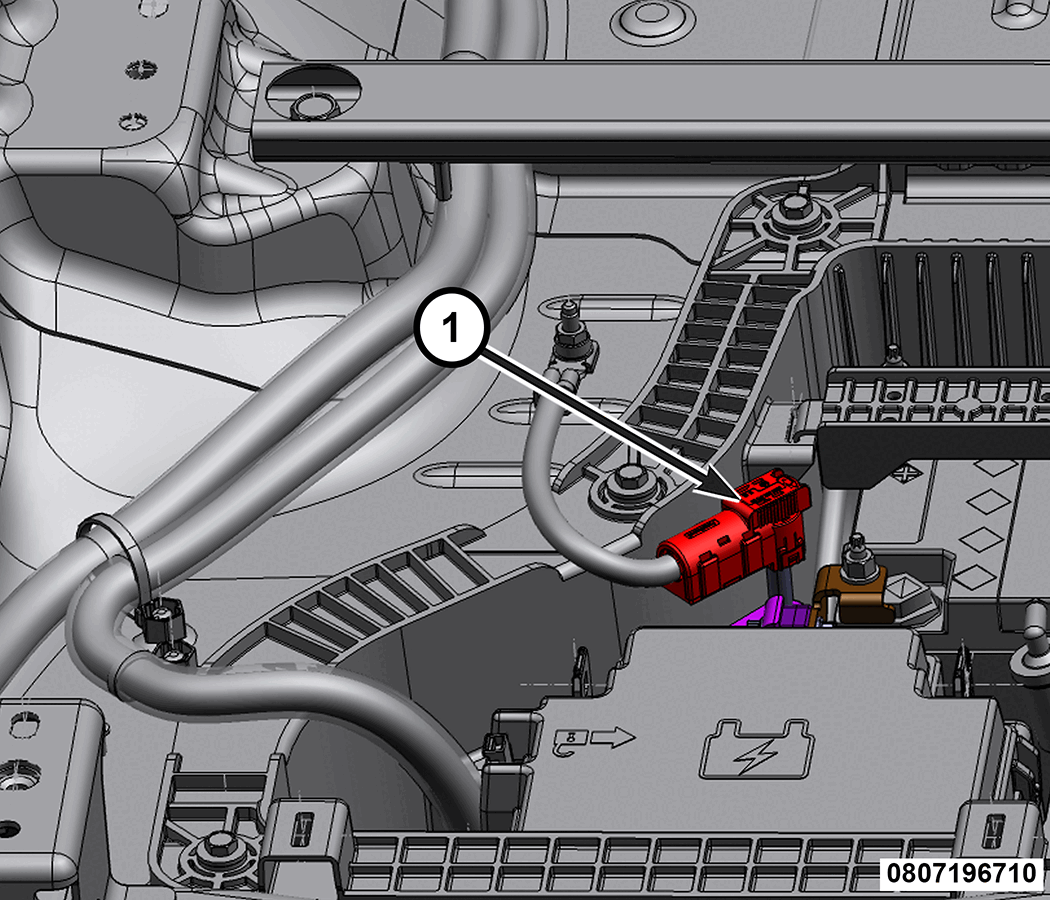

1 - Negative Battery Cable - Disconnect the Intelligent Battery Sensor (IBS) wire harness connector.
- Press and release the negative battery cable.
DISCONNECT AUXILIARY BATTERY
- Remove the rear floor heat duct(s). Refer to DUCT, FLOOR DISTRIBUTION, REAR, REMOVAL AND INSTALLATION
.

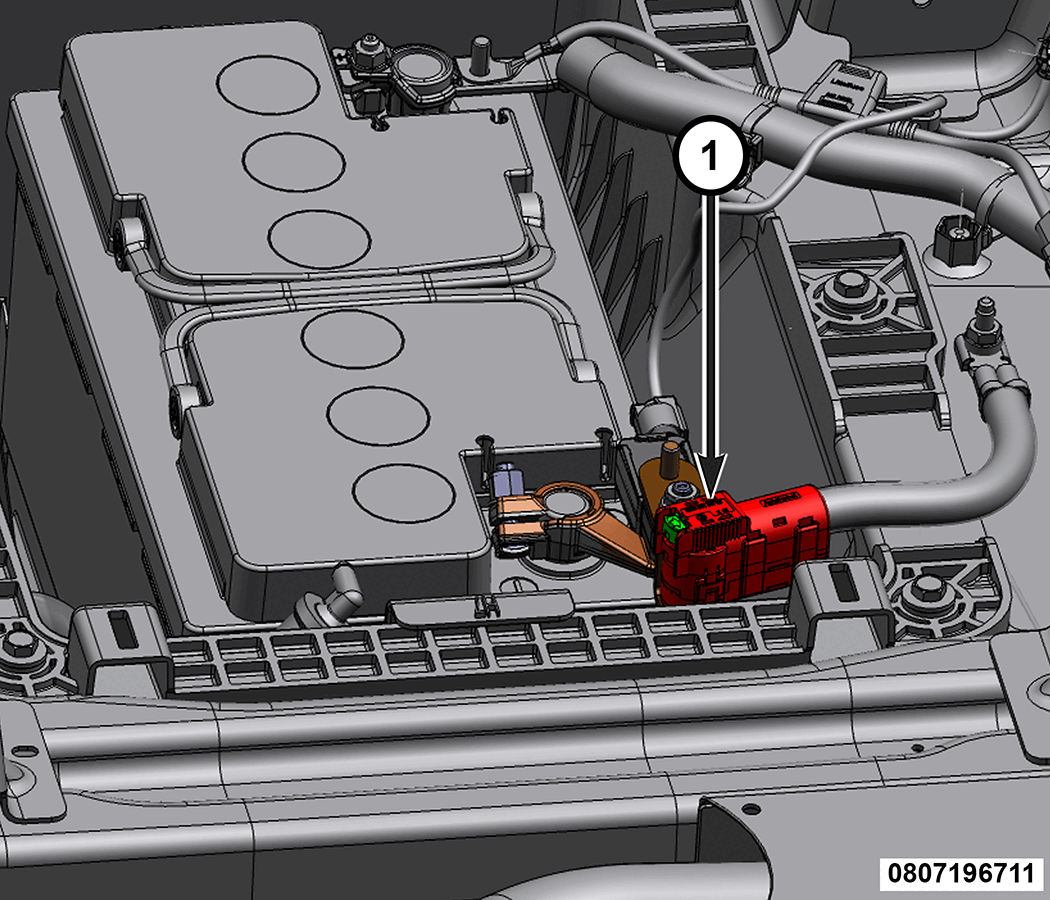

1 - Negative Battery Cable - Disconnect the Intelligent Battery Sensor 2 (IBS2) wire harness connector.
- Press and release the negative battery cable.
CONNECT AUXILIARY BATTERY
| 1 - Auxiliary Negative Battery Cable |
| 2 - Intelligent Battery Sensor (IBS) Wire Harness Connector |
- Press and install the auxiliary negative battery cable onto the IBS stud.
- Connect the IBS wire harness connector.
- Install the rear floor heat duct. Refer to DUCT, FLOOR DISTRIBUTION, REAR, REMOVAL AND INSTALLATION .
CONNECT MAIN BATTERY
| 1 - Main Negative Battery Cable |
| 2 - Intelligent Battery Sensor (IBS) Wire Harness Connector |
| 3 - Ground Terminal Nut |
- Press and install the main negative battery cable onto the IBS stud.
- Connect the IBS wire harness connector.
- Install the rear floor heat duct. Refer to DUCT, FLOOR DISTRIBUTION, REAR, REMOVAL AND INSTALLATION .
