PDC To Bulkhead Cable: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the floor carpet. Refer to CARPET, FLOOR, REMOVAL AND INSTALLATION .
- Remove the instrument panel. Refer to PANEL, INSTRUMENT, REMOVAL AND INSTALLATION
.

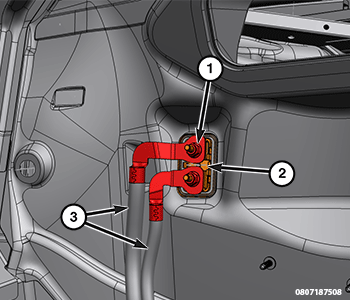

1 - Battery Positive Wire Harness Retainers 2 - Battery Harness Isolator 3 - Battery Positive Wire Harness Loosen and disconnect the interior battery cable(s) from the battery harness isolator.

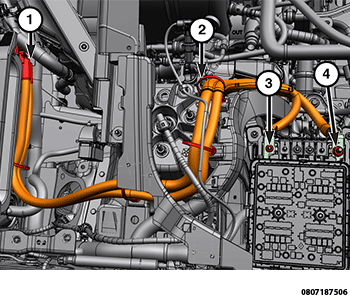

1 - Battery Cable Isolator Connector 2 - Wire Harness Retaining Clip 3 - Battery Positive B(+) at Power Distribution Center (PDC) M6 Nut 4 - Battery Positive B(+) at Power Distribution Center (PDC) M8 Nut - Remove the battery cable isolator from the bulkheads.
- Remove the wire harness retaining clips
- Remove the M6 nut securing the battery positive B(+) harness to the PDC.
- Remove the M8 nut securing the battery positive B(+) harness to the PDC and remove the cable from the vehicle.
