Battery To Bulkhead Cable: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the floor carpet. Refer to CARPET, FLOOR, REMOVAL AND INSTALLATION .
- Remove the instrument panel. Refer to PANEL, INSTRUMENT, REMOVAL AND INSTALLATION
.

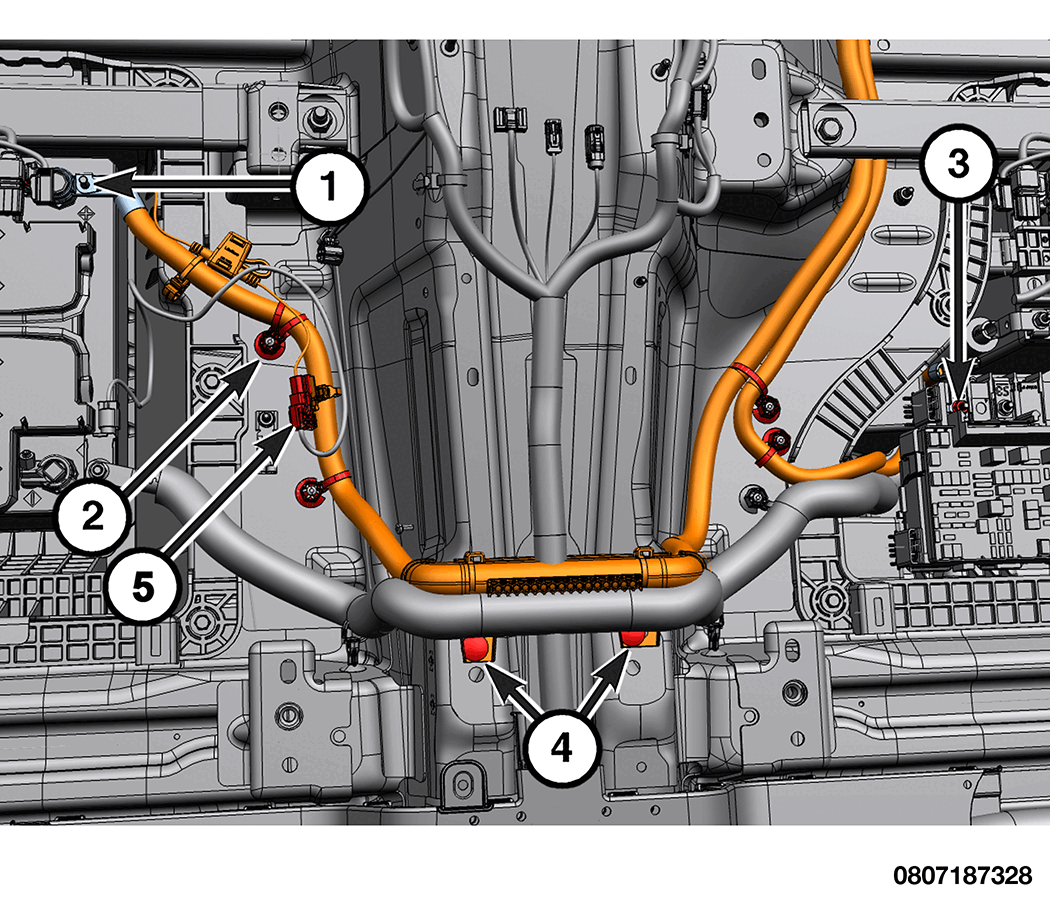

1 - Interior Battery Cable Clamp to Battery Post 2 - Wire Harness Retaining Clip 3 - Battery Positive B(+) at Power Distribution Center (PDC) 4 - Wire Harness Trough Push Pins 5 - Fuse Holder Electrical Connector Loosen and disconnect the interior battery cable clamp to battery post.
- Disconnect the fuse holder electrical connector.
- Remove the nut securing the battery positive cable to the PDC.
- Remove the wire harness and wire harness trough retainers.

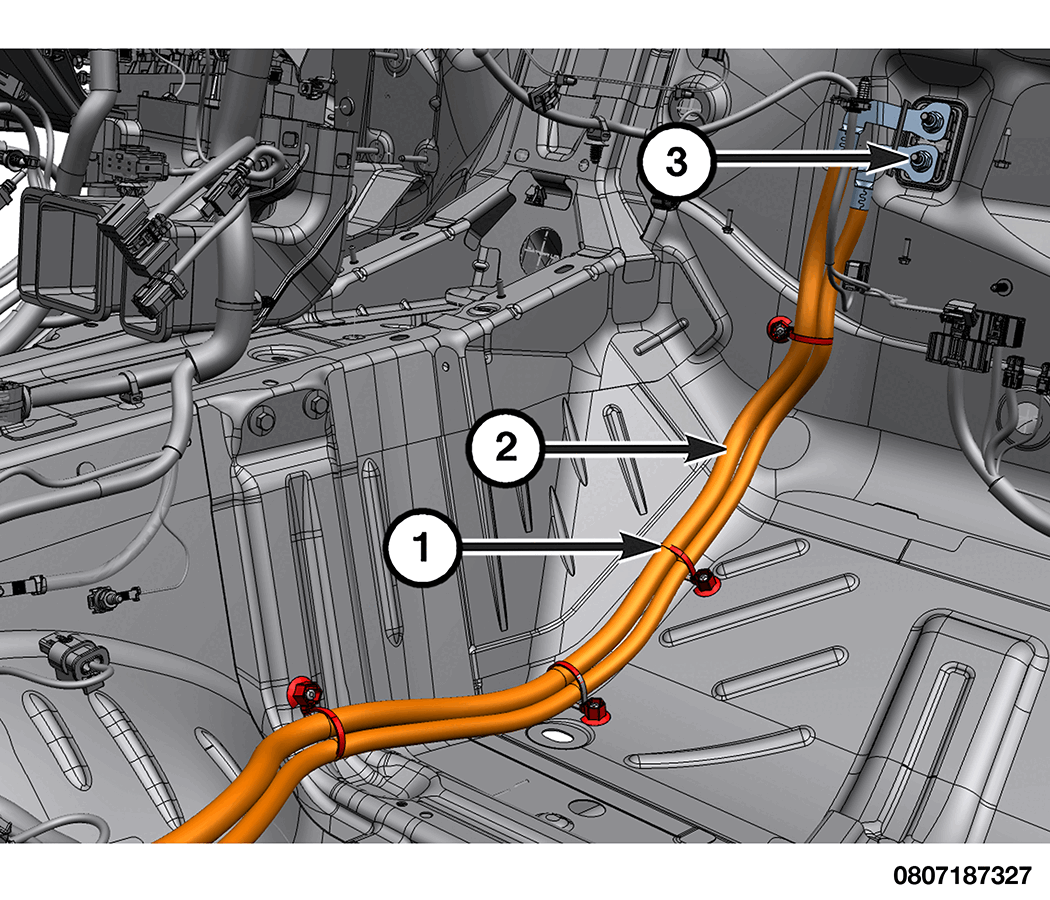

1 - Battery Positive Wire Harness Retainers 2 - Battery Positive Wire Harness 3 - Battery Positive B(+) at Bulkhead Captured Nut - Loosen the captive nuts securing the battery positive wiring harness to the bulkhead connector.
- Remove the nut securing the battery positive B(+) harness to the bulkhead isolator.
- Remove the retainers that secure the battery positive wire harness to the body and remove the harness from the vehicle.
