Auxiliary Battery - ADAS: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
To protect the hands from battery acid, a suitable pair of heavy duty rubber gloves should be worn when removing or servicing a battery. Safety glasses also should be worn.
WARNING:
Remove metallic jewelry to avoid injury by accidental arcing of battery current.
- Disconnect and isolate both negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT ELECTRICAL/BATTERY SYSTEM/STANDARD PROCEDURE .
- Remove the fasteners that secure the front passenger seat and tip it forward to gain access to the auxiliary battery.
- Remove the rear heat floor duct. Refer to DUCT, FLOOR DISTRIBUTION, REAR, REMOVAL AND INSTALLATION .
- Remove the auxiliary battery floor cover from below the seat.
- Remove IBS2. Refer to
SENSOR, INTELLIGENT BATTERY (IBS)
, REMOVAL AND INSTALLATION .

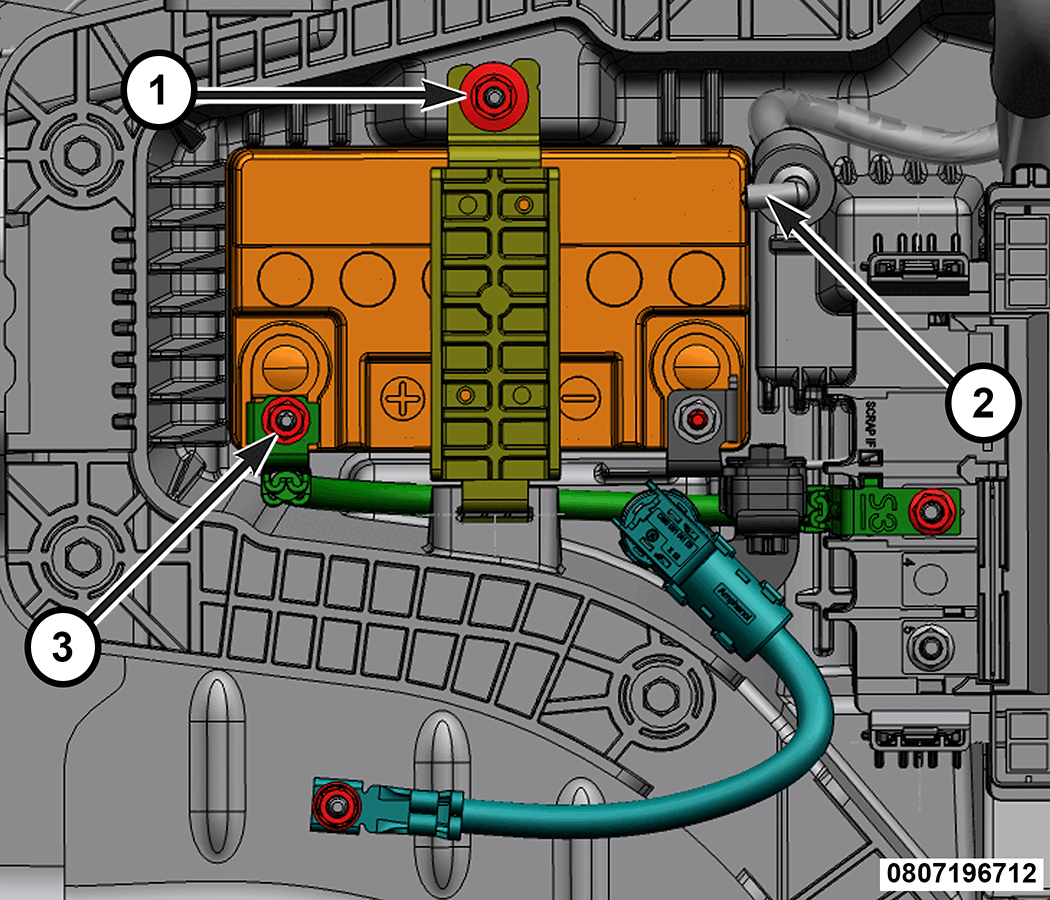

1 - Battery Hold Down Strap Nut 2 - De-Gas Vent Tube 1 - Auxiliary Battery Positive Cable Nut - Remove the auxiliary battery positive cable nut and isolate the battery positive battery cable.
- Remove the auxiliary battery vent tube.
- Remove the auxiliary battery hold-down nut that secures the battery hold-down.

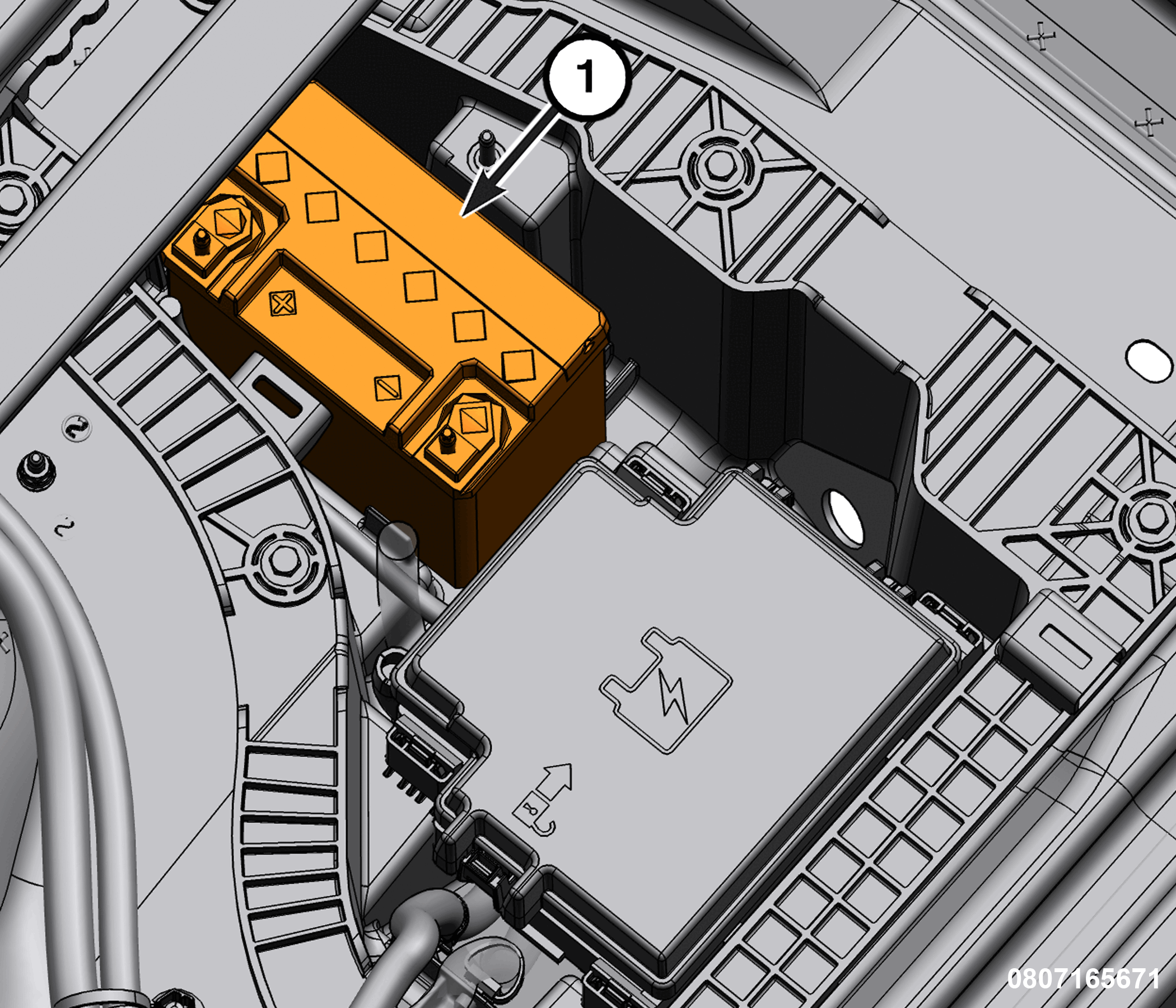

1 - Auxiliary Battery - Remove the auxiliary battery from the vehicle.
- If needed remove the double Torx studs from the battery.
