Standard Procedure - Transmission Cooler Line Quick Connect Fitting Disconnect/Connect: Disconnect
WARNING: This page is about a different variant/trim than selected.
TRANSMISSION END
- Remove the dust cap (2) by pulling it straight back off of the quick connect fitting (1).
- Place the disconnect special tool (4) (special tool #8875A, Disconnect, Transmission Cooler Line) onto a 3/8 inch transmission cooler line or special tool (special tool #9546, Disconnect Tool) onto a 1/2 inch transmission cooler line with the fingers of the tool facing the quick connect fitting.
- Slide the disconnect tool down the transmission oil cooler line and attach the fingers of the tool into the retaining clip. When properly attached in the clip, the tool will fit flush against the quick connect fitting.
- Rotate the disconnect tool 60° to expand the retaining clip.
- While holding the disconnect tool against the quick connect fitting, pull back on the transmission cooler line and remove the line.
TRANSMISSION OIL COOLER END

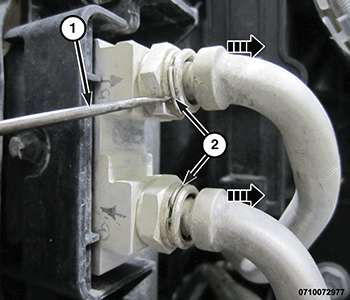

- Using a suitable tool (1), remove the spring clips (2) from the connectors.
- Pull the transmission oil cooler lines out from the transmission oil cooler.
