Standard Procedure - Transmission Cooler Line Quick Connect Fitting Disconnect/Connect: Connect

WARNING: This page is about a different variant/trim than selected.

TRANSMISSION END

Courtesy of CHRYSLER GROUP, LLC

Align transmission cooler line (3) with quick connect fitting while pushing straight into the fitting.
Push in on transmission cooler line until a "click" is heard or felt.
Slide dust cap (4) down the transmission cooler line and snap it over the quick connect fitting until it is fully seated and rotates freely. Dust cap will only snap over quick connect fitting when the transmission cooler line is properly installed.

NOTE:

If dust cap will not snap into place, repeat assembly step #2.

TRANSMISSION OIL COOLER END

Courtesy of CHRYSLER GROUP, LLC

Position the spring clip (2) in the quick connect fitting (1) so that the clips appear as illustration.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Lubricate the end of the transmission cooler oil line with the appropriate fluid to ease installation.

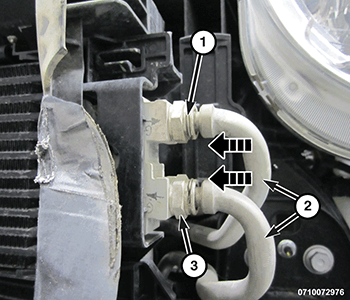

Push the transmission oil cooler lines (2) into the fittings (3) until a "click" is heard or felt.
Check that the transmission oil cooler line is locked into the fitting by attempting to pull the line out. If the line comes out, inspect the spring clip for correct installation and repeat steps 2 and 3.
