Output Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transfer case. Refer to REMOVAL AND INSTALLATION - MPT3015C or REMOVAL AND INSTALLATION - MPT3028C .

Courtesy of CHRYSLER GROUP, LLC

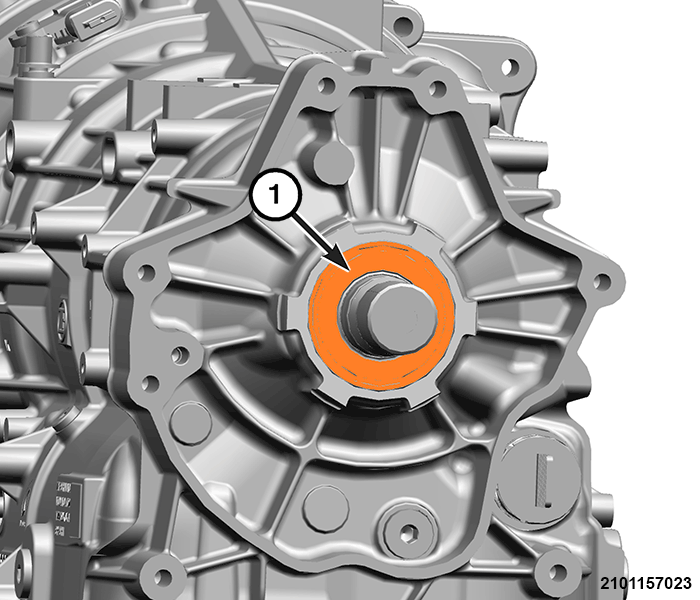

1 - Output Shaft Seal
Remove and discard the output shaft seal with a suitable screw and slide hammer.

INSPECTION AND CLEANING

Cleaning

Clean and inspect the seal sealing surface.
