Transmission Mount: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the transfer case skid plate. Refer to PLATE, SKID, REMOVAL AND INSTALLATION .
    GC0201647Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Mount to Transmission Crossmember Nuts
  3. Remove the transmission mount to crossmember nuts.
  4. Using a suitable jack, raise the transmission off of the crossmember.

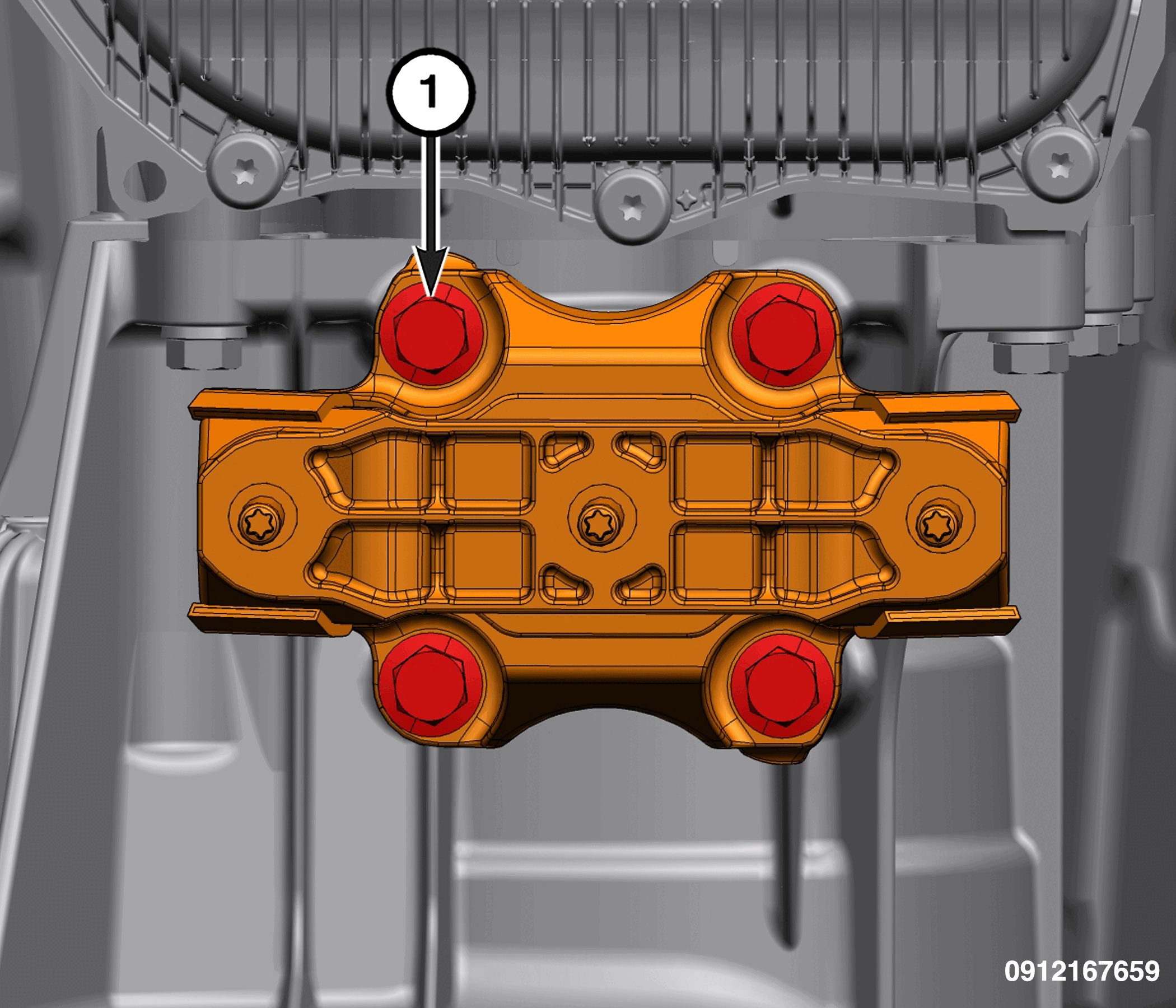

    GC0201059Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Mount Bolts
  5. Remove the transmission mount to transfer case bolts and the rear mount.
  6. Remove the transmission mount from the vehicle.
