Transmission Mount: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  2. Remove the transmission crossmember. Refer to CROSSMEMBER, REMOVAL AND INSTALLATION .

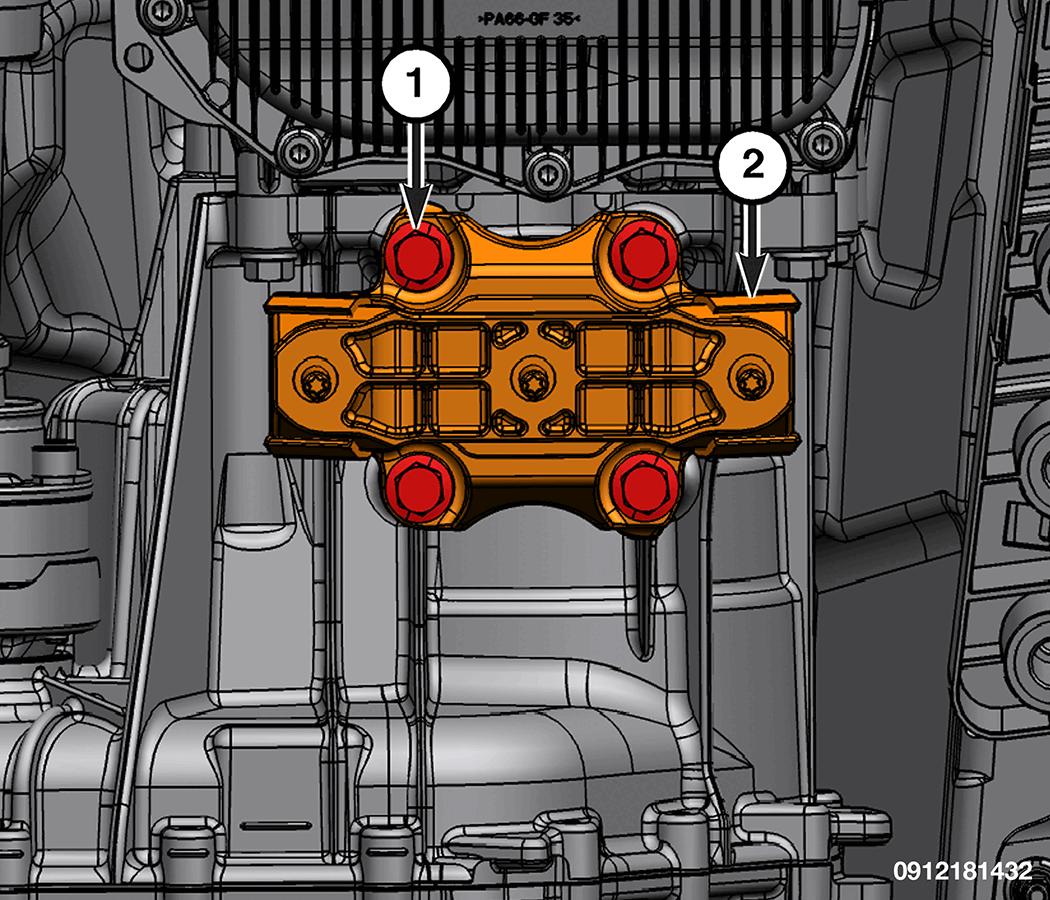

    GC0201858Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Mount to Transfer Case Bolts
    2 - Transmission Mount
  3. Remove the transmission mount to transfer case bolts and the transmission mount.
