(Torque Specifications - FLEXPLATE And 2WD Flange)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

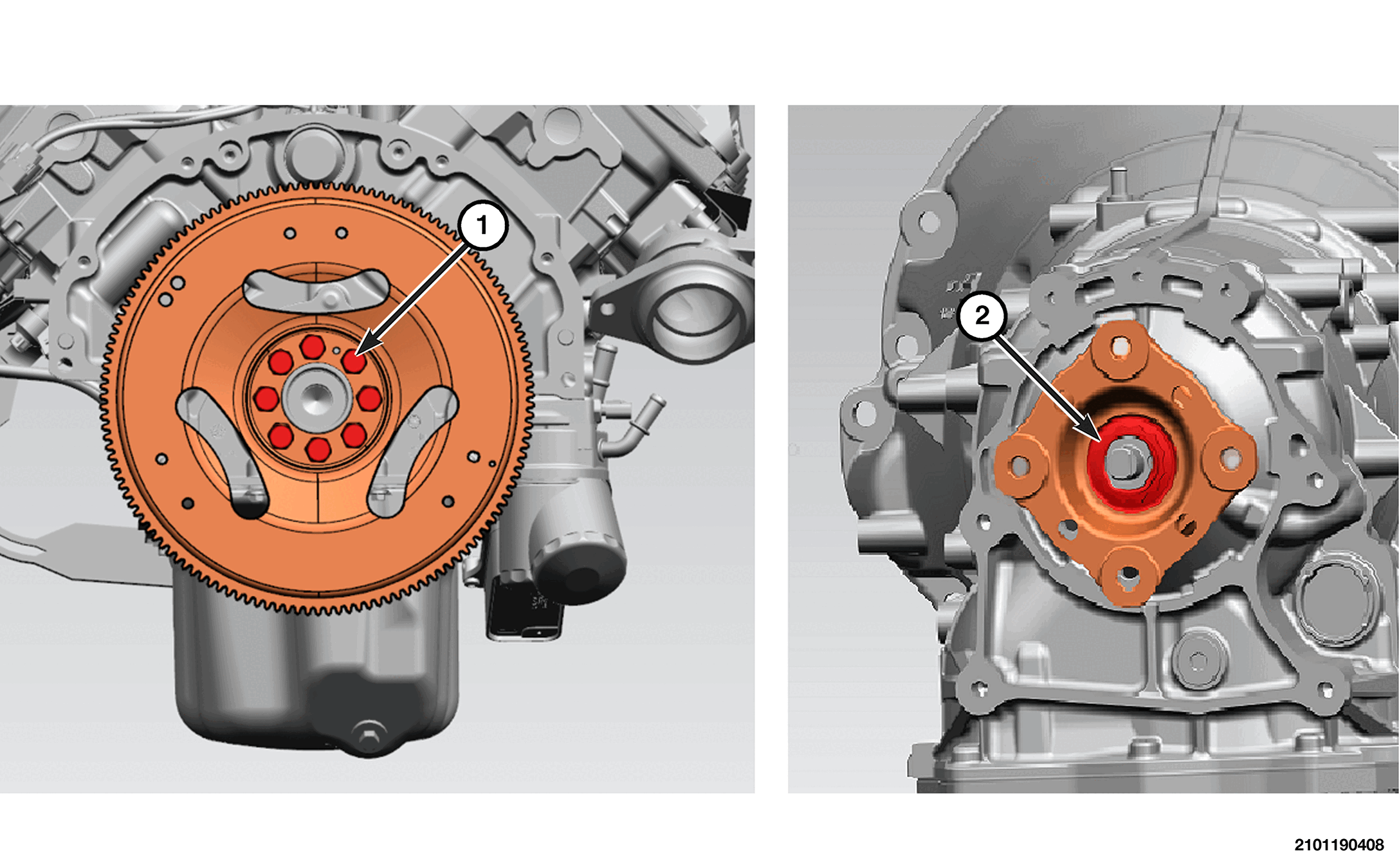

TORQUE SPECIFICATIONS - FLEXPLATE AND 2WD FLANGE
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Flexplate to Crankshaft Bolts |
95 N.m (70 Ft. Lbs.) |
- |
| 2 |
Output Shaft Flange Nut (2WD) |
60 N.m (44 Ft. Lbs.) |
- |
