Transfer Case MPT3028C: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the transmission belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  3. Support the transfer case and transmission.
  4. Remove the transfer case skid plate. Refer to PLATE, SKID, REMOVAL AND INSTALLATION .
  5. Remove the exhaust muffler resonator. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION - 2.0L or MUFFLER, EXHAUST, REMOVAL AND INSTALLATION - 3.6L or MUFFLER, EXHAUST, REMOVAL AND INSTALLATION - 5.7L .
  6. Remove the transmission crossmember. Refer to CROSSMEMBER, REMOVAL AND INSTALLATION .
    GC0201760Courtesy of CHRYSLER GROUP, LLC
    1 - Driveshaft To Flange Bolts
    2 - Driveshaft
  7. Mark the front driveshaft and transfer case flange for reassembly alignment.
    CAUTION:

    Never allow driveshaft to hang unsupported while connected to Power Transfer Unit (PTU), rear driveline module or front axle flanges. If driveshaft is hung unsupported, damage may occur to joint or boot from over-angulation.

  8. Remove and DISCARD  the front driveshaft to transfer case flange bolts. Separate the front driveshaft from the flange. Push the shaft in toward the front differential, support and set aside.
    GC0201364Courtesy of CHRYSLER GROUP, LLC
    1 - Driveshaft To Flange Bolts
  9. Mark the rear driveshaft and transfer case flange for reassembly alignment.
    CAUTION:

    Do not allow the driveshaft to hang from the vehicle unsupported. Damage may occur to the joint, boot, and center bearing from over-angulation.

  10. Support the driveshaft near the center bearing.

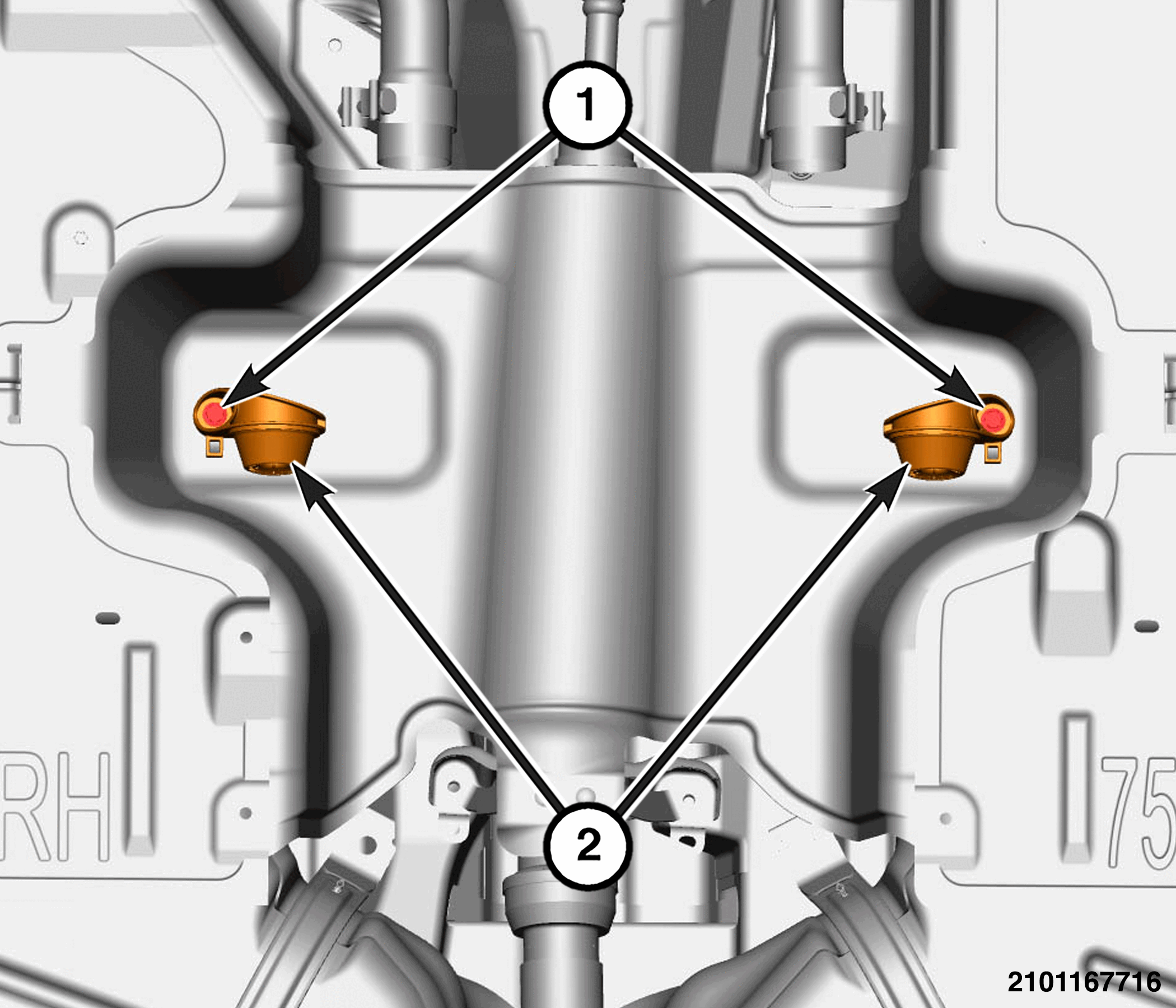

    GC0201933Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Hanger Bolts
    2 - Exhaust Hangers
  11. Remove the exhaust hangers.

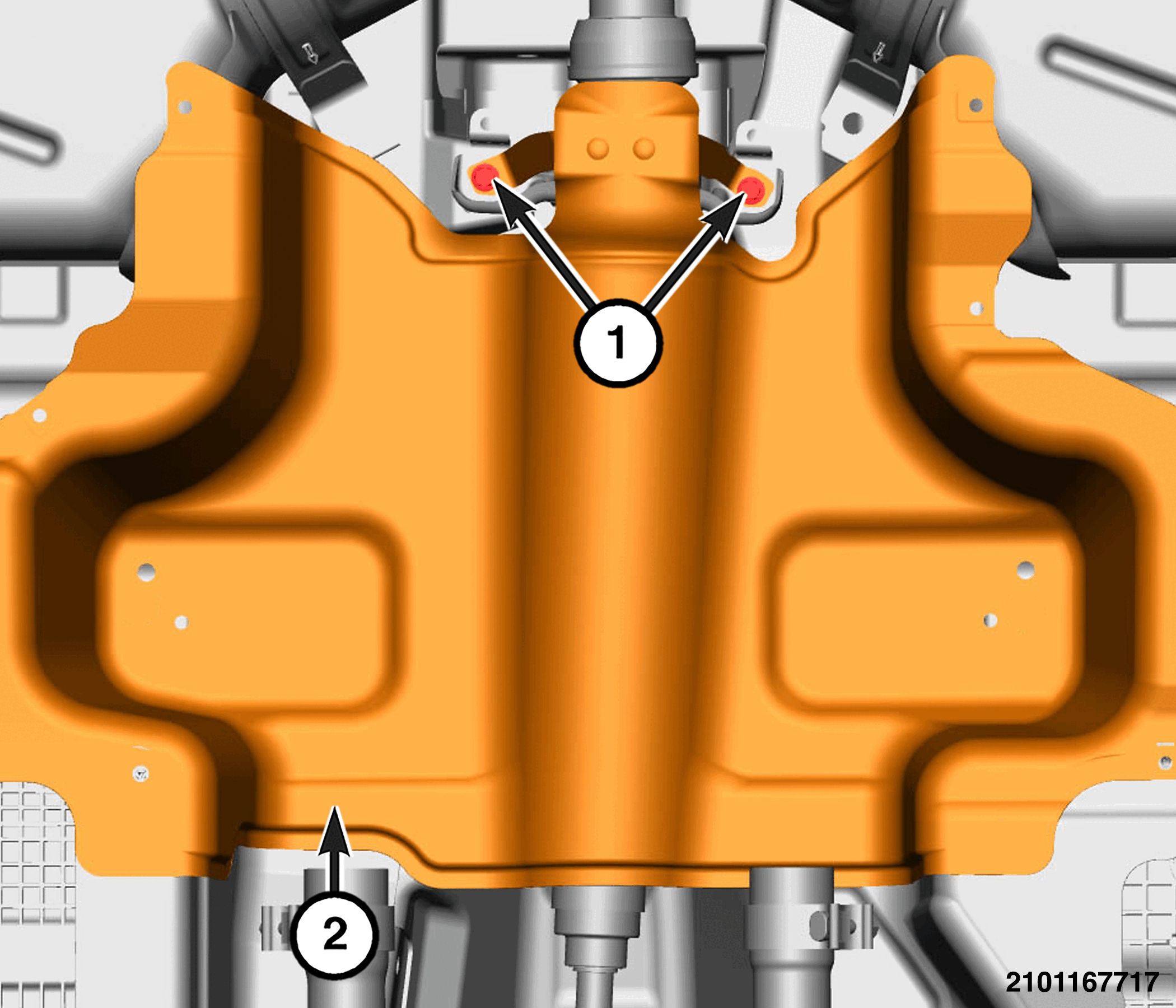

    GC0201906Courtesy of CHRYSLER GROUP, LLC
    1 - Rear Driveshaft Center Support Bearing Bolts
    2 - Exhaust Heat Shield
  12. Remove and DISCARD  the rear driveshaft center support bearing bolts and remove the exhaust heat shield.
    GC0201364Courtesy of CHRYSLER GROUP, LLC
    1 - Driveshaft To Flange Bolts
  13. Remove and DISCARD  the rear driveshaft to transfer case flange bolts. Separate the rear driveshaft from the flange, support and set aside.
    GC0200717Courtesy of CHRYSLER GROUP, LLC
    1 - Shift Motor M8 Cover Bolt
    2 - Shift Motor M10 Cover Bolts
  14. Remove the shift motor cover bolts and cover.
  15. PHEV vehicle only, remove the transfer case bending damper.
    GC0201920Courtesy of CHRYSLER GROUP, LLC
    1 - Transfer Case Shift Motor Wire Harness Connector
    2 - Transfer Case Position Sensor Wire Harness Connector
  16. Disconnect the transfer case shift motor wire harness connector.
  17. Disconnect the transfer case position sensor wire harness connector.
    GC0201955Courtesy of CHRYSLER GROUP, LLC
    1 - Transfer Case to Transmission Bolts (Left Side)
    GC0202025Courtesy of CHRYSLER GROUP, LLC
    1 - Transfer Case to Transmission Bolts (Right Side)
  18. Remove the left and right side transfer case to transmission bolts.
  19. Remove the transfer case from the vehicle.
