TORQUE SPECIFICATIONS - INTERNAL TRANSMISSION COMPONENTS AND OIL PAN

DESCRIPTION	SPECIFICATION	COMMENT
Hydraulic Impulse Solenoid (HIS) Bolts	8 N.m (71 In. Lbs.)	-
Output Speed Sensor Bolt	9 N.m (80 In. Lbs.)	-
Park Pawl Lock Rod Guide Plate Bolt	10 N.m (89 In. Lbs.)	-
Park Pawl Shaft Plug	35 N.m (26 Ft. Lbs.)	-

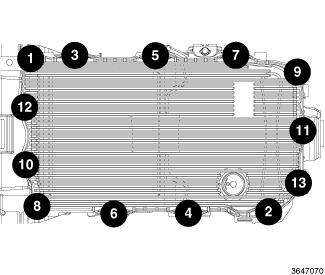

Transmission Oil Pan Bolt	11 N.m (8 Ft. Lbs.)	Tightening Sequence Courtesy of CHRYSLER GROUP, LLC
Transmission Oil Pan Drain Plug	9 N.m (80 In. Lbs.)	-

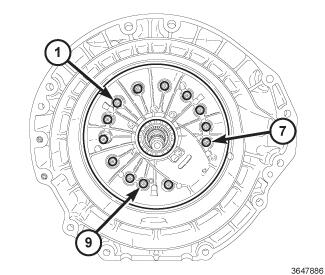

Transmission Oil Pump Assembly to Case Bolts	Torque Procedure: In order to seat the oil pump cover properly, pre tighten bolts one, seven and nine to 6 N.m (53 in. lb.) . Working in a clockwise pattern, beginning with number one, tighten to 10 N.m (89 in. lb.) . Working in a clockwise pattern, beginning with number one, tighten an 90° .	If removed, NEW fasteners must be installed and tightened to specifications. Courtesy of CHRYSLER GROUP, LLC
Transmission Oil Pump Housing to Cover Bolt	5 N.m (44 In. Lbs.) + 45°	If removed, NEW fasteners must be installed and tightened to specifications.
Valve Body Bolt	8 N. m (71 In. Lbs.)	Tightening Sequence Courtesy of CHRYSLER GROUP, LLC
