TORQUE SPECIFICATIONS - DRIVESHAFTS

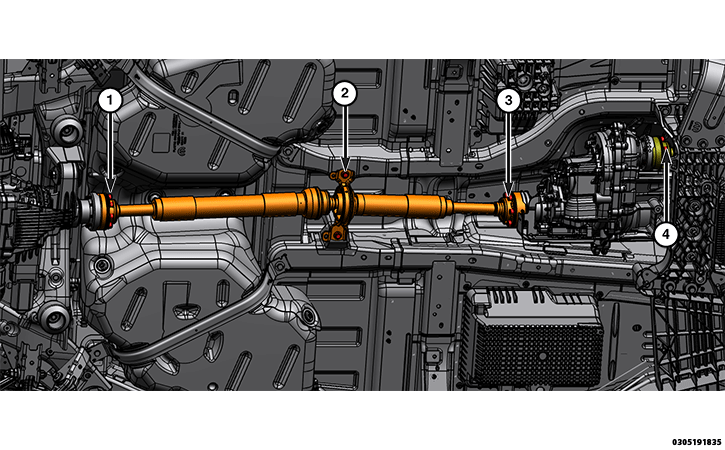

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Rear Driveshaft to Rear Pinion Flange Bolts | 56 N.m (41 Ft. Lbs.) | If removed, NEW bolts must be installed and tightened to specifications |
| 2 | Rear Driveshaft Center Support Bearing Bolts | 55 N.m (41 Ft. Lbs.) | If removed, NEW bolts must be installed and tightened to specifications |
| 3 | Rear Driveshaft to Transfer Case Flange Bolts | 56 N.m (41 Ft. Lbs.) | If removed, NEW bolts must be installed and tightened to specifications |
| 4 | Front Driveshaft to Transfer Case Flange Bolts | 56 N.m (41 Ft. Lbs.) | If removed, NEW bolts must be installed and tightened to specifications |
