EGR Tube: Removal
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE
.

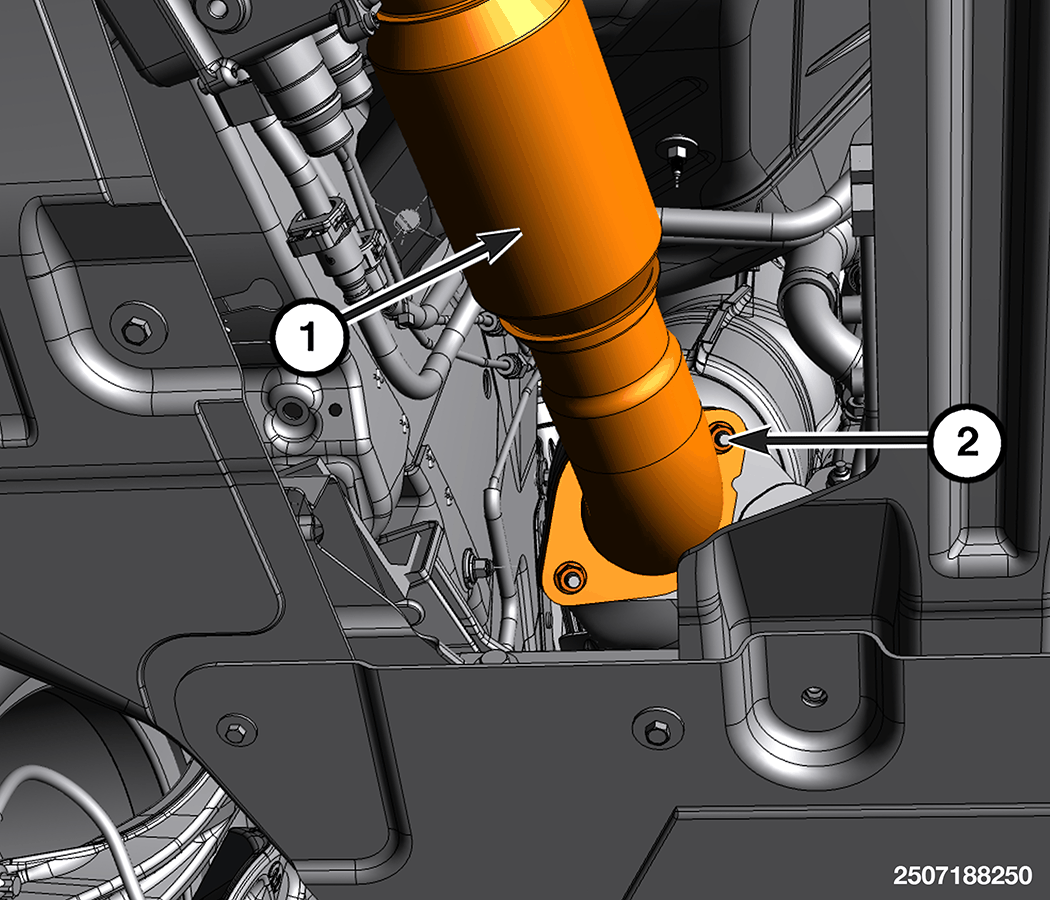

1 - Exhaust Pipe 2 - Exhaust Pipe Nuts - Remove the bolts securing the exhaust pipe to the catalytic converter and position aside.

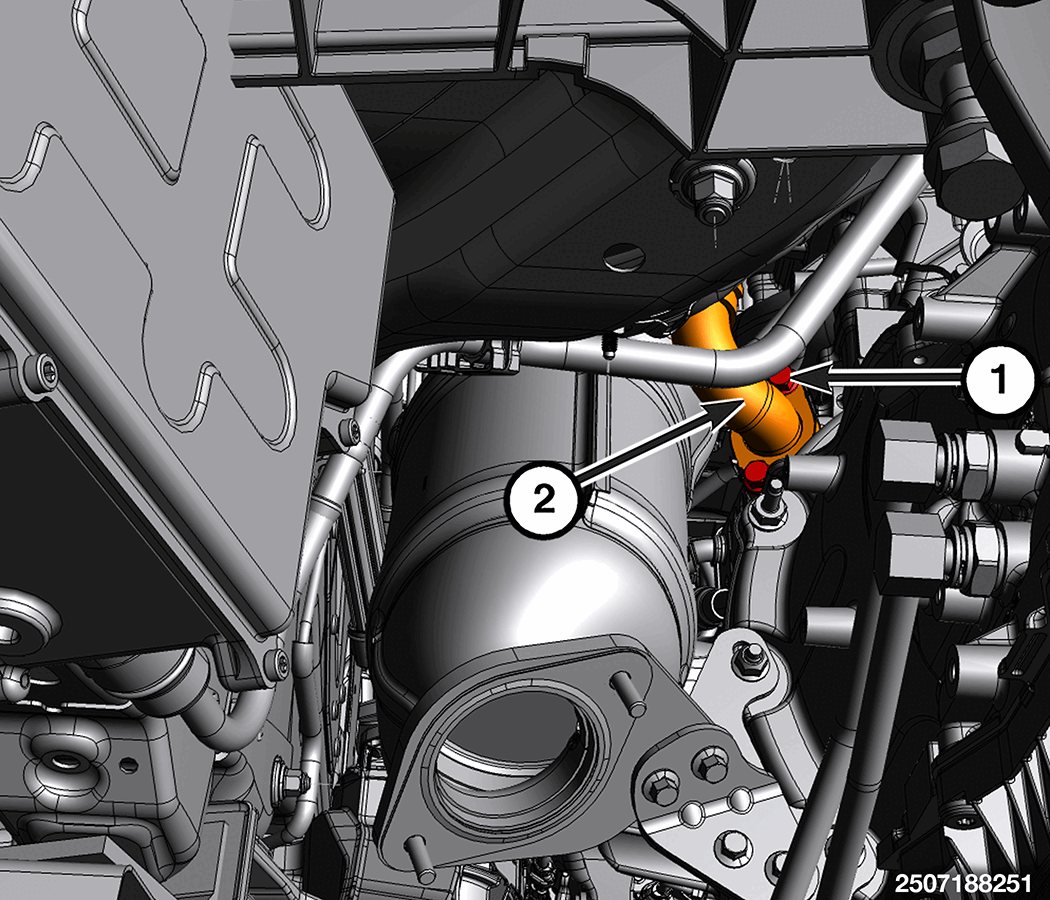

1 - EGR Tube Bolts 2 - EGR Tube - Remove the bolts securing the Exhaust Gas Recirculation (EGR) tube to the EGR cooler.
- Remove the support and lower the vehicle
- Remove the cowl extension silencer. Refer to SILENCER, COWL EXTENSION, REMOVAL AND INSTALLATION
.

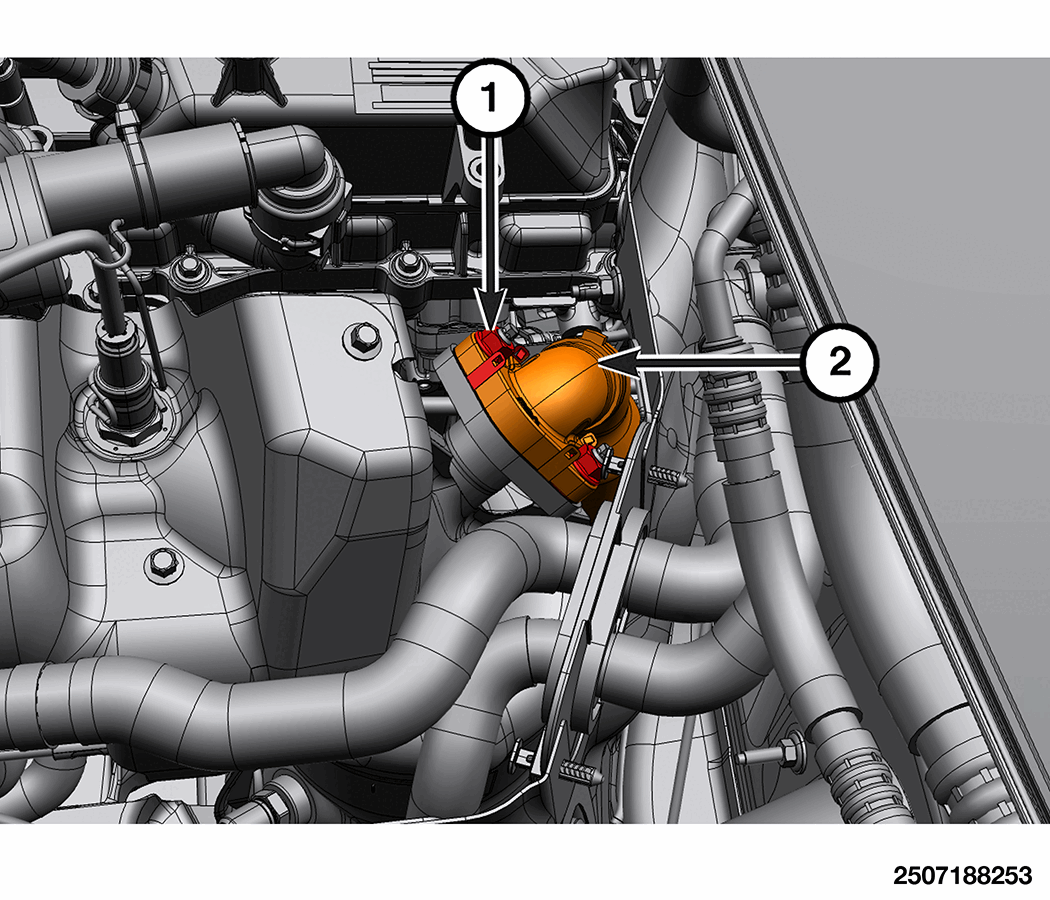

1 - EGR Tube Nuts 2 - EGR Tube - Remove the nuts securing the EGR tube to the catalytic converter and remove the tube from the vehicle.
