EGR System
WARNING: This page is about a different variant/trim than selected.

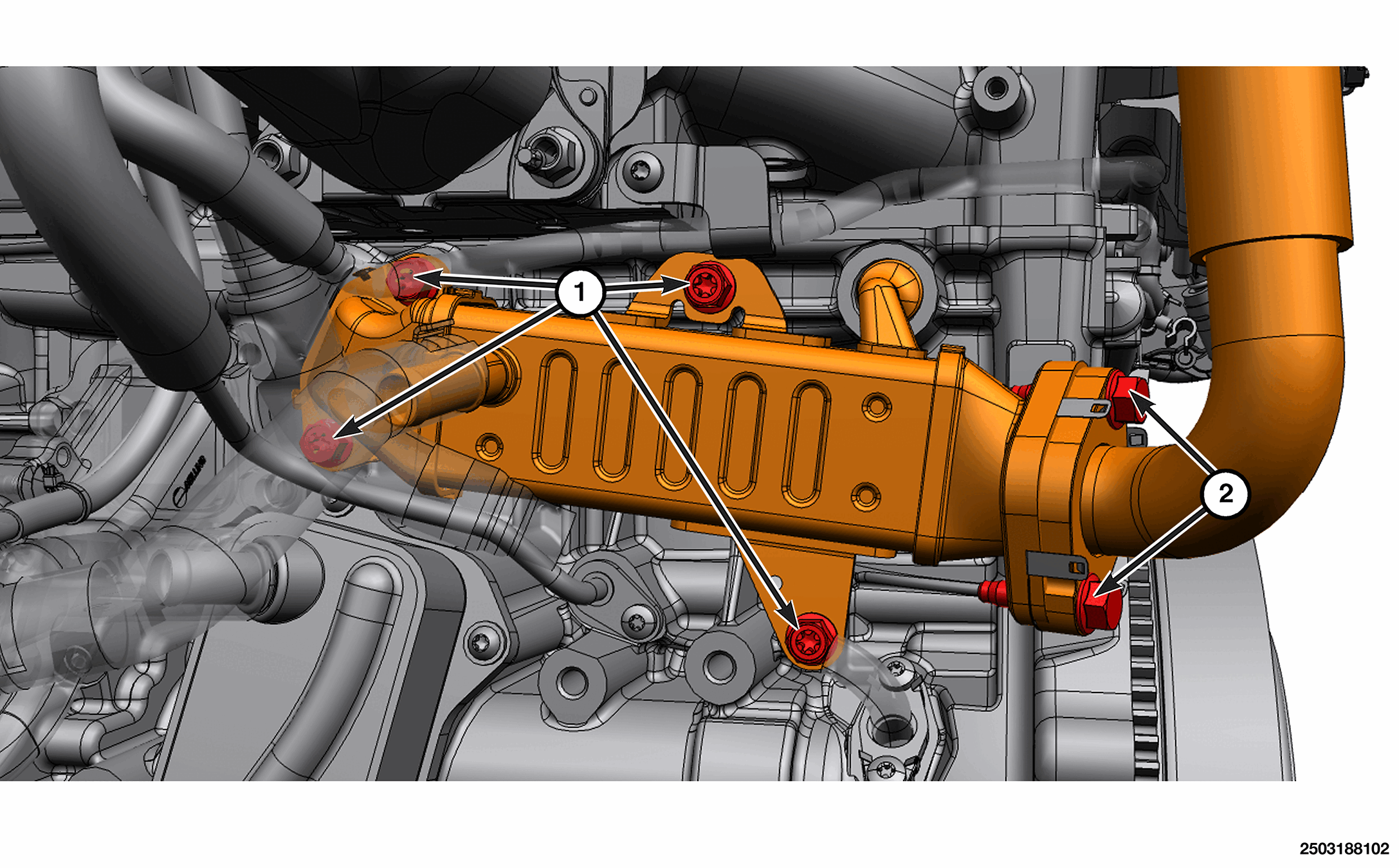

TORQUE SPECIFICATIONS - EGR SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | EGR Cooler To Cylinder Block | 25 N.m (18 Ft. Lbs.) | - |
| 2 | EGR Pipe To EGR Cooler | 30 N.m (22 Ft. Lbs.) | - |

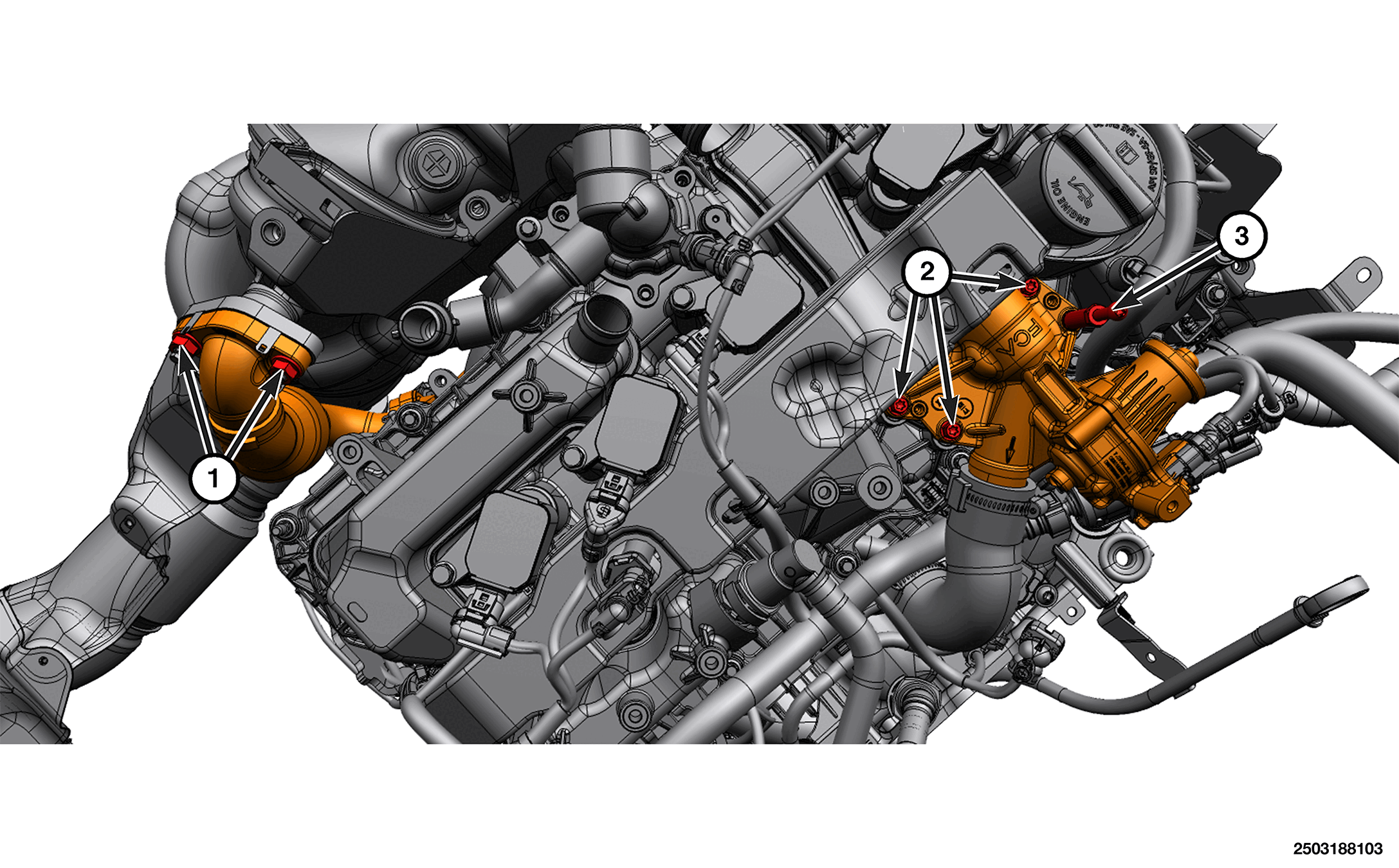

TORQUE SPECIFICATIONS - EGR SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | EGR Pipe To Catalyst | 19 N.m (14 Ft. Lbs.) | - |
| 2 | EGR Valve To Valve Cover | 11 N.m (8 Ft. Lbs.) | - |
| 3 | Engine Cover Mounting Stud | 11 N.m (8 Ft. Lbs.) | - |
