Torque Specifications - EVAP Emissions
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

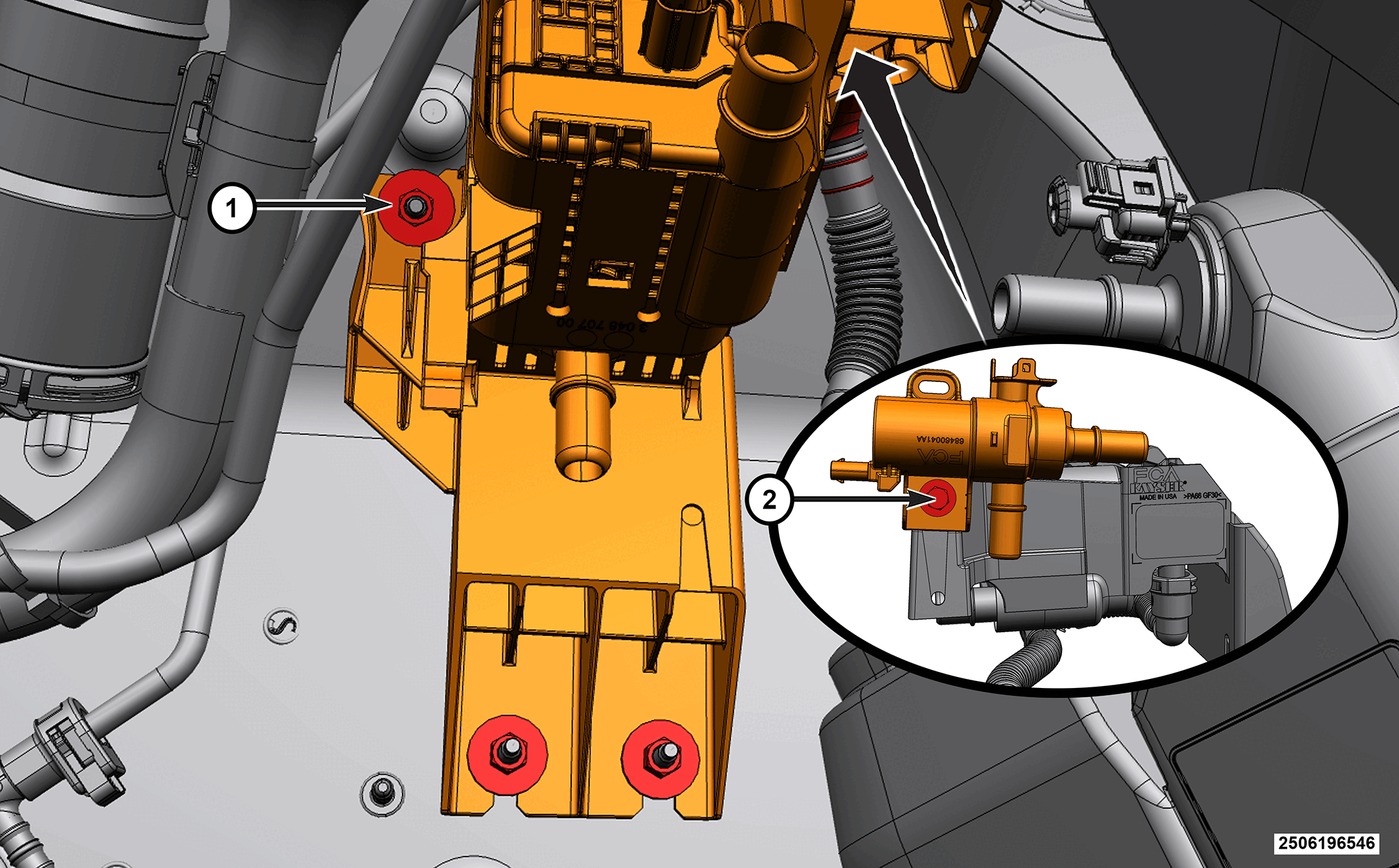

TORQUE SPECIFICATIONS - EVAP EMISSIONS
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENTS |
| 1 |
Electronic Leak Check Module (ELCM) Bracket Nuts |
8 N.m (71 In. Lbs.) |
- |
| 2 |
Fuel Tank Isolation Valve to Bracket |
7 N.m (53 In. Lbs.) |
- |
| - |
Crankcase Pressure Sensor Bolt |
6 N.m (53 In. Lbs.) |
- |
