Diagnostic Overview - EVAP Emissions - PHEV

WARNING: This page is about a different variant/trim than selected.

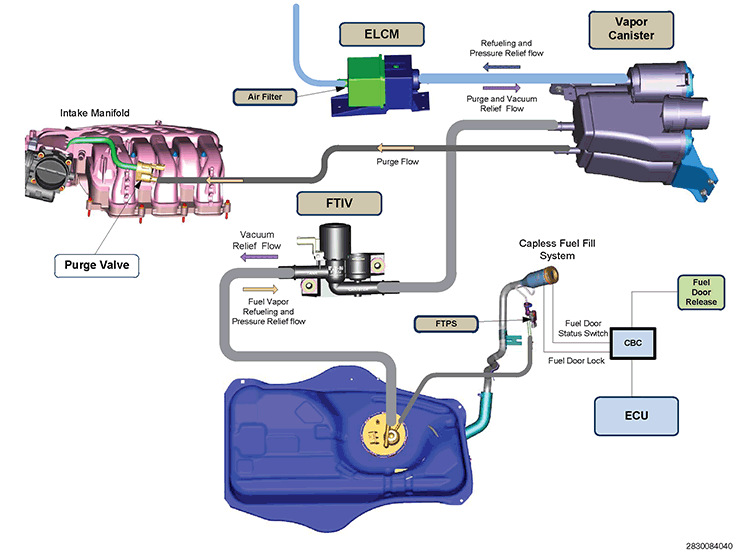

GC0202075Courtesy of CHRYSLER GROUP, LLC

The Evaporative Non-Integrated Leak Monitor (ENILM) diagnostics are performed in the engine off (after run) state.  The diagnostic will run after the ignition is off for 6 hours. The reason for the wait time is that there are cases where the Fuel Tank pressure increases greatly after ignition off (due to high temperatures) and is too large for the vacuum pump in the Evaporative Leak Check Module (ELCM) to make the pressure negative. This could cause a false failure during small leak testing. After the calibrated wait time the Powertrain Control Module (PCM) will initiate the Evaporative System small leak diagnostic. The ELCM and the Fuel Tank Isolation Valve (FTIV) are key components used in diagnosing the system. Refer to the Description and Operation of the ELCM and the FTIV for more specific details on how the components function for diagnostics. Refer to EMISSIONS CONTROL / EVAPORATIVE EMISSIONS / DESCRIPTION AND OPERATION .

There are a series of phases to the small leak diagnostics. The figures below are a flow chart and graph of the entire diagnostic test timing. Each individual phase of the diagnostic is described in detail below the figures.

NOTE:

It is important to note that if a DTC is detected (other than the small leak or large leak DTCs) during any phase of this diagnostic, the DTC will be recorded and the diagnostic test is aborted at that point.

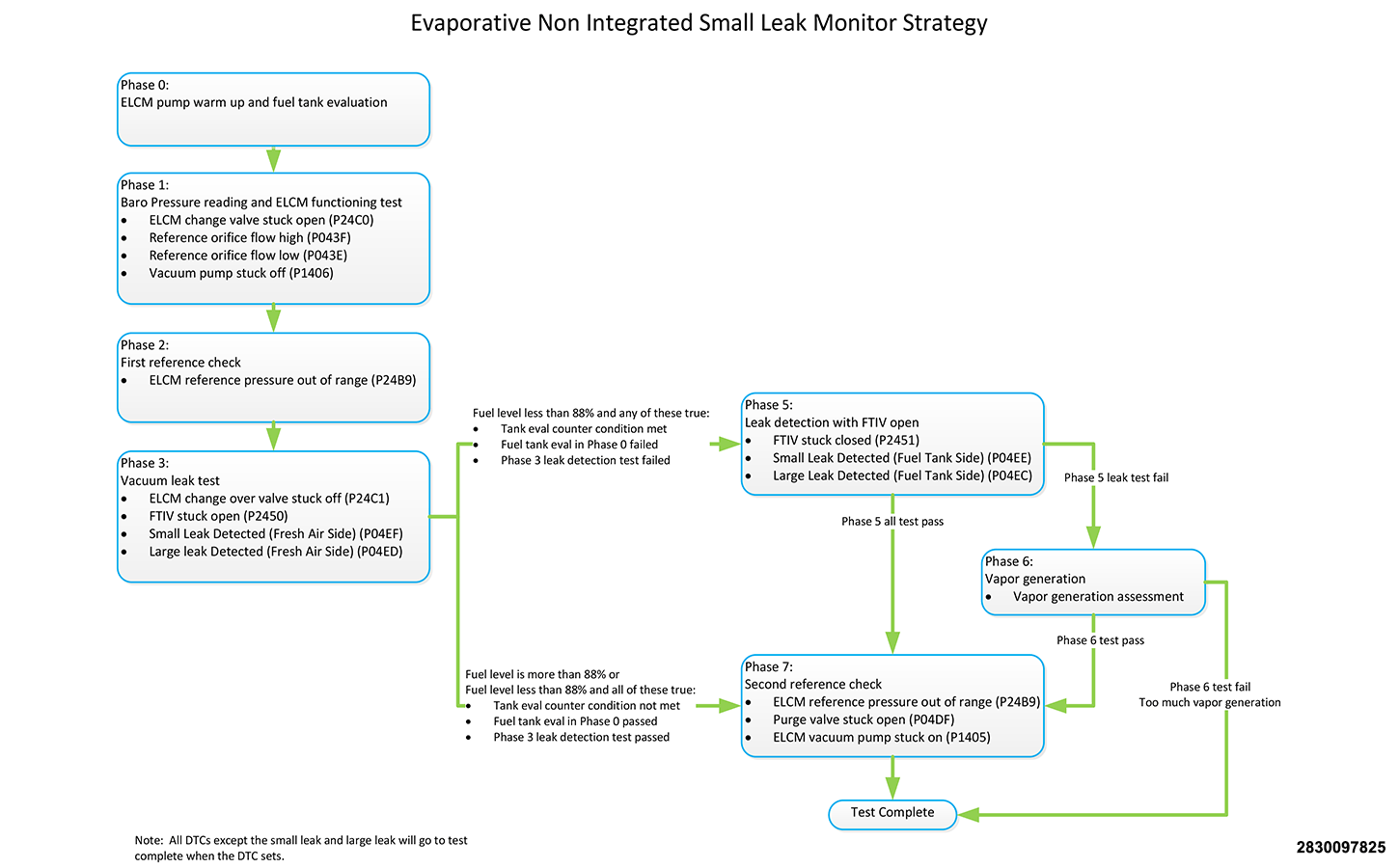

GC0202297Courtesy of CHRYSLER GROUP, LLC

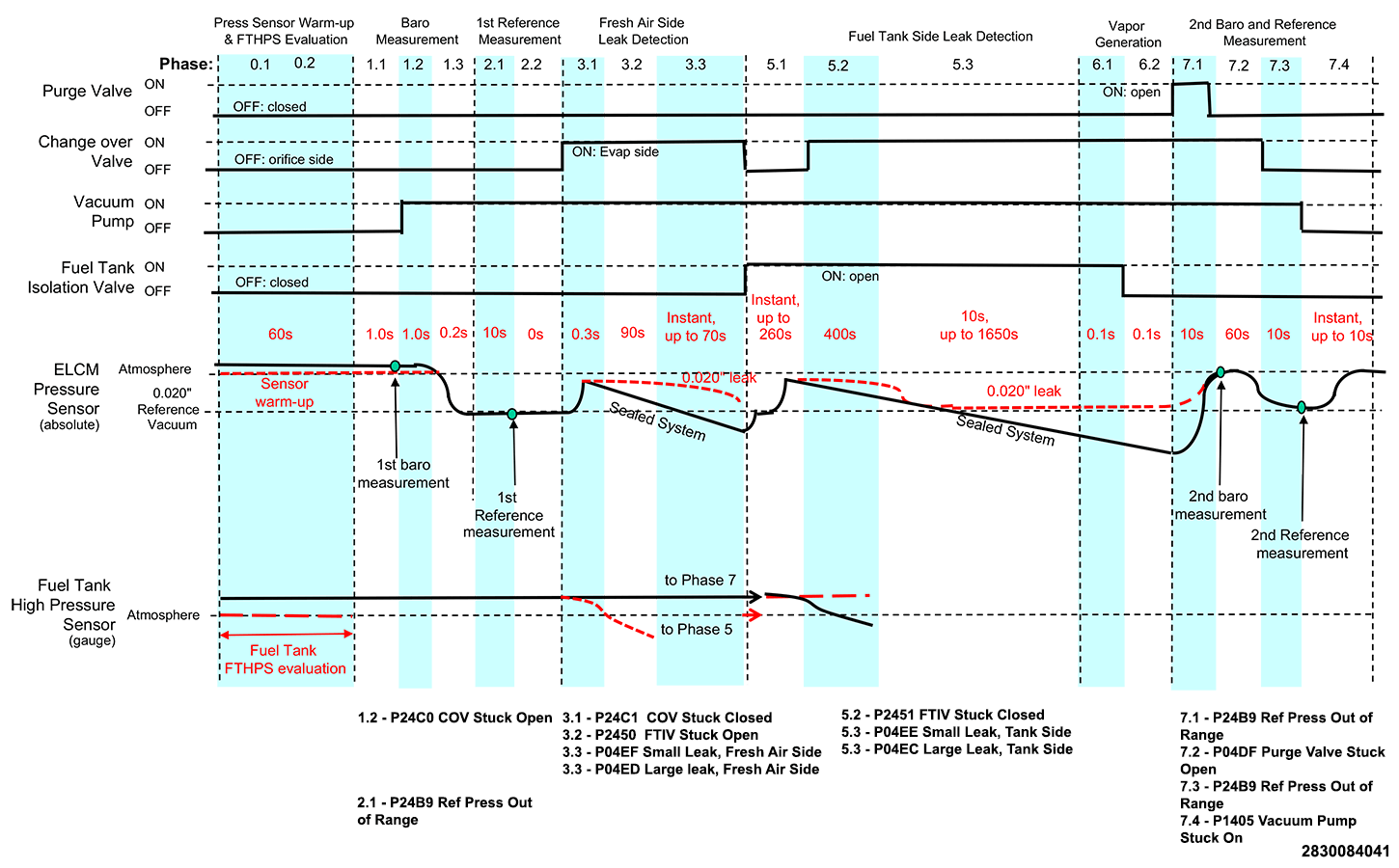

GC0202193Courtesy of CHRYSLER GROUP, LLC

Phase 0: Before any components are commanded on, the Fuel Tank side of the system is evaluated for a leak and the Fuel Tank Pressure (FTP) Sensor reading rationality is checked.  The FTP Sensor signal is monitored for one minute. If the pressure reading is within the calibrated minimum and maximum thresholds, relatively steady, and not equal to atmospheric pressure, then the PCM assumes that the Fuel Tank side of the system is sealed and the FTP Sensor reading is valid. The Fuel Tank Evaluation Counter will increment one count. This counter will factor in to the direction of the diagnostic following phase 3. After the counter reaches a calibrated threshold, the diagnostic will continue on to phase 5, open the FTIV and test the entire system for a leak, regardless of the results in phases 0 - 3. This is done as a confirmation that the Fuel Tank side of the system is indeed sealed and the FTP Sensor is accurate.

Phase 1: The diagnostic will check the 0.020" Reference Orifice for too much or too little flow, a Change-Over Valve that is stuck open, and an ELCM Vacuum Pump that is stuck off.  During phase 1 the PCM takes an initial atmospheric pressure (BARO) reading from the ELCM Pressure Sensor. The Change-Over Valve inside the ELCM remains closed (the Change-Over Valve is vented to atmosphere at this time), isolating the ELCM from the rest of the Evaporative System, and the ELCM Vacuum Pump is turned on. During this time the ELCM is drawing outside air through an internal 0.020" orifice only. This is done to determine a baseline pass/fail criteria for the small leak check.

Phase 2: The ELCM Pressure Sensor rationality is checked.  After the previous diagnostic passes, the baseline 0.020" reference pressure reading from the ELCM Pressure Sensor is compared to a known good threshold and adjusted for the current atmospheric pressure (BARO) reading. Review the table below for an example of the calibrated pressure limits based on BARO. The values in the chart showing the upper and lower limit specifications are approximate values used for informational value only.

Readings Taken psi (kpa) psi (kpa) psi (kpa) psi (kpa)
Atmospheric Pressure (BARO) 10.15 (70) 11.6 (80) 13.05 (90) 14.5 (100)
0.020" Reference Pressure Upper Limit -0.585 (-4.04) -0.599 (-4.13) -0.61 (-4.21) -0.619 (-4.27)
0.020" Reference Pressure Lower Limit -0.14 (-0.95) -0.15 (-1.04) -0.165 (-1.14) -0.18 (-1.24)

Phase 3: The diagnostic checks the fresh air side of the system for a leak, the Change-Over Valve for a stuck off (closed) condition and the FTIV for a stuck open condition.

NOTE:

At this time the FTIV should be closed, dividing the system in two, so that only the fresh air side of the system is being tested for a leak.

Phase 4: A determination is made of the system.

Phase 5: The diagnostic checks the Fuel Tank side of the system for a leak and the FTIV for a stuck closed condition.

If the leak test fails  in Phase 5, the diagnostic continues to Phase 6. If all tests pass  in Phase 5, the diagnostic skips to Phase 7.

Phase 6: The FTIV is turned off (closed) and the Fuel Tank Pressure is monitored for vapor generation.  This is performed because, as mentioned at the beginning, excessive system pressure that is too large for the ELCM Vacuum Pump to create vacuum can cause a false failure of the system.

Phase 7: The diagnostic validates the leak check, checks for the Purge Solenoid stuck open and the ELCM Vacuum Pump stuck on.  The Purge Solenoid is opened shortly to vent system vacuum through the engine and then closed again. The PCM also performs a second BARO check with the Purge Solenoid open. Shortly after the Purge Solenoid closes, the Change-Over Valve is turned off (closed) and a second 0.020" Reference Orifice check is performed and compared to the first check for validation.
