Muffler Heat Shield SWB: Removal
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the exhaust muffler. Refer to
MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .

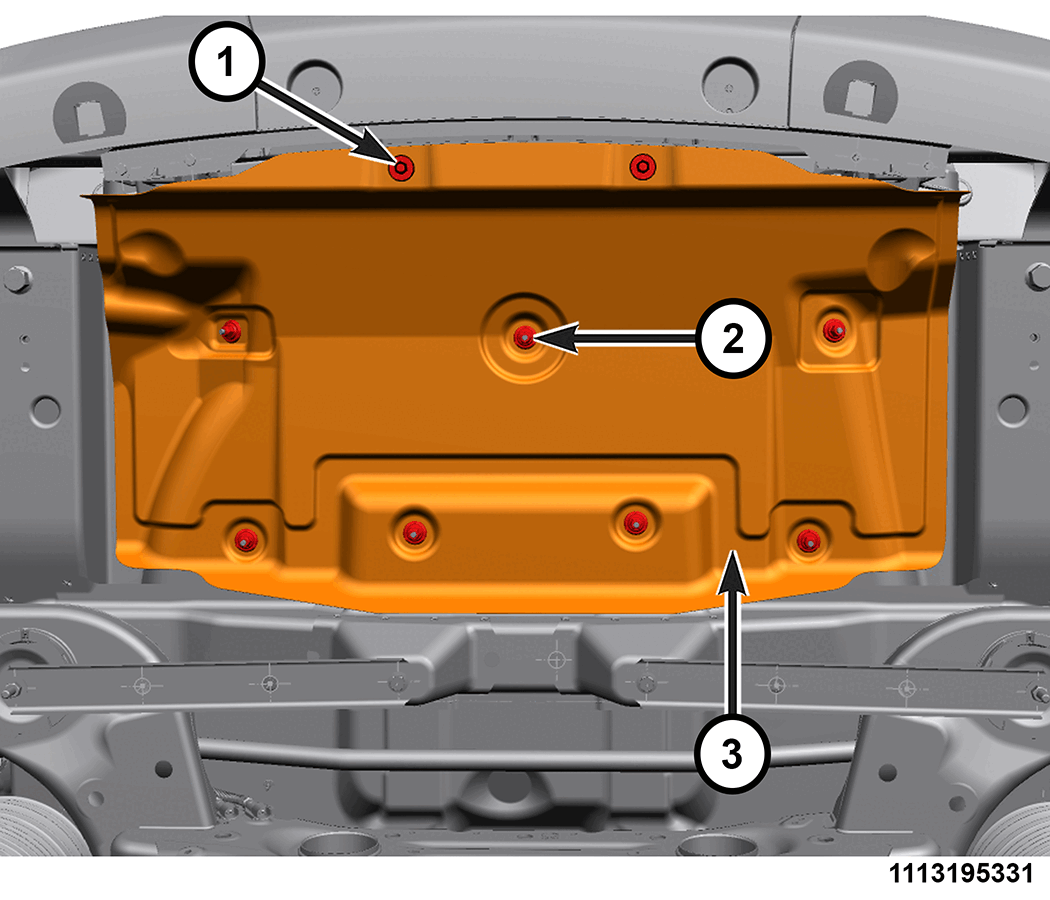

1 - Heat Shield Bolts 2 - Heat Shield Nuts 3 - Muffler Heat Shield - Remove the nuts, bolts and the muffler heat shield.
