Exhaust Muffler SWB: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the front belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .

Saturate the clamp nuts with Mopar® Rust Inhibitor. Allow 5 minutes for penetration.

GC0201537

Courtesy of CHRYSLER GROUP, LLC

1 - Outer Bolts

2 - Inner Bolts

3 - Impact Brace

Remove the impact bracket inner bolts, outer bolts, and the impact bracket.

Courtesy of CHRYSLER GROUP, LLC

1 - Catalytic Converter to Exhaust Manifold Bolts

2 - Catalytic Converter
Remove the right catalytic converter to exhaust manifold bolts.

Courtesy of CHRYSLER GROUP, LLC

1 - Catalytic Converter to Exhaust Manifold Bolts

2 - Catalytic Converter

Remove the left catalytic convertor to exhaust manifold bolts.

GC0200788

Courtesy of CHRYSLER GROUP, LLC

1 - Left Exhaust Muffler Clamp Nut

2 - Exhaust Isolator Bolt

3 - Right Exhaust Muffler Clamp Nut

4 - Exhaust Isolator Bolt

Loosen the left and right exhaust muffler clamp nuts.
Support the exhaust system with a suitable stand.
Remove the left and right exhaust isolator bolts.
Separate the left catalytic convertor from the resonator.
Separate the right catalytic convertor from the resonator.

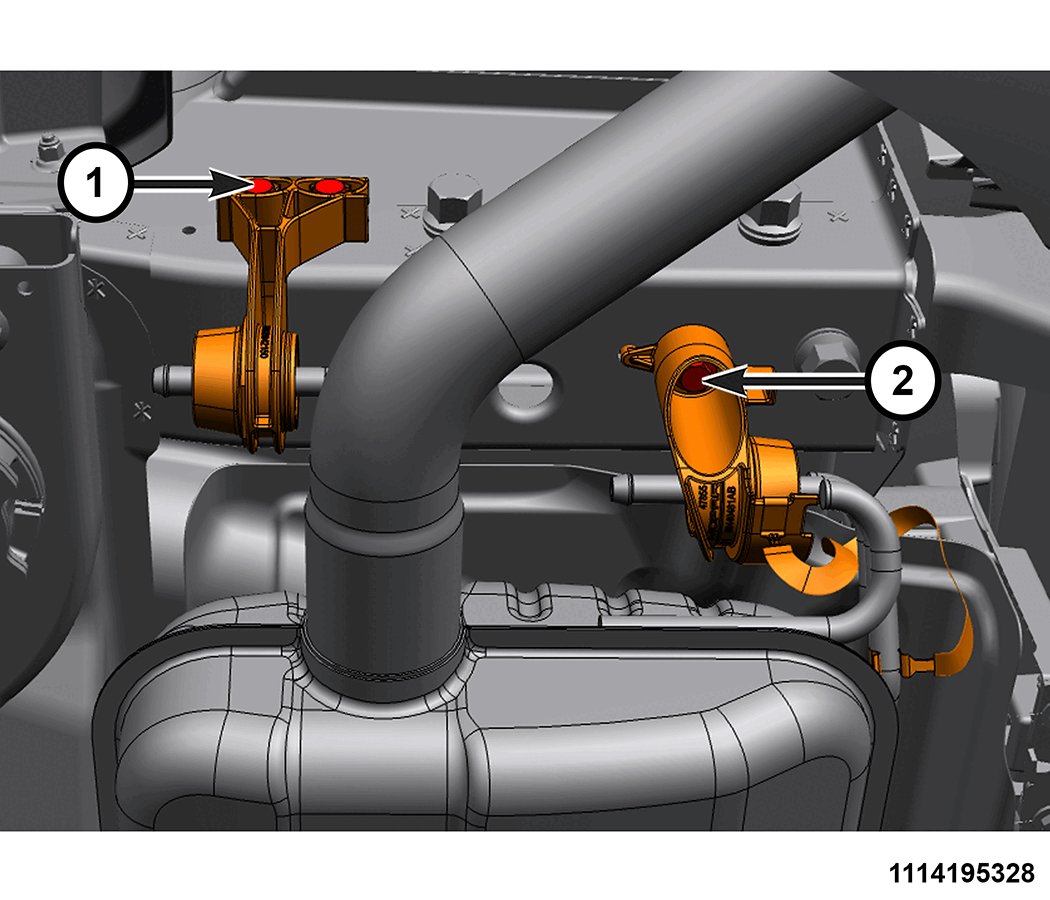

Courtesy of CHRYSLER GROUP, LLC

1 - Front Exhaust Isolator Bolts

2 - Rear Exhaust Isolator Bolt

NOTE:
It is not necessary to remove the ground strap, unless the exhaust isolator is being replaced.
Remove the left front exhaust isolator bolts.
Remove the left rear exhaust isolator bolt.

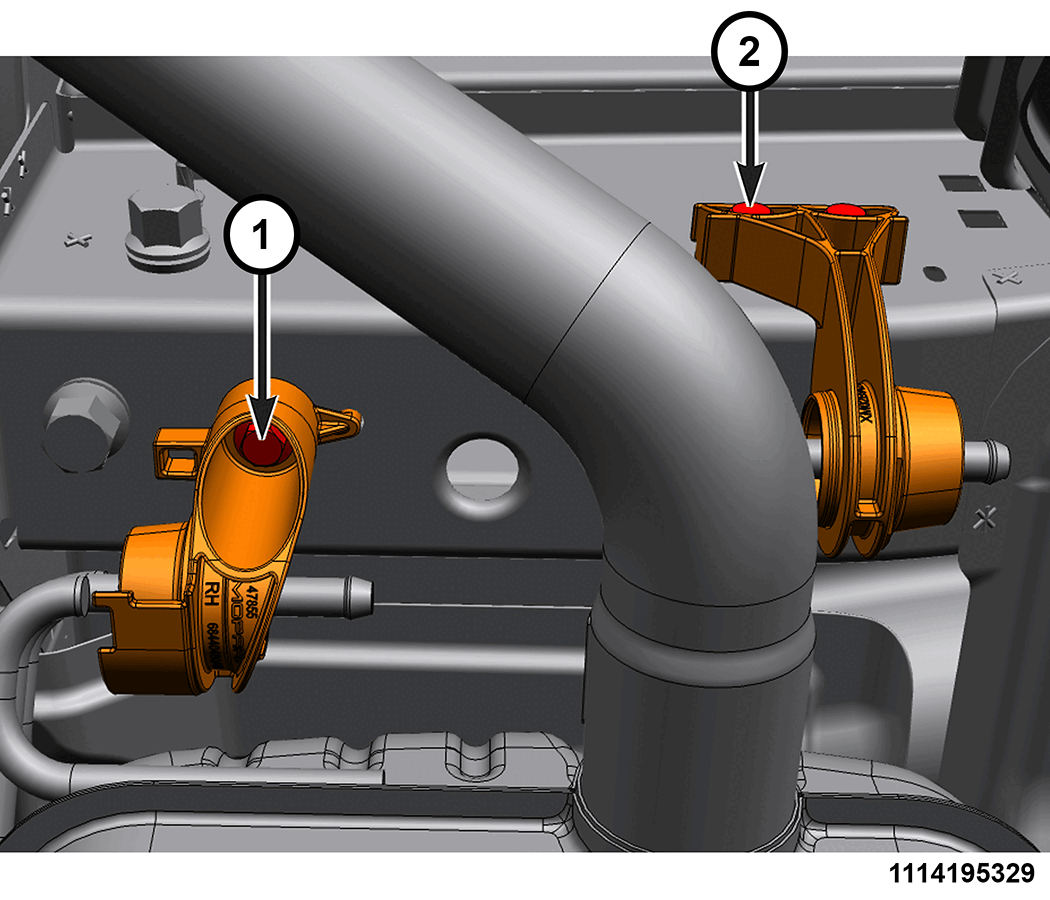

Courtesy of CHRYSLER GROUP, LLC

1 - Front Exhaust Isolator Bolt

2 - Rear Exhaust Isolator Bolts
Remove the right front exhaust isolator bolt.
Remove the right rear exhaust isolator bolts.

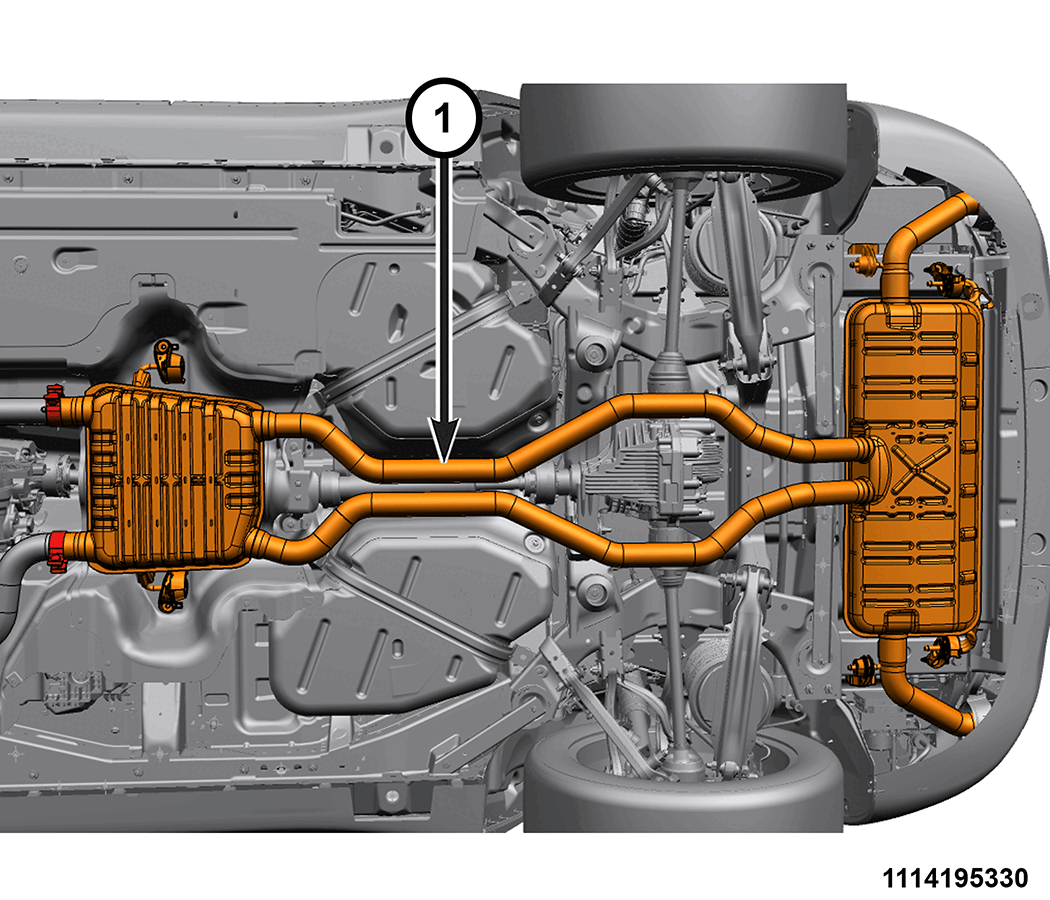

Courtesy of CHRYSLER GROUP, LLC

1 - Exhaust Muffler

NOTE:
Exhaust muffler removal is a two-person operation.
With the help of an assistant, remove the exhaust muffler.
