Removal And Installation: Right: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the generator. Refer to GENERATOR - 5.7L .
  2. Remove the front drive shaft. Refer to REMOVAL AND INSTALLATION .
  3. Temporarily install the transmission crossmember.

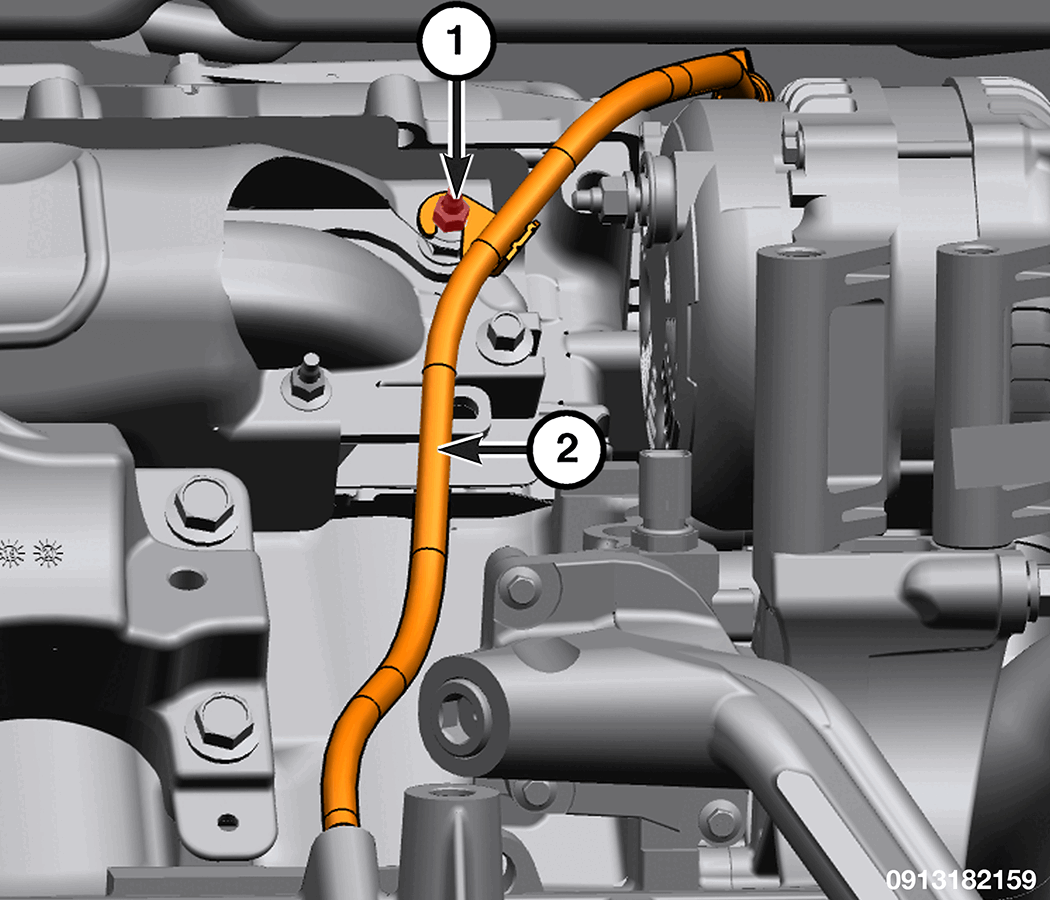

    GC0201501Courtesy of CHRYSLER GROUP, LLC
    1 - Oil Dipstick Tube Nut
    2 - Oil Dipstick Tube
  4. Remove the oil dipstick tube nut and the oil dipstick tube.
  5. Remove the right catalytic convertor. Refer to CONVERTER, CATALYTIC, REMOVAL  .

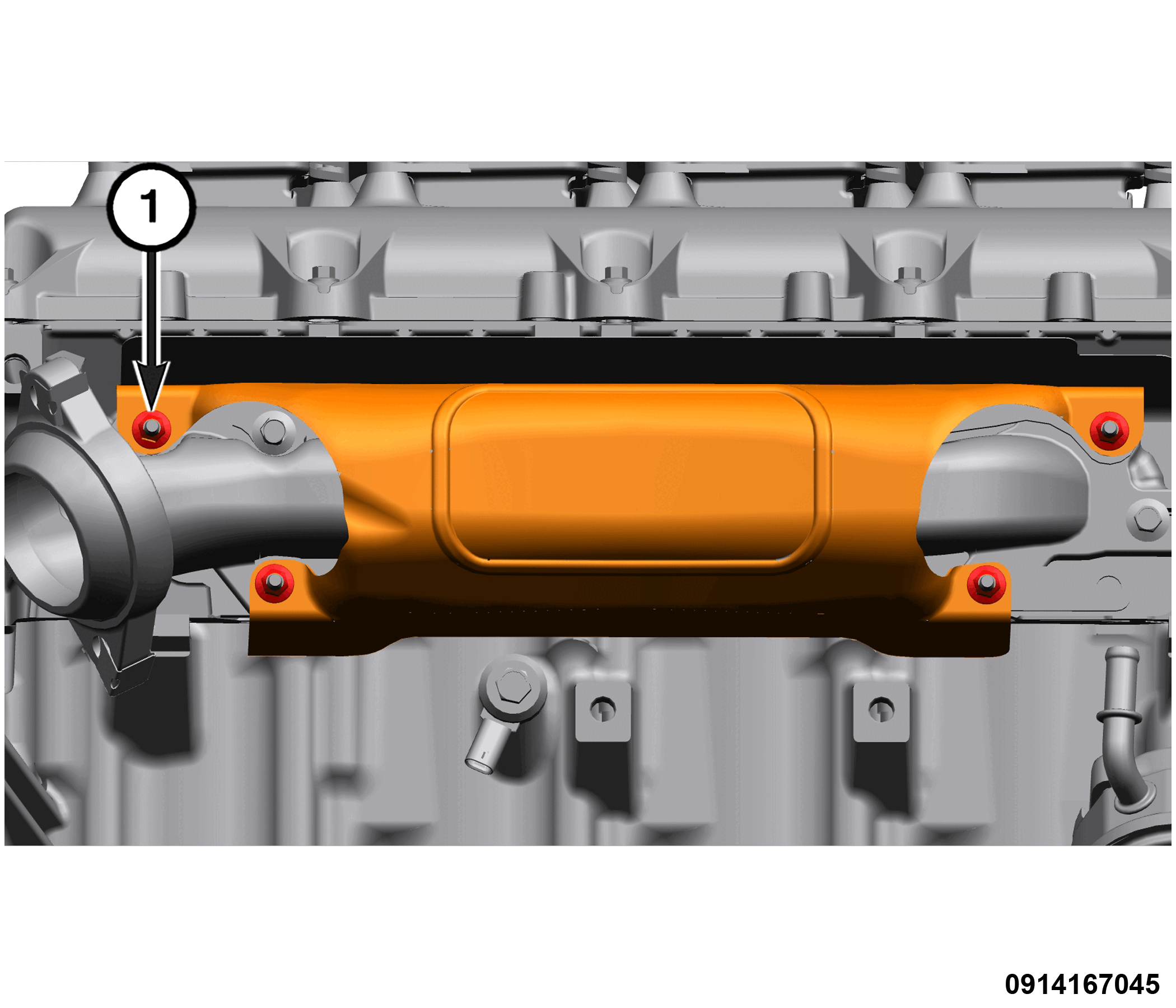

    GC0191242Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Manifold Heat Shield Nuts
  6. Remove the exhaust manifold heat shield nuts and the exhaust manifold heat shield.

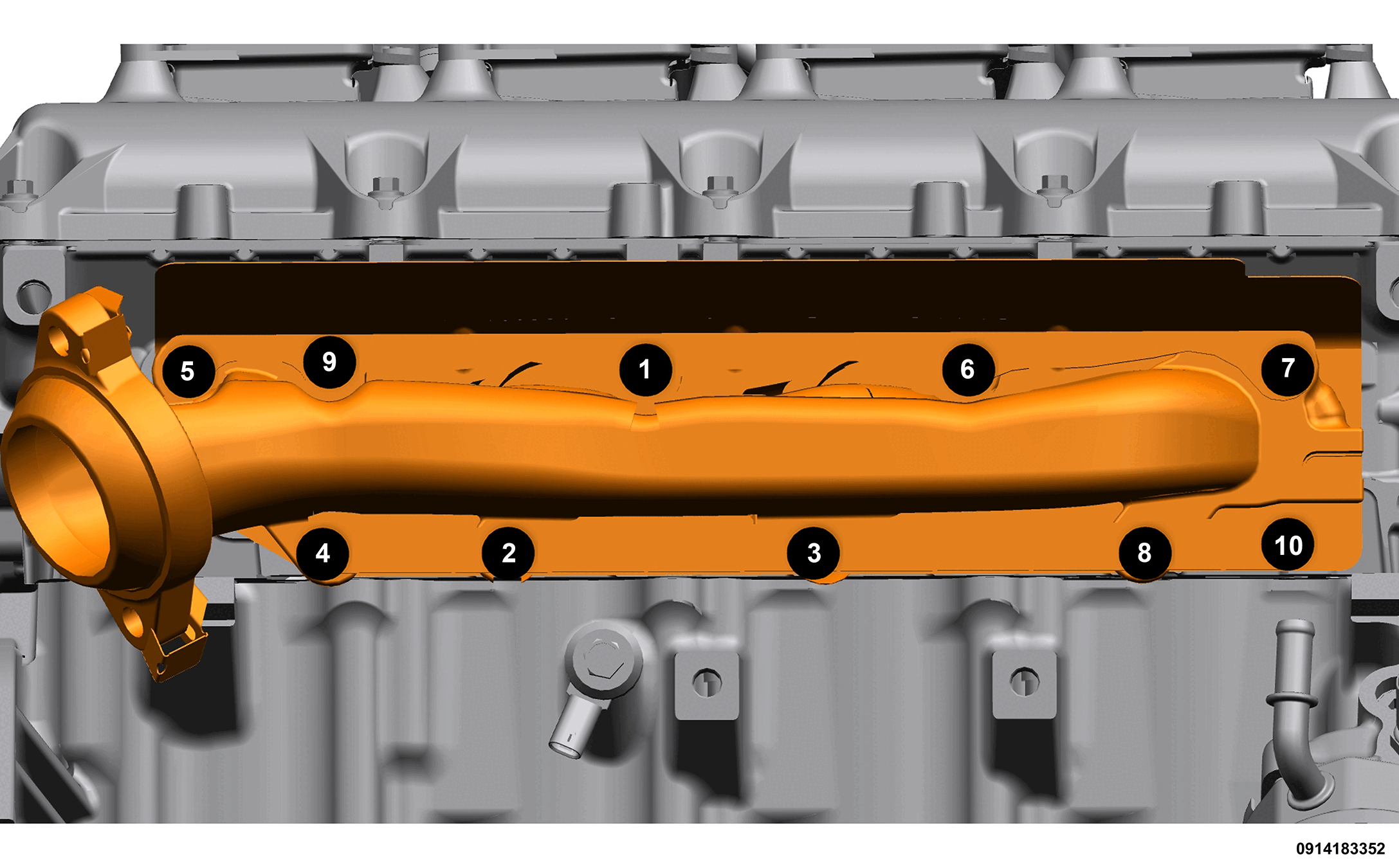

    Fig 1: Right Exhaust Manifold Bolts Loosening Sequence
    GC0202000Courtesy of CHRYSLER GROUP, LLC
    Exhaust Manifold Bolt Sequence
    NOTE:

    All fasteners removed must be installed in the same location they were removed from.

  7. Remove the front exhaust manifold bolts.
  8. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  9. Remove the rear exhaust manifold bolts.
  10. Lower the vehicle.
  11. Remove the exhaust manifold and gasket.
  12. Inspect the exhaust manifold for any damage. Refer to INSPECTION .
  13. Clean the mating surfaces.
