Removal And Installation: Left: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the intake air tube. Refer to TUBE, INTAKE AIR, REMOVAL AND INSTALLATION, 5.7L .
- Remove the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION, 5.7L .
- Remove the intermediate shaft. Refer to SHAFT, INTERMEDIATE, REMOVAL AND INSTALLATION .
- Remove the left catalytic converter assembly. Refer to LEFT CATALYTIC CONVERTER .
- Remove the exhaust manifold heat shield nuts and the exhaust manifold heat shield.

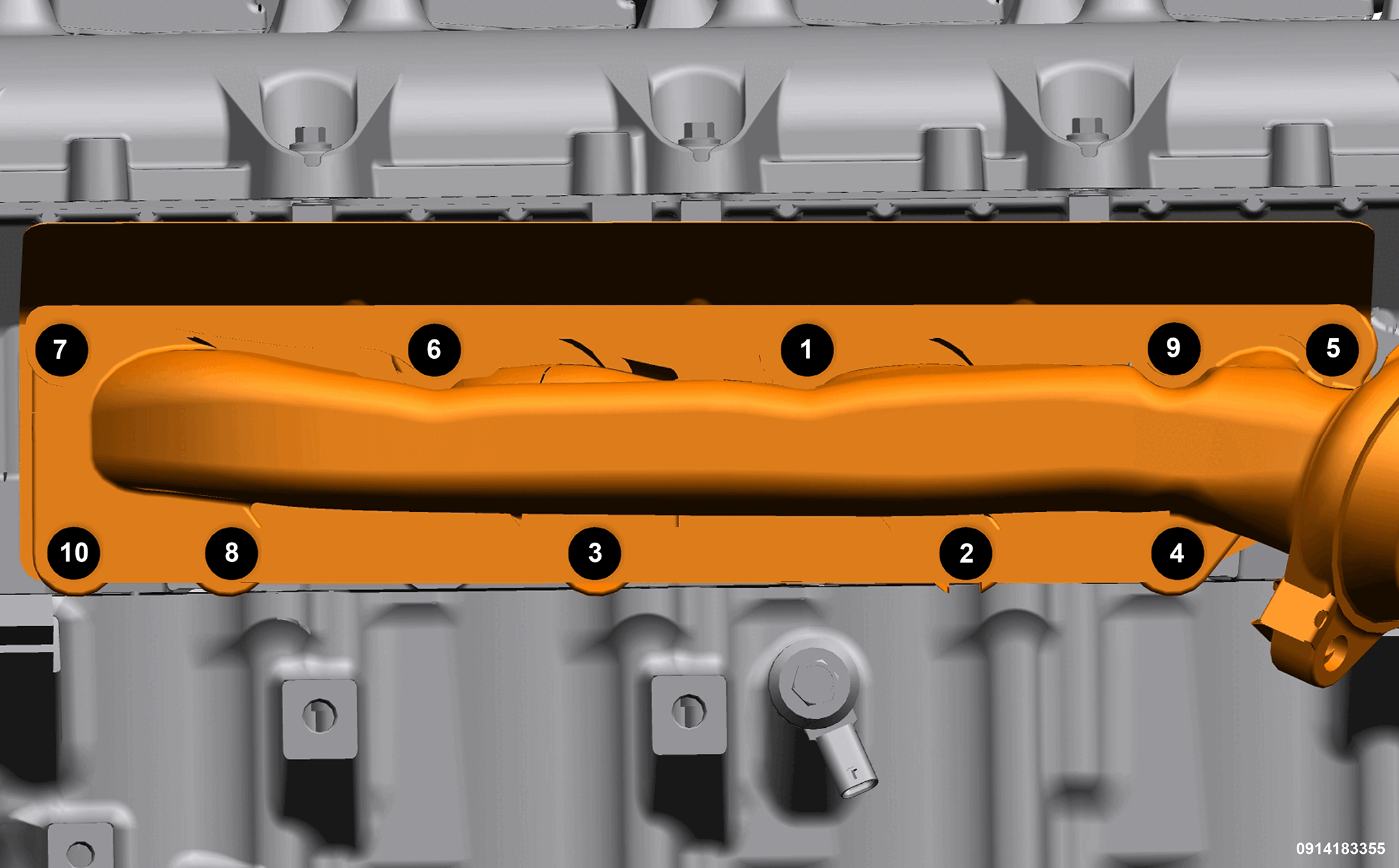

Exhaust Manifold Bolt Sequence NOTE:All fasteners must be installed in the same location they were removed from.
- Using the sequence shown, remove the exhaust manifold bolts.
- Remove the exhaust manifold and gasket.
- Inspect the exhaust manifold for any damage. Refer to INSPECTION .
- Clean the mating surfaces.
