Torque Specifications - Lubrication
WARNING: This page is about a different variant/trim than selected.

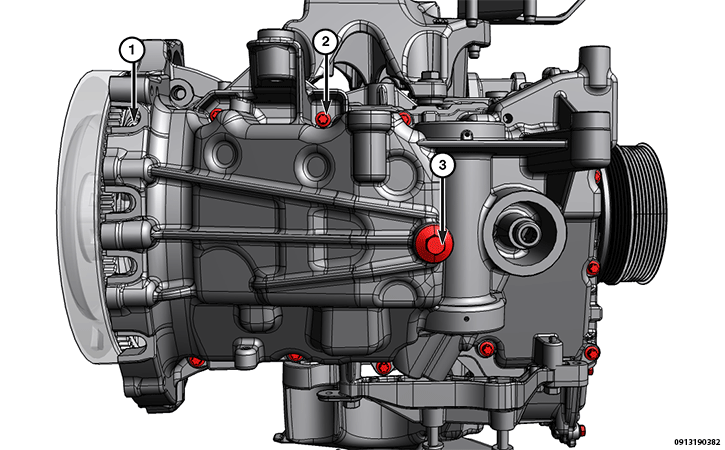

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1, 2 | Oil Pan Bolts M6 Oil Pan Bolts M8 Oil Pan Bolts M10 |
10 N.m (89 In. Lbs.) 25 N.m (18 Ft. Lbs.) 60 N.m (44 Ft. Lbs.) |

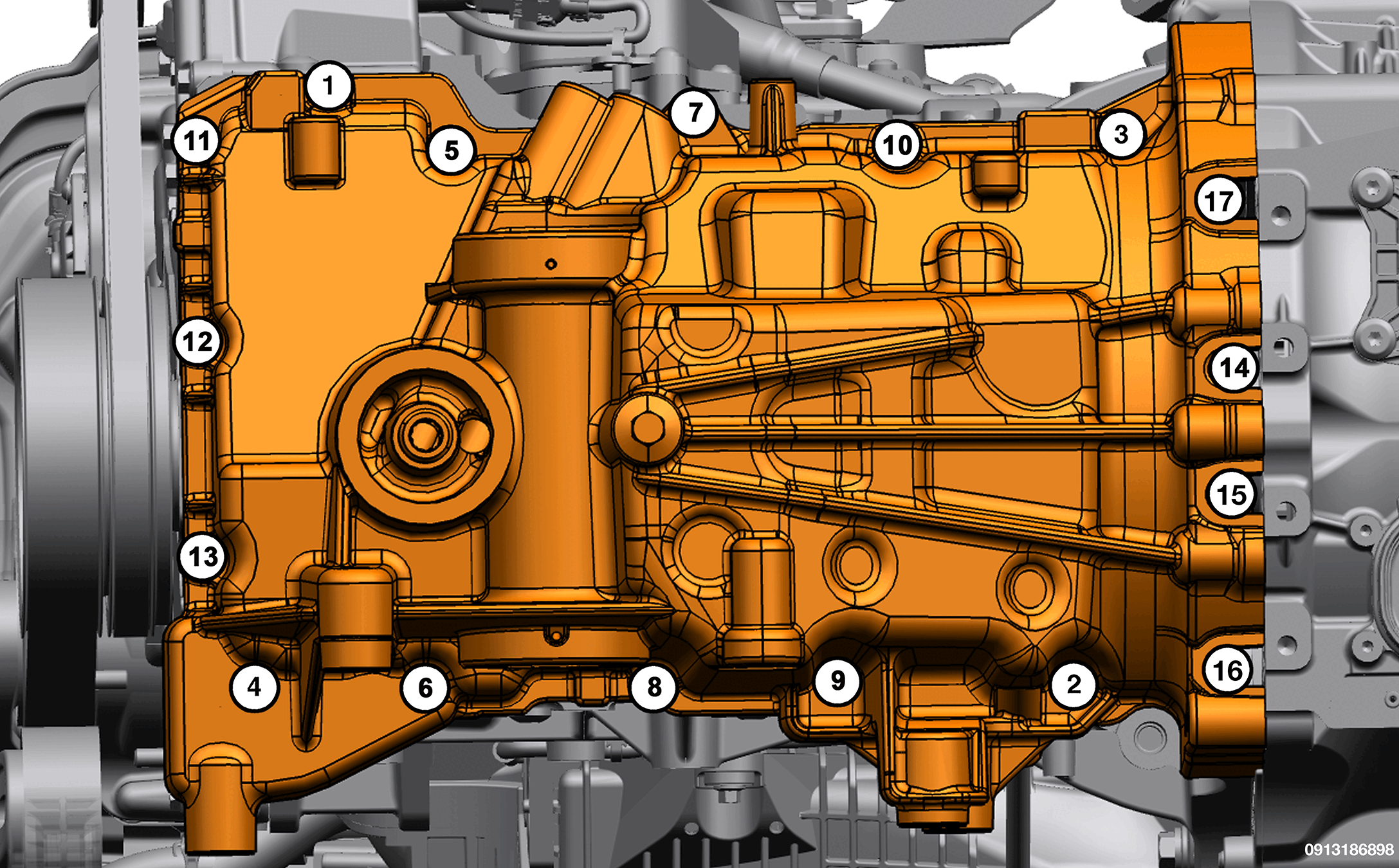

Tightening sequence |
| 3 | Engine Oil Drain M14 Plug | 27 N.m (20 Ft. Lbs.) | - |

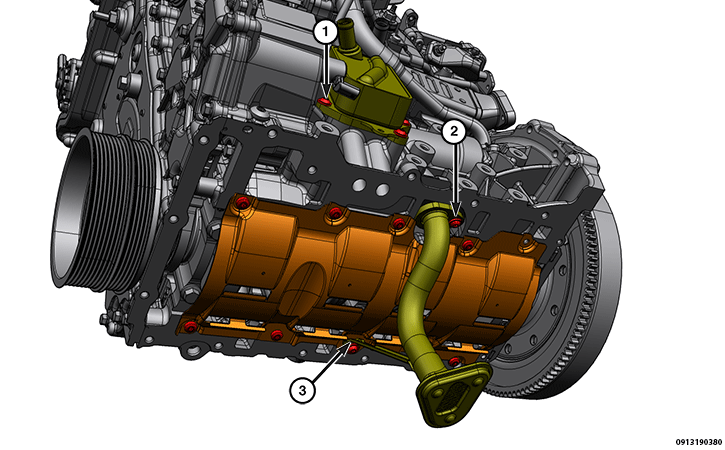

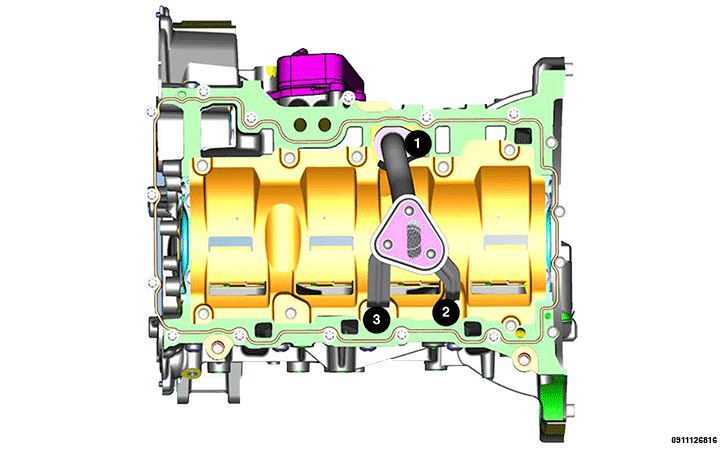

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|

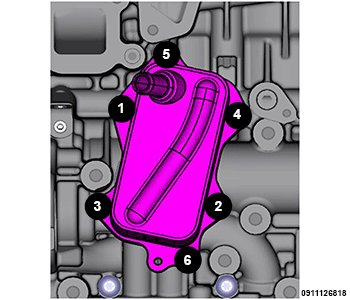

| 1 | Engine Oil Cooler M6 Bolts | 12 N.m (9 Ft. Lbs.) | Tightening Sequence Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 2 | Oil Pick-up Tube | 11 N.m (8 Ft. Lbs.) | Tightening Sequence |

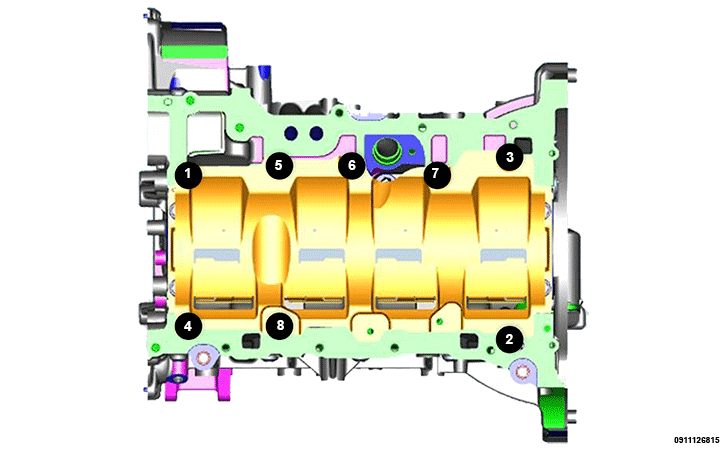

| 3 | Windage Tray | 10 N.m (89 In. Lbs.) | Tightening Sequence |

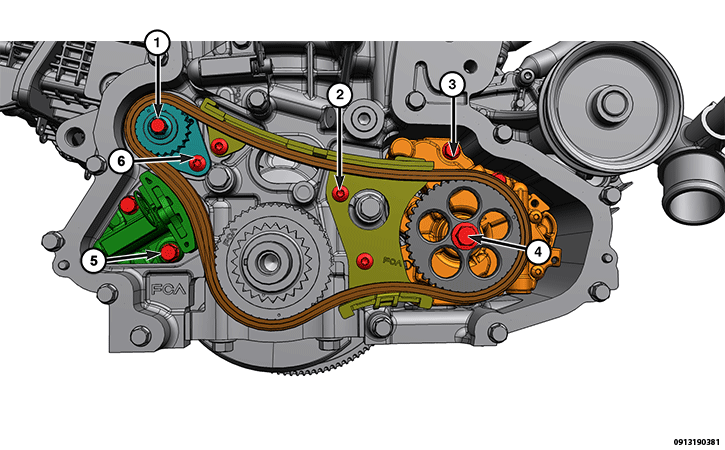

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
| 1 | Balance Shaft Sprocket Bolt | - | Serviced with Balance Shaft |
| 2 | Oil Pump Drive Chain Guide M6 Bolts | 10 N.m (89 In. Lbs.) | - |

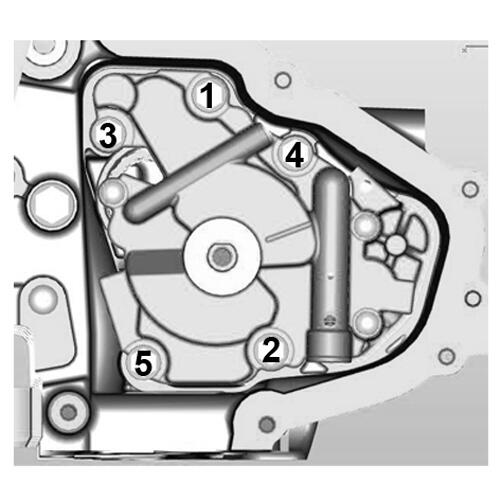

| 3 | Oil Pump to Cylinder Block | 10 N.m (89 In. Lbs.) | Tightening Sequence |
| 4 | Oil Pump Sprocket M8 Bolt | Torque Procedure:
|
- |
| 5 | Oil Pump Drive Chain Tensioner M6 Bolts | 9 N.m (80 In. Lbs.) | - |
| 6 | Balance Shaft retaining Plate Bolt | 10 N.m (89 In. Lbs.) | - |
| - | Coolant Hoses Retainer M6 Nuts | 5 N.m (44 In. Lbs.) | - |
| - | Oil Dipstick Tube M6 Nut | 10 N.m (89 In. Lbs.) | - |
| - | Oil Filter | 14 N.m (10 Ft. Lbs.) | - |
| - | Oil Galley Pipe Plugs M10 Plug | Torque Procedure:
|
Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| - | Oil Galley Pipe Plugs M14 Plug | + 1.5 mm (+ 0.06 In.) to - 0.5 mm (- 0.02 In.) flush with the block boss face | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| - | Oil Galley Pipe Plugs M18 Plug | + 1.5 mm (+ 0.06 In.) to - 0.5 mm (- 0.02 In.) flush with the block boss face | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |

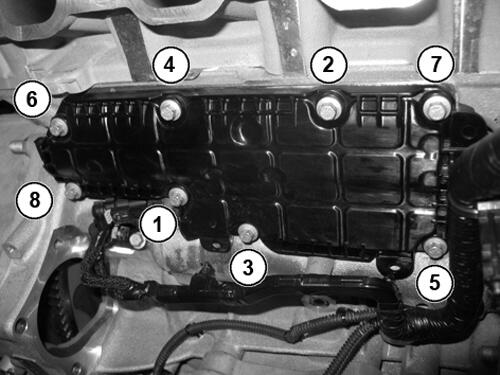

| - | Oil Vapor Separator M6 Bolts | 9 N.m (80 In. Lbs.) | Tightening sequence Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. Tighten in sequence |
