Torque Specifications - Ignition Control
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

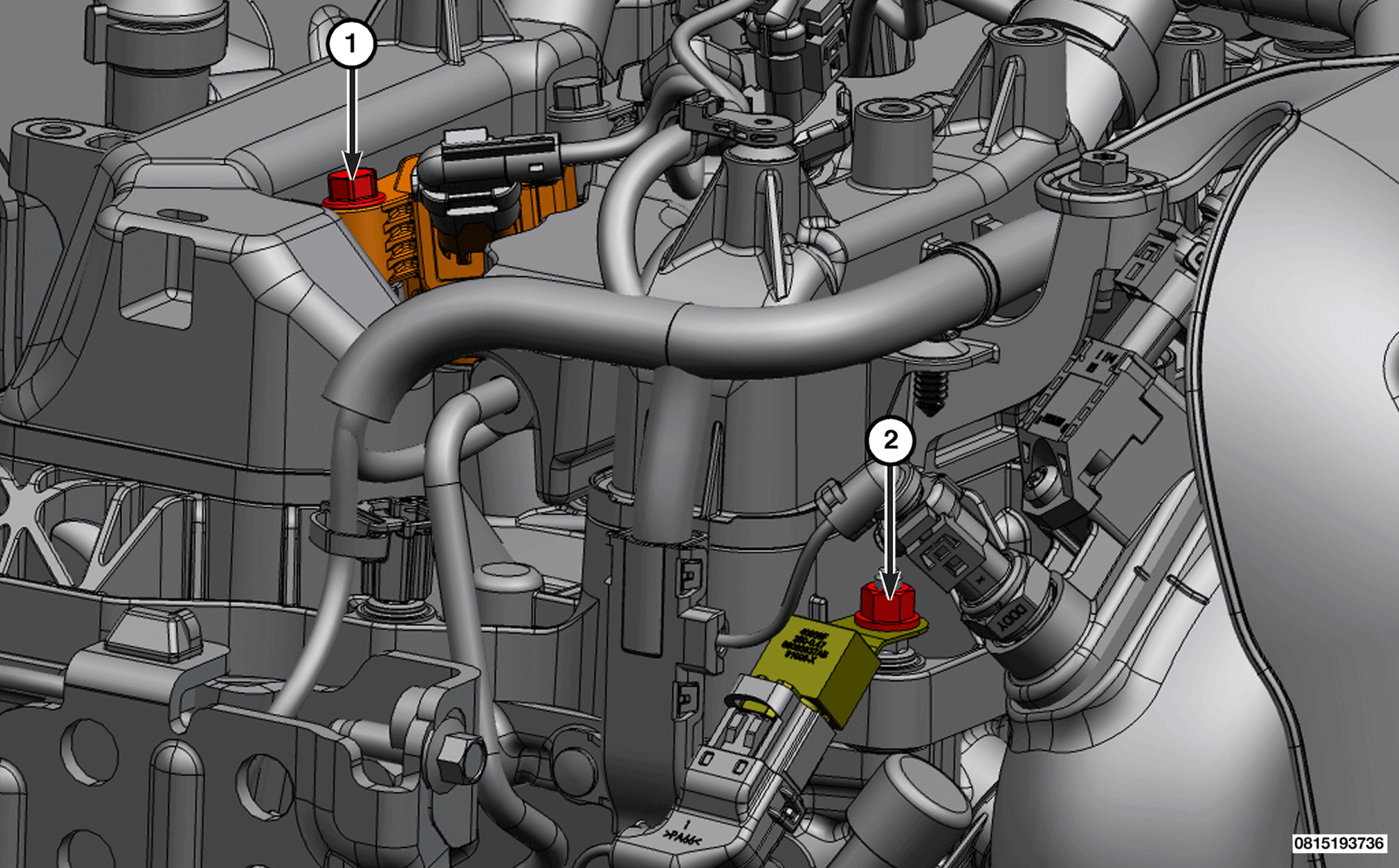

| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENTS |
| 1 |
Ignition Coil Mounting Bolt |
8 N.m (71 In. Lbs.) |
- |
| 2 |
Ignition Coil Capacitor Nut |
9 N.m (80 In. Lbs.) |
- |
| - |
Spark Plugs |
19 N.m (14 Ft. Lbs.) |
- |
