Torque Specifications - Front Engine
WARNING: This page is about a different variant/trim than selected.

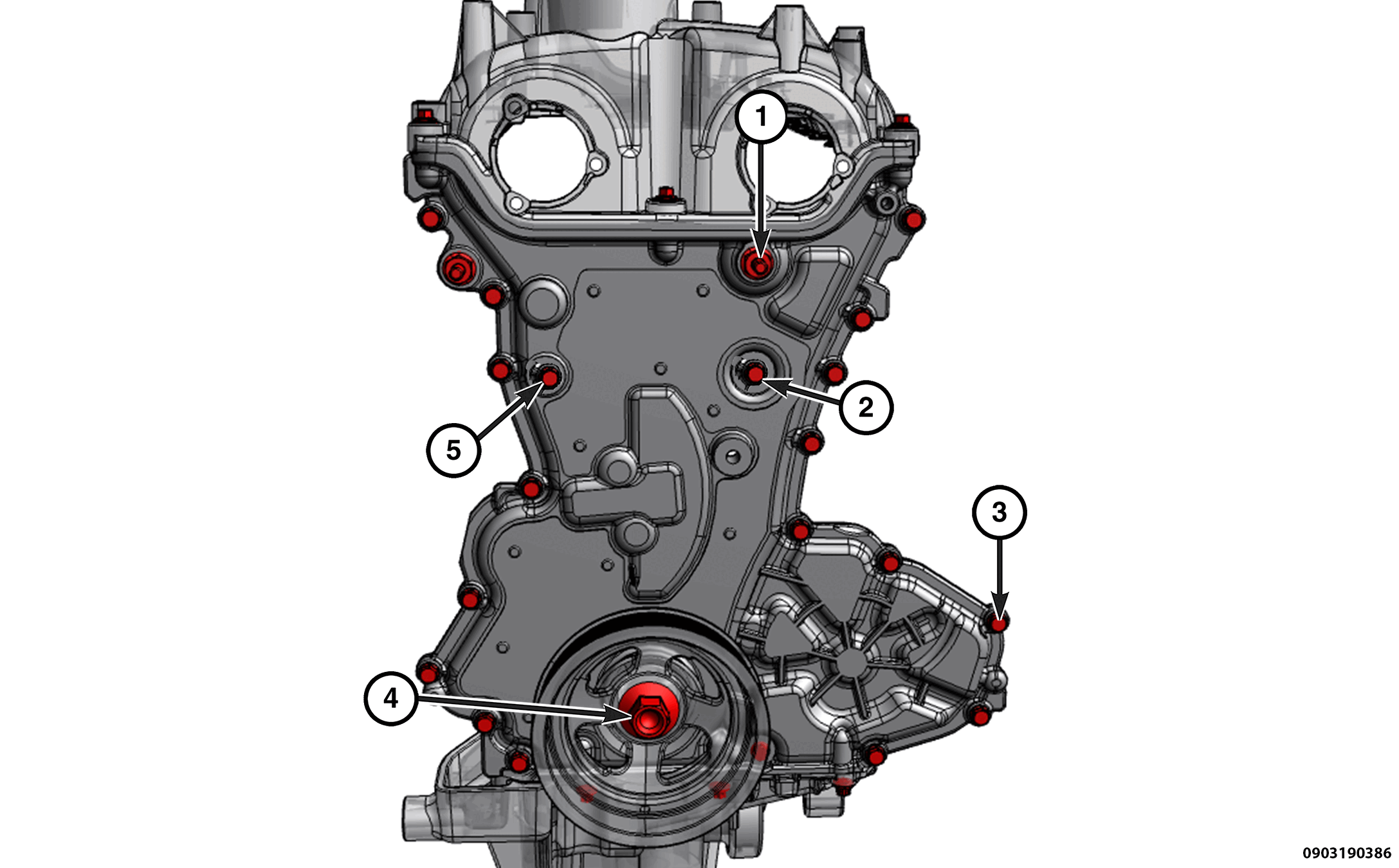

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Front Cover to Block Stud Bolts | 50 N.m (37 Ft. Lbs.) | - |
| 2 | Front Cover to Block M10 Torx Bolt | 28 N.m (20 Ft. Lbs.) | - |

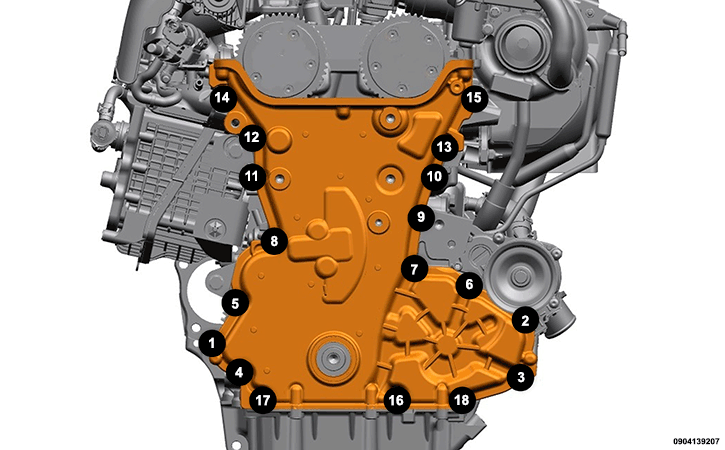

| 3 | Timing Chain Cover to Crankcase and Cylinder Head M6 Bolts | 5 N.m (44 In. Lbs.) + 40° | Tightening Sequence |
| 4 | Damper Pulley to Crankshaft Bolt | 50 N.m (37 Ft. Lbs.) + 80° | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 5 | Front Cover to Block M10 Hex Bolt | 55 N.m (41 Ft. Lbs.) | - |
