Torque Specifications - Engine Block

WARNING: This page is about a different variant/trim than selected.

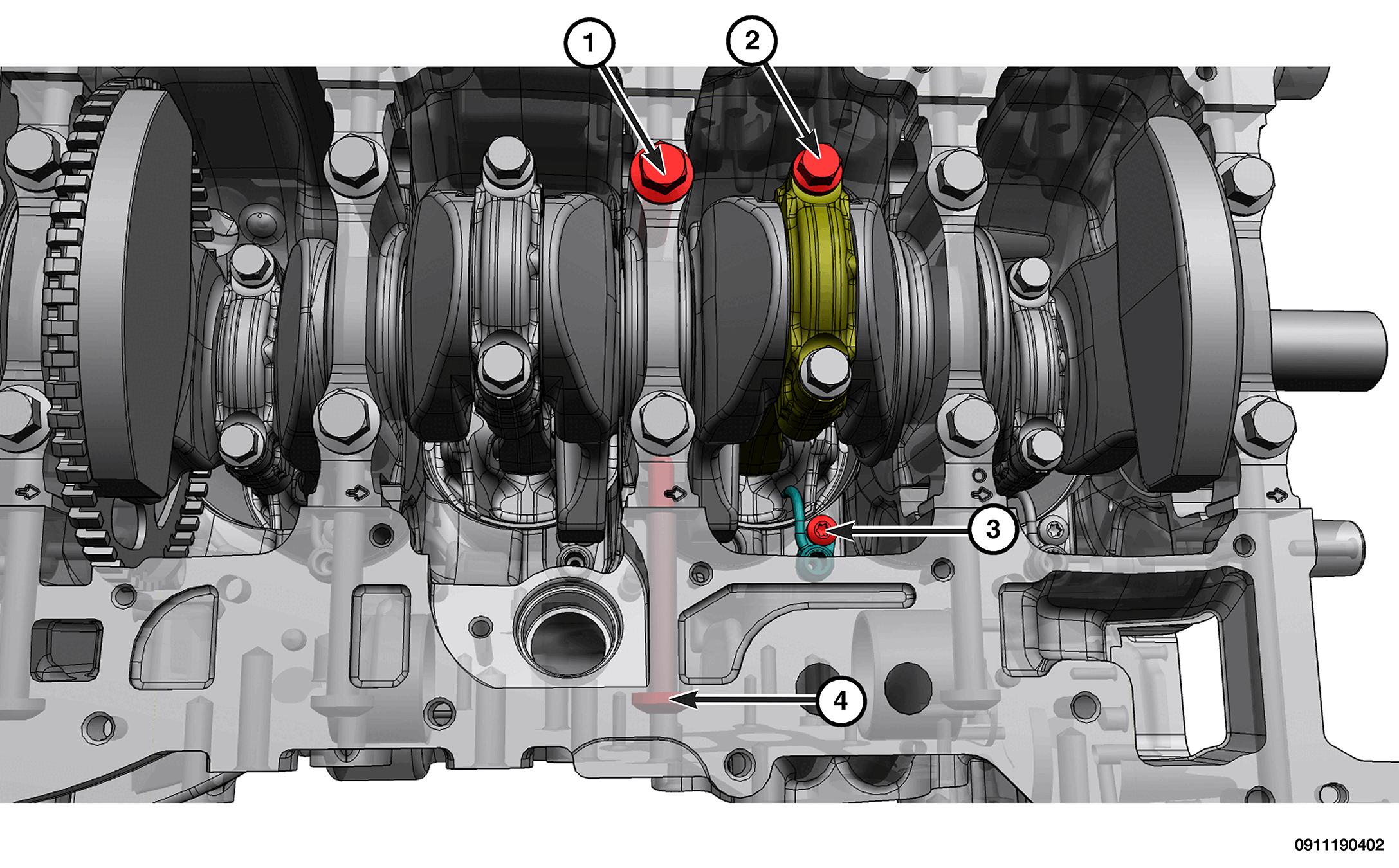

GC0206426Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENTS
1 Main Bearing M10 Cap Bolts Torque Procedure
  1. Main Cap Bolts (1-10) to 14 N.m (10 Ft. Lbs.)
  2. Main Cap Bolts (1-10) to 45 N.m (33 Ft. Lbs.)
  3. Main Cap Bolts (1-10) + 90°

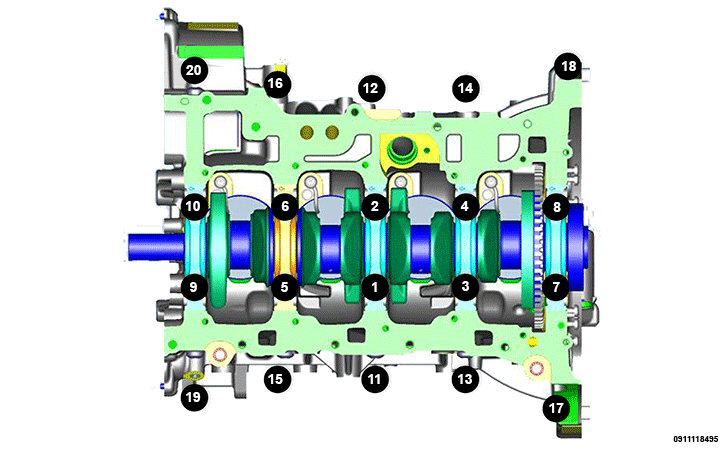

 Tightening sequence
GC0182588Courtesy of CHRYSLER GROUP, LLC
2 Connecting Rod M9 Cap Bolts Torque Procedure
  1. 20 N.m (15 Ft. Lbs.)
  2. + 100°
 Do not reuse these fasteners. If removed, a NEW  fastener must be installed and tightened to specifications.
3 Piston Oil Cooler Jet 11 N.m (8 Ft. Lbs.)  -
4 Main Bearing M8 Tie Bolts Main Cap Tie Bolts (11-20) to 23 N.m (17 Ft. Lbs.)  Tightening sequence
GC0182588Courtesy of CHRYSLER GROUP, LLC
- Crankshaft Target Wheel Screws 12 N.m (9 Ft. Lbs.)  -
- Rear Crankshaft Oil Seal Bolts 10 N.m (89 In. Lbs.)  Tightening sequence
GC0182124Courtesy of CHRYSLER GROUP, LLC
