Torque Specifications - Cylinder Head

WARNING: This page is about a different variant/trim than selected.

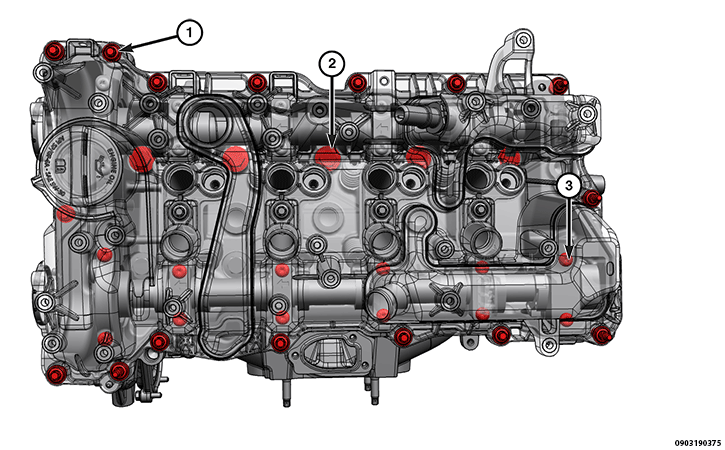

GC0206419Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENTS
1 Cylinder Head Cover M6 Bolts 10 N.m (89 In. Lbs.)  Tightening Sequence

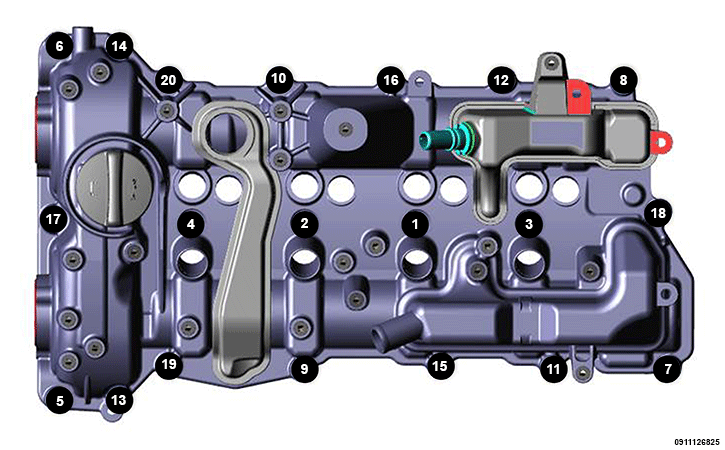

GC0182665Courtesy of CHRYSLER GROUP, LLC
2 Cylinder Head M11 Inner Bolts
Cylinder Head M8 Side Bolt (11)		 Torque Procedure:
  1. M11 bolts to 20 N.m (15 Ft. Lbs.)
  2. M11 bolts to 55 N.m (41 Ft. Lbs.)
  3. Tighten M11 bolts again to 55 N.m (41 Ft. Lbs.)
  4. + 180°
  5. M8 bolt to 28 N.m (21 Ft. Lbs.)
 Tightening Sequence

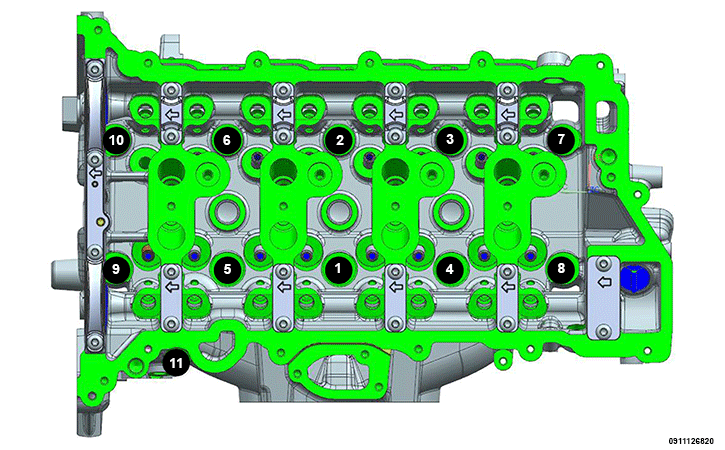

GC0181426Courtesy of CHRYSLER GROUP, LLC
3 Camshaft Cap M6 Bolts 10 N.m (89 In. Lbs.)  Tightening Sequence

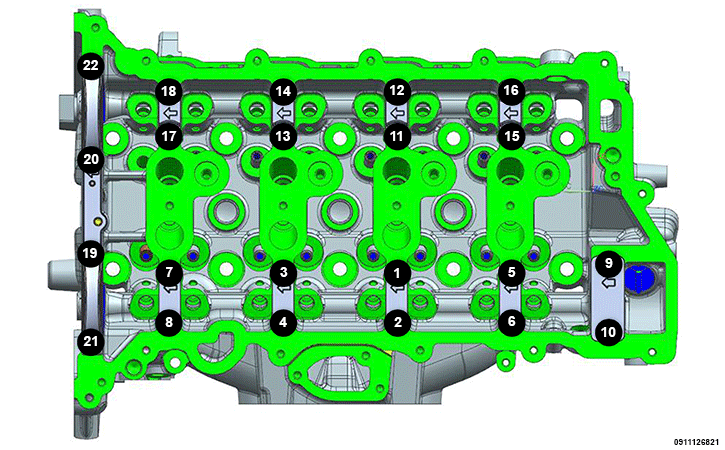

GC0182897Courtesy of CHRYSLER GROUP, LLC
