Top Engine Cover: Removal

WARNING: This page is about a different variant/trim than selected.

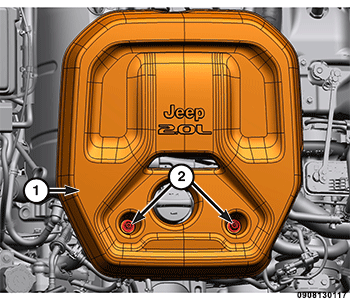

GC0181955Courtesy of CHRYSLER GROUP, LLC
1 - Top Engine Cover
2 - Top Engine Cover Bolts
  1. Remove the two top engine cover bolts, disengage the two rear rubber mounting grommets and remove the top engine cover.
