Side Engine Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the top engine cover.

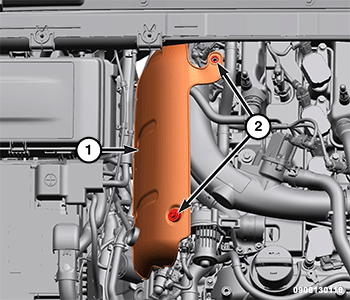

    GC0181505Courtesy of CHRYSLER GROUP, LLC
    1 - Side Engine Cover
    2 - Side Engine Cover Bolts
  2. Remove the two side engine cover bolts and disengage the side engine cover from the two lower rubber mounting grommets.
  3. Disengage the two transmission vent hose retainers from the side engine cover.
