Dual Battery Switch Module (DBSM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the right splash shield. Refer to SHIELD, REMOVAL AND INSTALLATION .

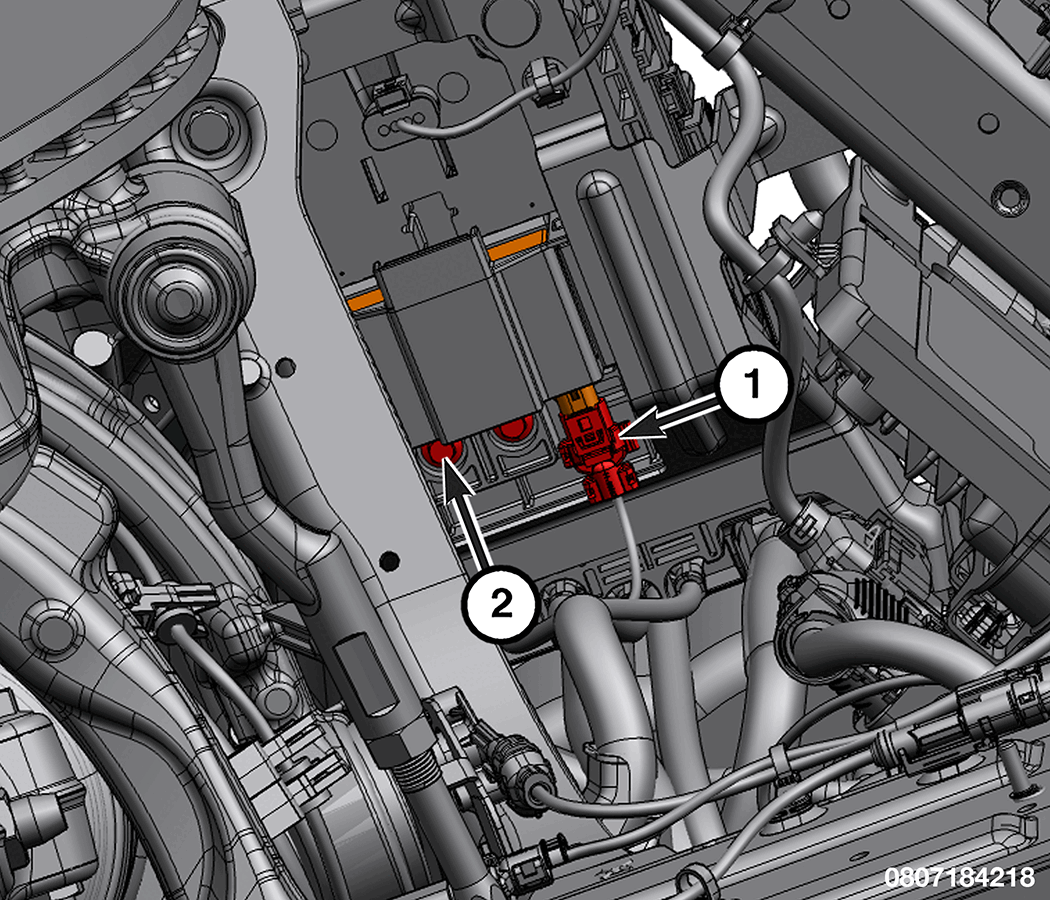

    GC0201657Courtesy of CHRYSLER GROUP, LLC
    1 - PCR Wire Harness Connector
    2 - PCR Bolts
  2. Disconnect the PCR Wire harness connector.
  3. Remove the bolts that secure the Dual Battery Switch Module (DBSM) to the Power Distribution Center (PDC).

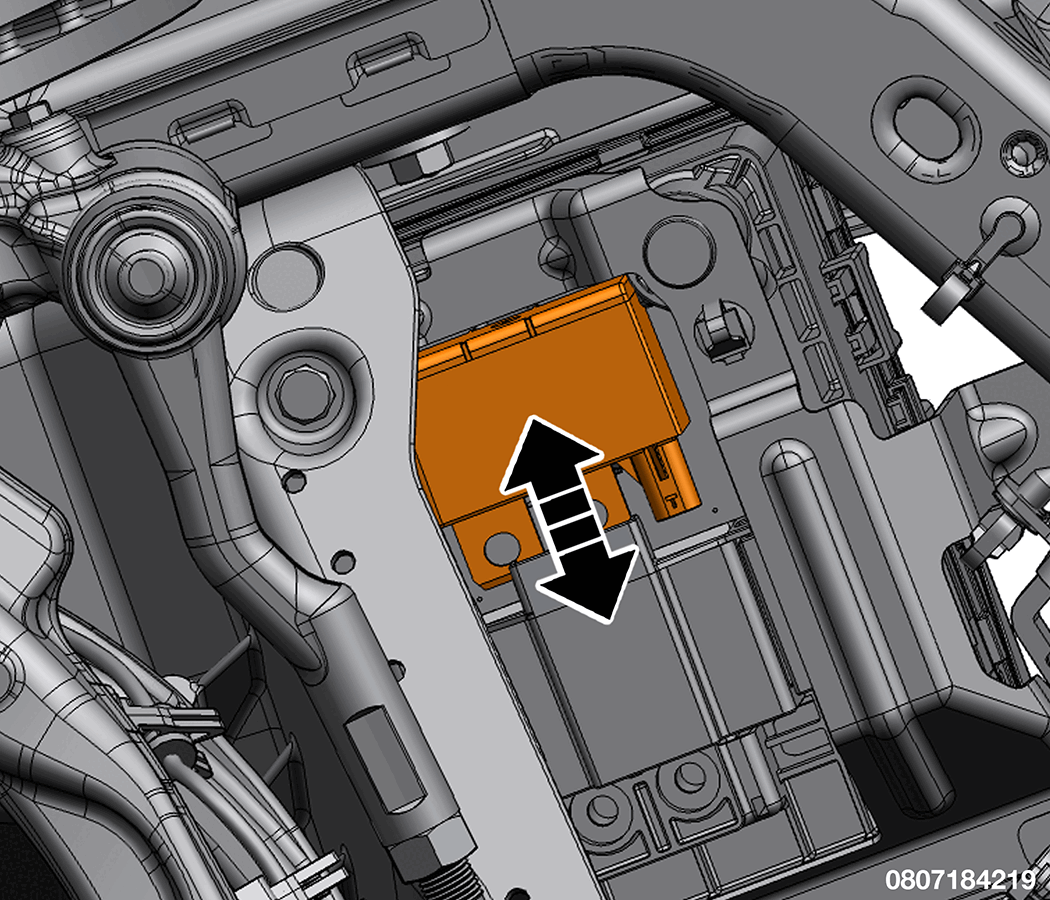

    GC0201663Courtesy of CHRYSLER GROUP, LLC
  4. Slide the Module out of the PDC.
