Camshaft Position (CMP) Sensor
WARNING: This page is about a different variant/trim than selected.
CAMSHAFT POSITION (CMP) SENSOR
| Refer to COMPONENT INDEX . |

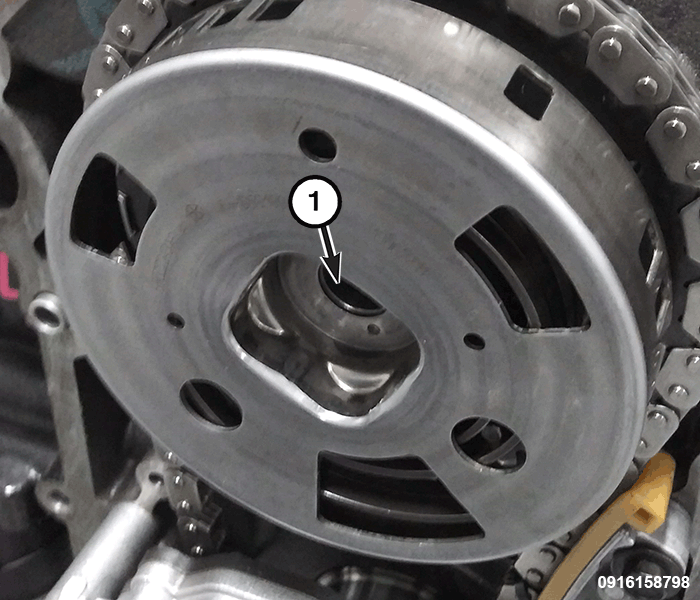

| 1 - Camshaft Phaser Tone Wheel |
- The CMP sensor is located on the front timing cover.
- There is a metal tone wheel incorporated with the cam phaser. The tone wheel has holes spaced around the tone wheel to indicate camshaft position.
- The CMP sensor is hall effect sensor that varies the 5.0 volt signal high and low as the holes in the tone wheel pass by the sensor.
