Crankshaft End Play

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

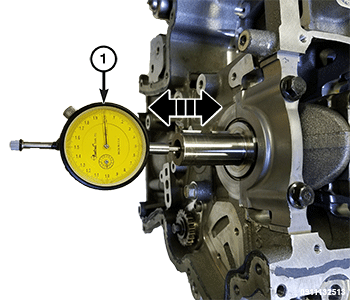

1 - Dial Indicator

Mount a dial indicator to a stationary point at the front of the engine. Locate the probe perpendicular against the nose of the crankshaft.
Move the crankshaft all the way to the rear of its travel.
Zero the dial indicator.
Move the crankshaft forward to the limit of travel and read the dial indicator. Compare the measured end play to the specification. Refer to ENGINE - SPECIFICATIONS .

NOTE:

Crankshaft thrust bearings are not selectable and are only available in a single thickness.
