Feeler Gauge

WARNING: This page is about a different variant/trim than selected.

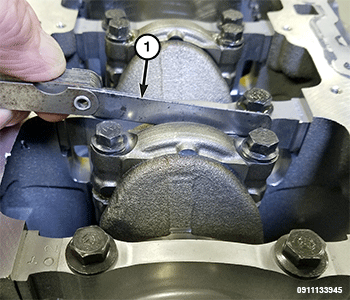

GC0182559Courtesy of CHRYSLER GROUP, LLC
1 - Feeler Gauge
  1. Slide a snug-fitting feeler gauge between the connecting rod and crankshaft journal flange. Compare the measured side clearance to the specification. Refer to ENGINE - SPECIFICATIONS .
  2. Repeat this procedure for each connecting rod. Rotate the crankshaft for connecting rod accessibility.
