Charging System: Notes
WARNING: This page is about a different variant/trim than selected.

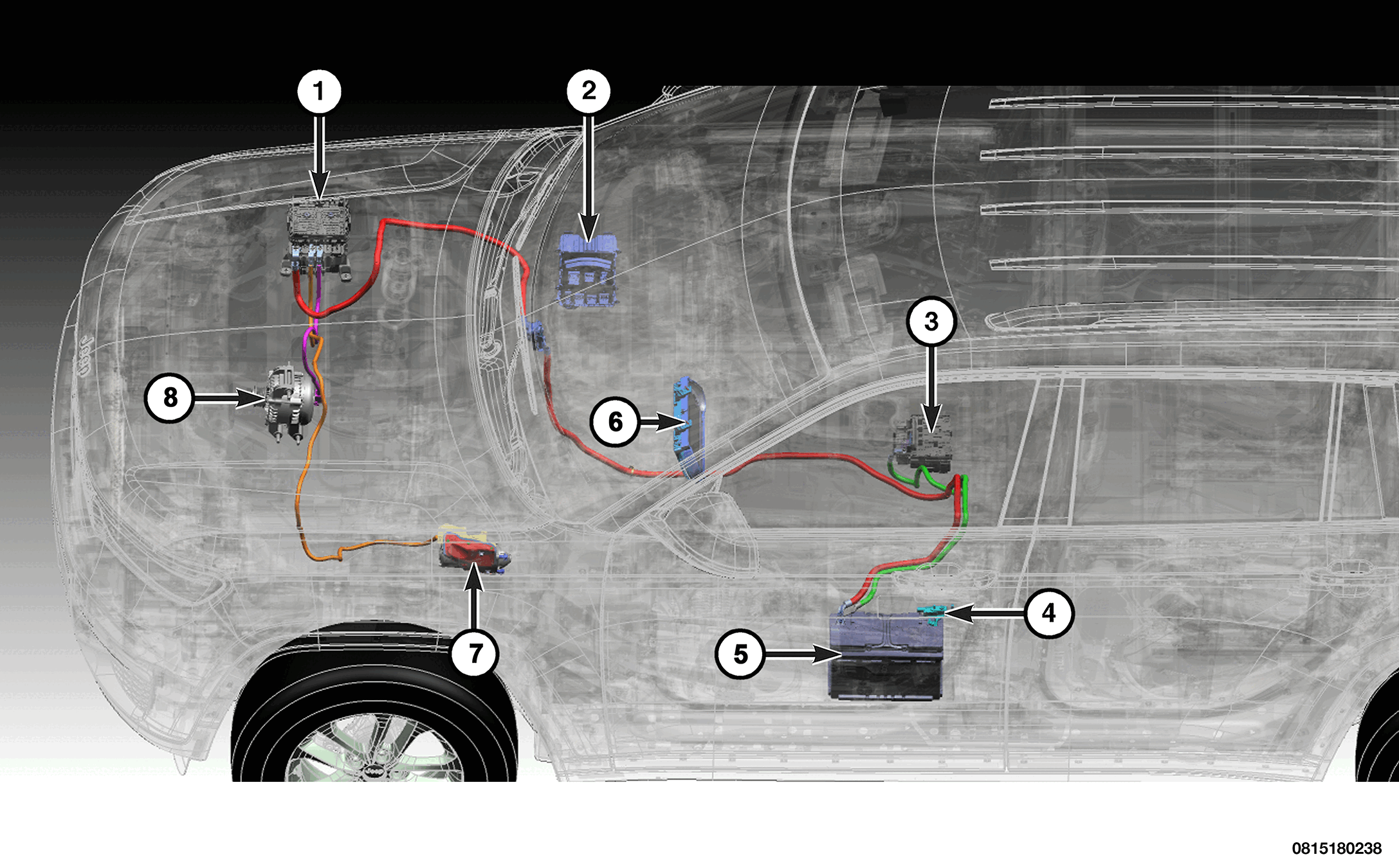

DESCRIPTION Vehicles that are equipped with an ADAS system will come with an auxiliary battery with an IBS-2 on the negative cable.
| 1 - Power Distribution Center (PDC) | 5 - Battery |
| 2 - Body Control Module (BCM) | 6 - Instrument Panel Cluster (IPC) |
| 3 - Center Power Distribution Center (PDC) | 7 - Starter Motor |
| 4 - Intelligent Battery Sensor 1 (IBS-1) | 8 - Alternator |
