TORQUE SPECIFICATIONS - BATTERY COOLING

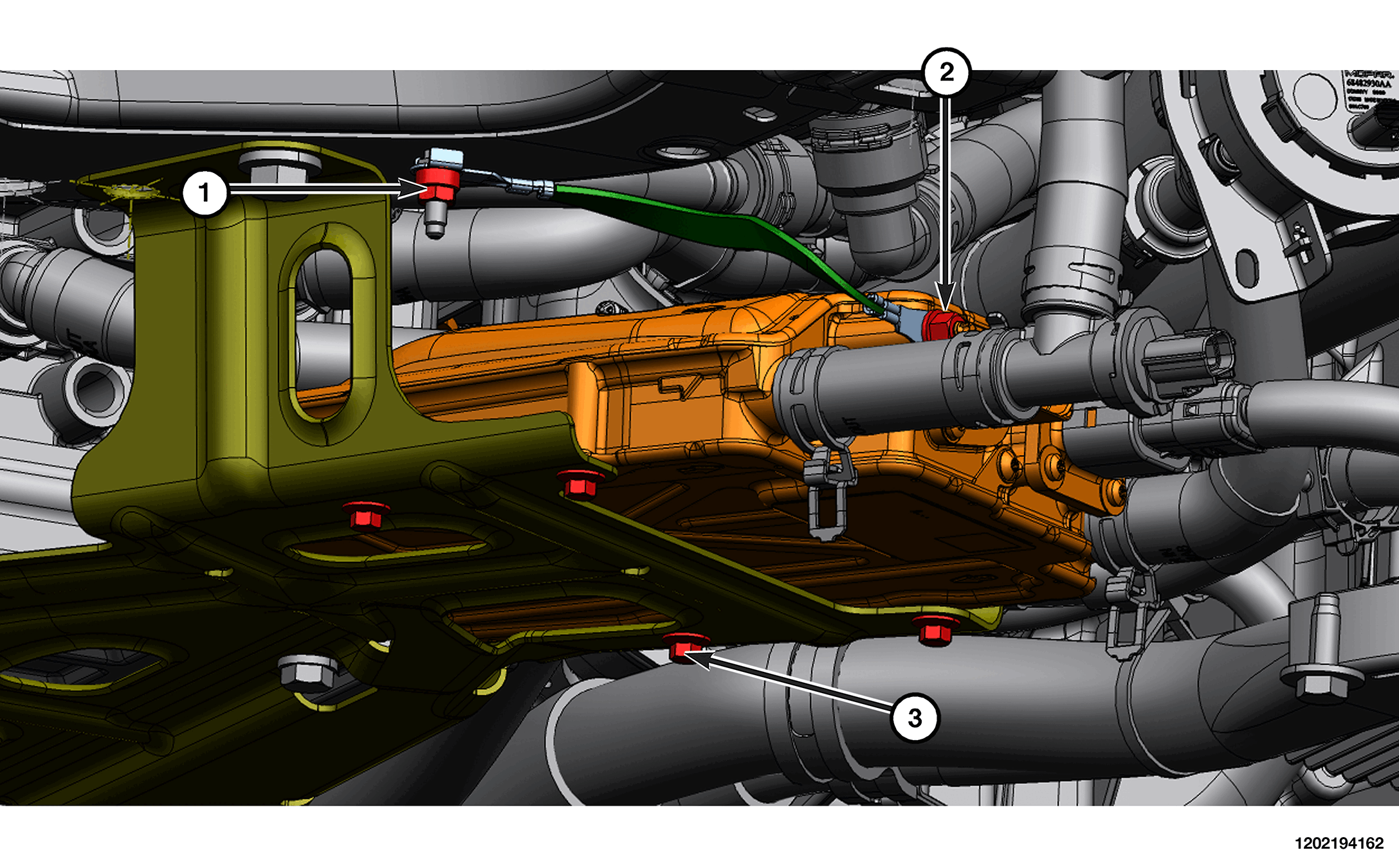

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Ground Wire HV Coolant Heater to Body | 9 N.m (80 In. Lbs.) | - |
| 2 | Ground Wire to the HV Coolant Heater | 9 N.m (80 In. Lbs.) | - |
| 3 | Battery Coolant Heater Bolts | 9 N.m (80 In. Lbs.) | - |
TORQUE SPECIFICATIONS - BATTERY COOLING

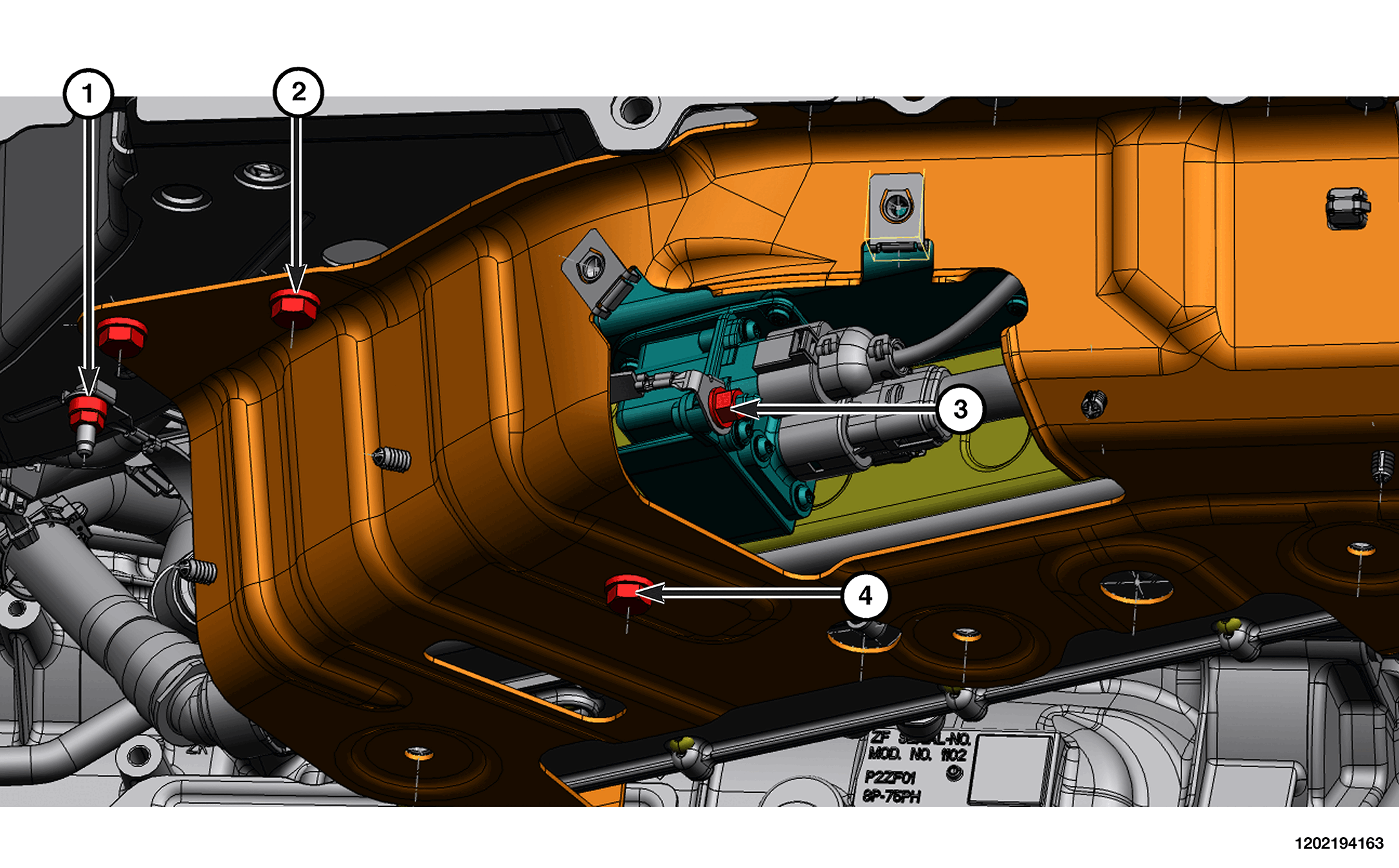

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Battery Coolant Heater Ground Nut to Body | 9 N.m (80 In. Lbs.) | - |
| 2 | IDCM Bracket to Body | 25 N.m (18 Ft. Lbs.) | - |
| 3 | Battery Coolant Heater Ground Nut | 9 N.m (80 In. Lbs.) | - |
| - | HV Coolant Heater Bolts | 8 N.m (71 In. Lbs.) | - |
TORQUE SPECIFICATIONS - BATTERY COOLING

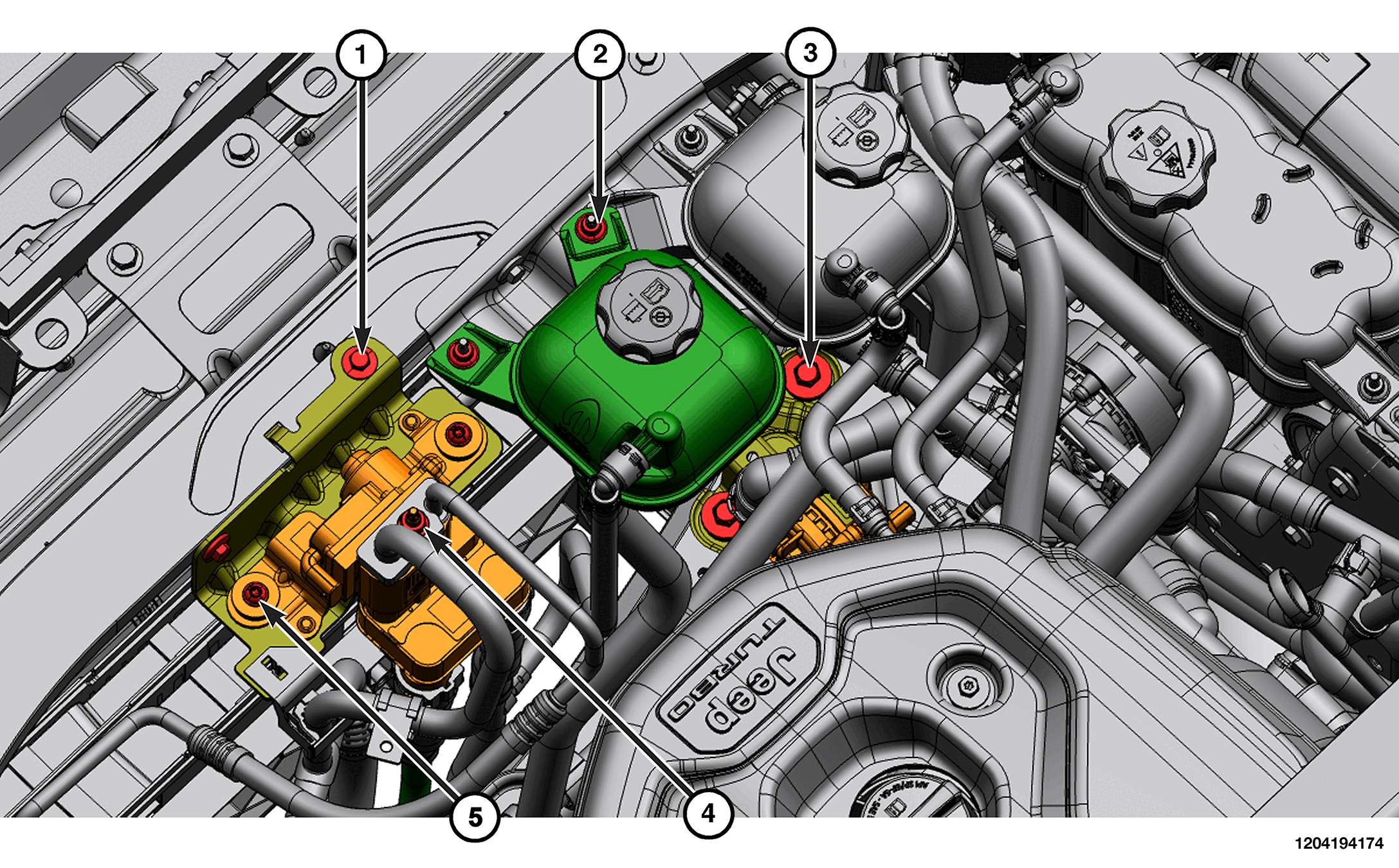

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Chiller to Upper Crossmember | 7 N.m (62 In. Lbs.) | - |
| 2 | Battery Pressurized Coolant Bottle Nuts | 7 N.m (62 In. Lbs.) | - |
| 3 | Battery Coolant Pump Bolts | 14 N.m (10 Ft. Lbs.) | - |
| 4 | A/C line to Chiller Nut | 20 N.m (15 Ft. Lbs.) | - |
| 5 | Chiller to Chiller Bracket | Tighten Securely | - |
| - | Battery Coolant Hose to Frame Bolt | 8 N.m (71 In. Lbs.) | - |
| - | Coolant Hose Bracket Nut | 9 N.m (80 In. Lbs.) | - |
| - | Coolant Temperature Control Valve Nuts | 8 N.m (71 In. Lbs.) | - |
| - | Combo Auxiliary Coolant Pump Bracket Bolts | 7 N.m (62 In. Lbs.) | - |
| - | Low Temp Coolant Pump Screw | 5 N.m (44 In. Lbs.) | - |
| - | Low Temp Coolant Pump 2 Nuts | 8 N.m (71 In. Lbs.) | - |
| - | Low Temp Pressurized Coolant Bottle Nut | 7 N.m (62 In. Lbs.) | - |
