Torque Specifications - Engine Block

WARNING: This page is about a different variant/trim than selected.

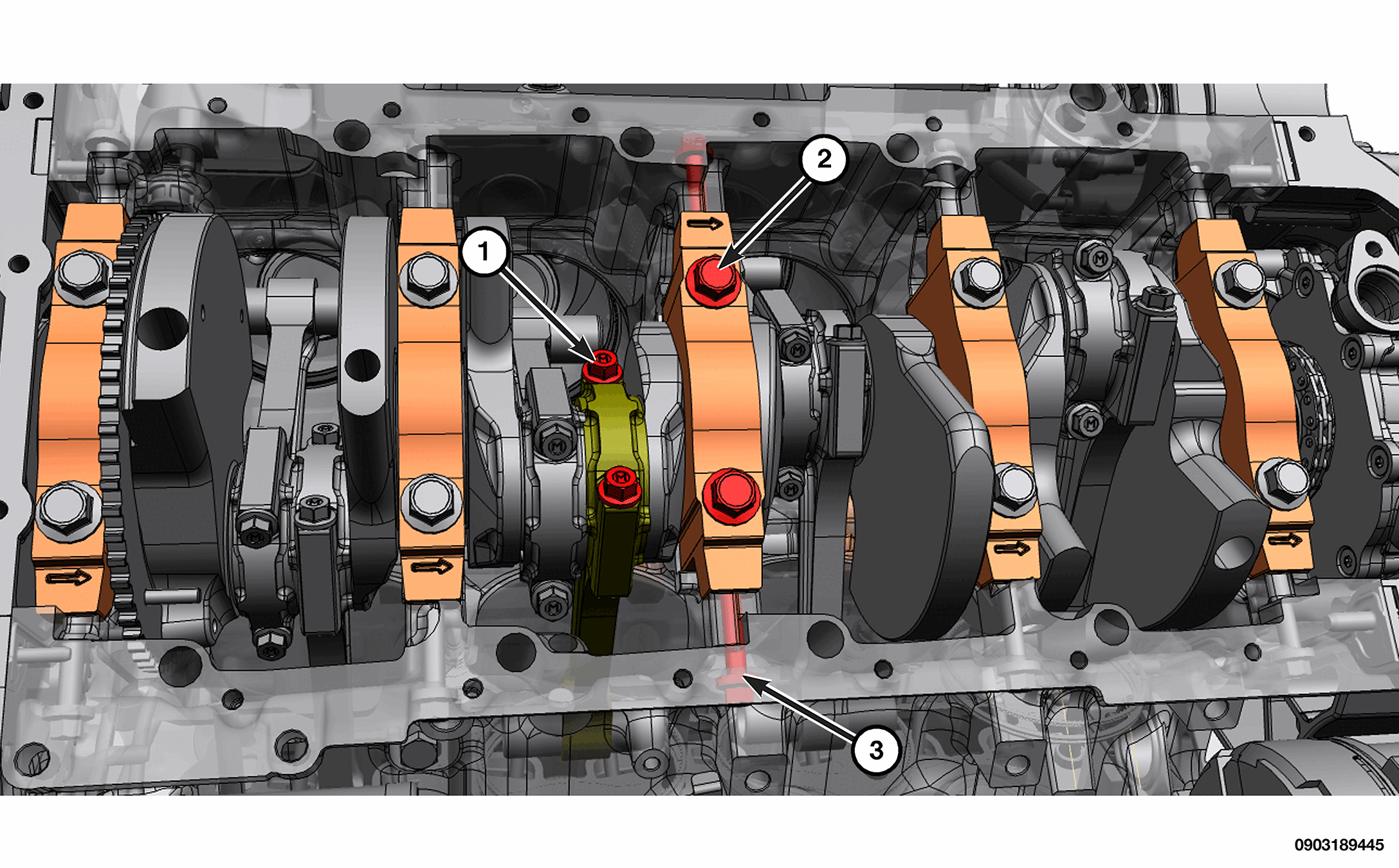

GC0203151Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS - ENGINE BLOCK

CALLOUT DESCRIPTION  SPECIFICATION  COMMENTS
1 Connecting Rod Cap Bolts 20 N.m + 90° Turn (15 Ft. Lbs. + 90° Turn)  -
2 Main Bearing Cap Bolts Torque Procedure
  1. Tighten bolts to 13 N.m (10 ft. lbs.)
  2. Tighten bolts to 28 N.m (21 ft. lbs.)
  3. Rotate an additional 90°
 Tightening Sequence

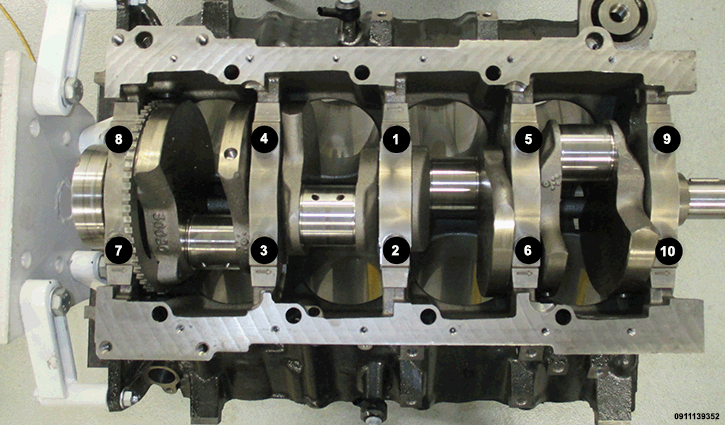

GC0184898Courtesy of CHRYSLER GROUP, LLC
3 Main Bearing Cap Cross-Bolts
NOTE:

The main cap cross-bolts are torqued after final torque of the main cap bolts.

 Torque Procedure
  1. Tighten bolts to 31 N.m (23 ft. lbs.)
  2. Repeat cross-bolt tightening using the sequence shown
 Tightening Sequence
NOTE:

Always use a NEW washer/seal on cross-bolts.

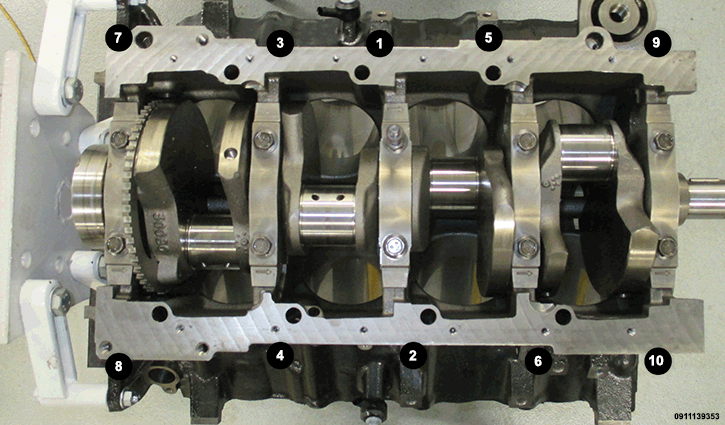

GC0185915Courtesy of CHRYSLER GROUP, LLC

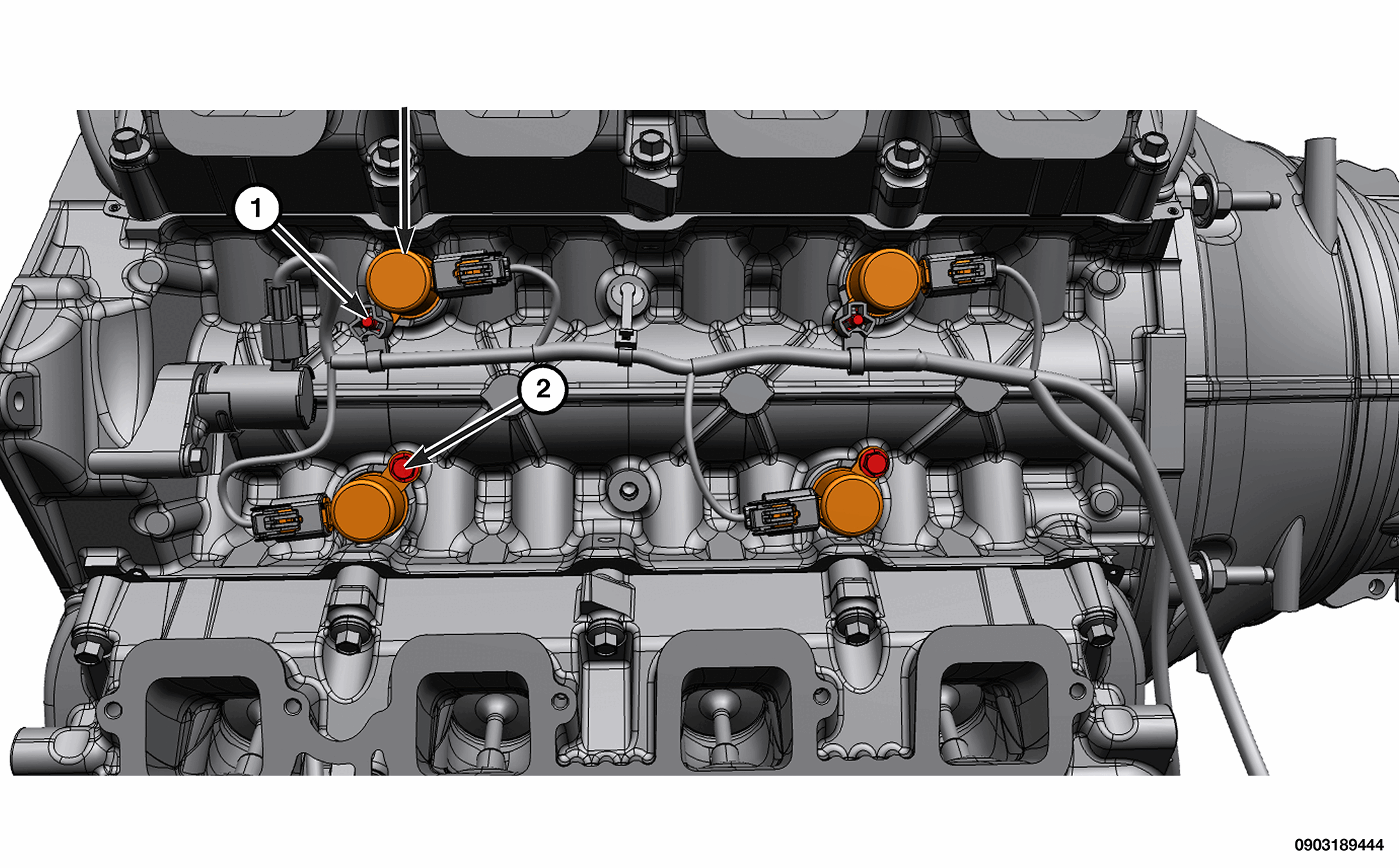

GC0203704Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS - ENGINE BLOCK

CALLOUT DESCRIPTION  SPECIFICATION  COMMENTS
1 Multiple Displacement Solenoid (MDS) Stud Bolts 11 N.m (8 Ft. Lbs.)  -
2 Multiple Displacement Solenoid (MDS) 11 N.m (8 Ft. Lbs.)  -
3 Multiple Displacement Solenoid (MDS) Bolt 11 N.m (8 Ft. Lbs.)  -
- Engine Block Coolant Plug (3/8 NPT) 27 N.m (20 Ft. Lbs.)  -
- Engine Block Coolant Plug (1/4 - 18 NPT) 34 N.m (25 Ft. Lbs.)  -
- Engine Block Oil Galley Plug (1/4 - 18 NPT) 20 N.m (15 Ft. Lbs.)  -
- Lifter Guide Holder 12 N.m (9 Ft. Lbs.)  -
- Rear Main Seal Retainer Bolts 13 N.m (10 Ft. Lbs.)  -
