Torque Specifications - Cylinder Head

WARNING: This page is about a different variant/trim than selected.

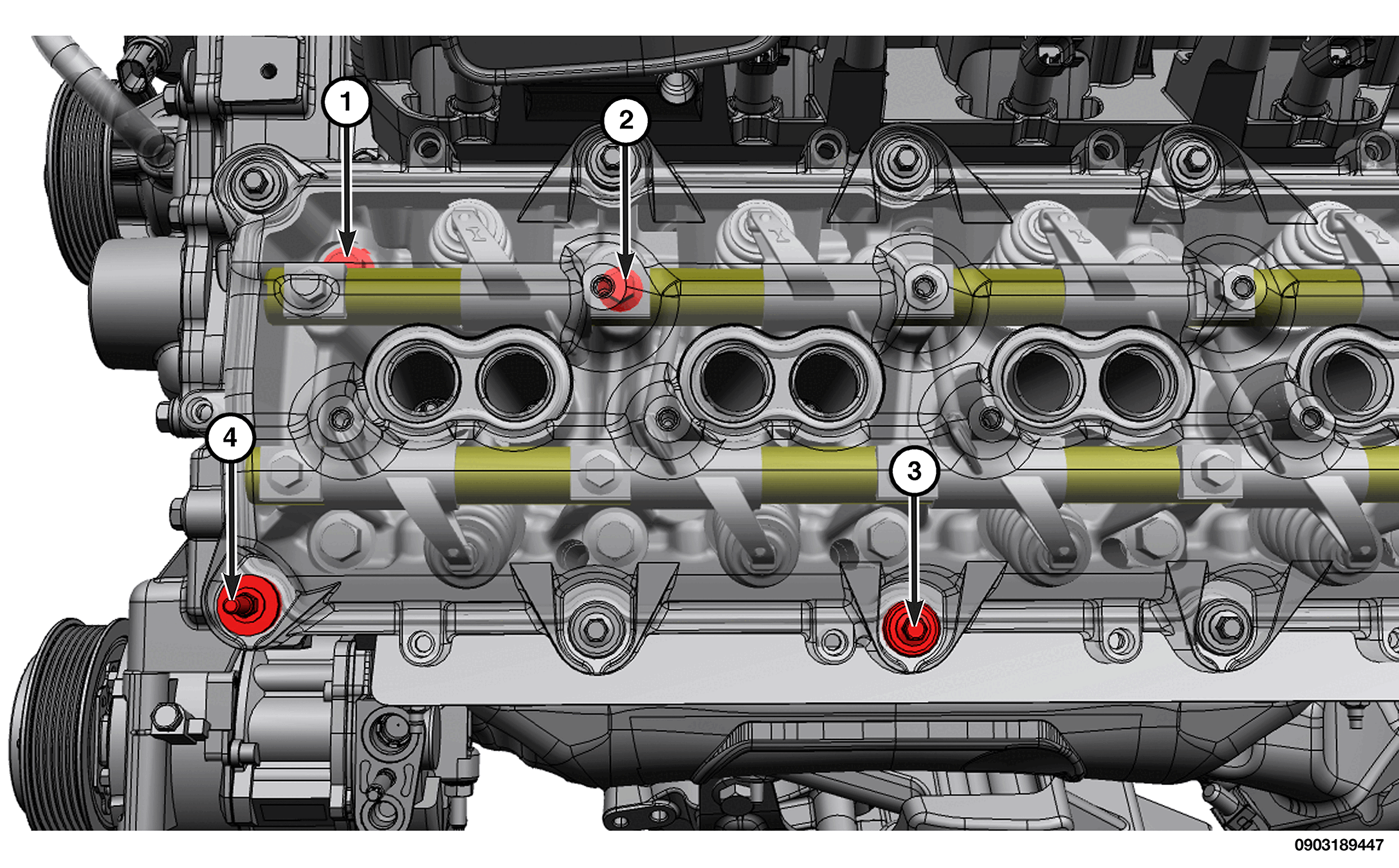

GC0203364Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS - CYLINDER HEAD

CALLOUT DESCRIPTION SPECIFICATION COMMENTS
1 Cylinder Head Bolts Torque Procedure
  1. Tighten all cylinder head bolts finger tight
  2. Torque cylinder head bolts 1 through 10 to 34 N.m (25 ft. lbs.)
  3. Torque cylinder head bolts 11 through 15 to 20 N.m (15 ft. lbs.)
  4. Torque cylinder head bolts 1 through 10 to 54 N.m (40 ft. lbs.)
  5. Torque cylinder head bolts 11 through 15 to 20 N.m (15 ft. lbs.)
  6. Turn cylinder head bolts 1 through 10 an additional 90°
  7. Torque cylinder head bolts 11 through 15 to 28 N.m (21 ft. lbs.)
 Tightening Sequence

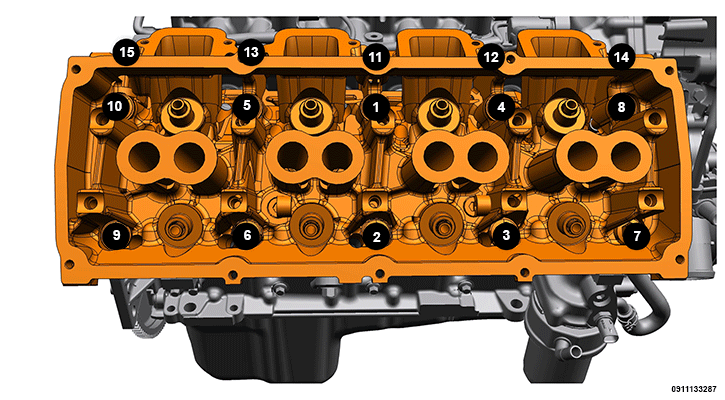

GC0184975Courtesy of CHRYSLER GROUP, LLC
2 Cylinder Head Cover Bolts 11 N.m (8 Ft. Lbs.)  Tightening Sequence

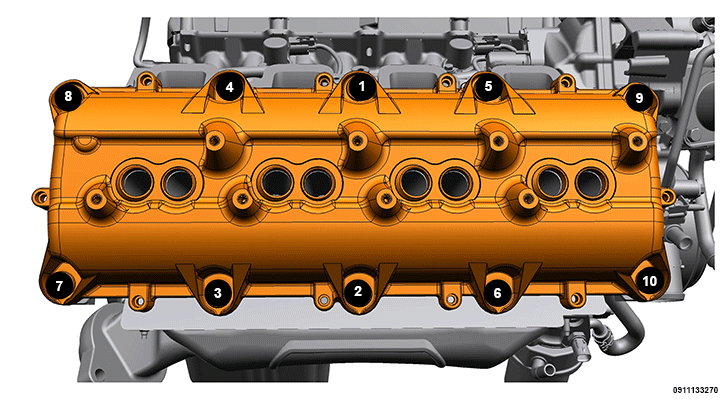

GC0184683Courtesy of CHRYSLER GROUP, LLC
3 Rocker Arm Bolts Torque Procedure
  1. Snug to 10 N.m (7 ft. lbs.)
  2. Torque to 23 N.m (17 ft. lbs.)
  3. Individually loosen by 1/2 turn and re-torque to 23 N.m (17 ft. lbs.)
  4. Turn an additional 30°
 Tightening Sequence
GC0088038Courtesy of CHRYSLER GROUP, LLC
4 Cylinder Head Cover Stud Bolts 11 N.m (8 Ft. Lbs.)  -
