Front Heat Shield: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the exhaust pipe. Refer to:2.0L ENGINE - PIPE, EXHAUST, REMOVAL AND INSTALLATION .

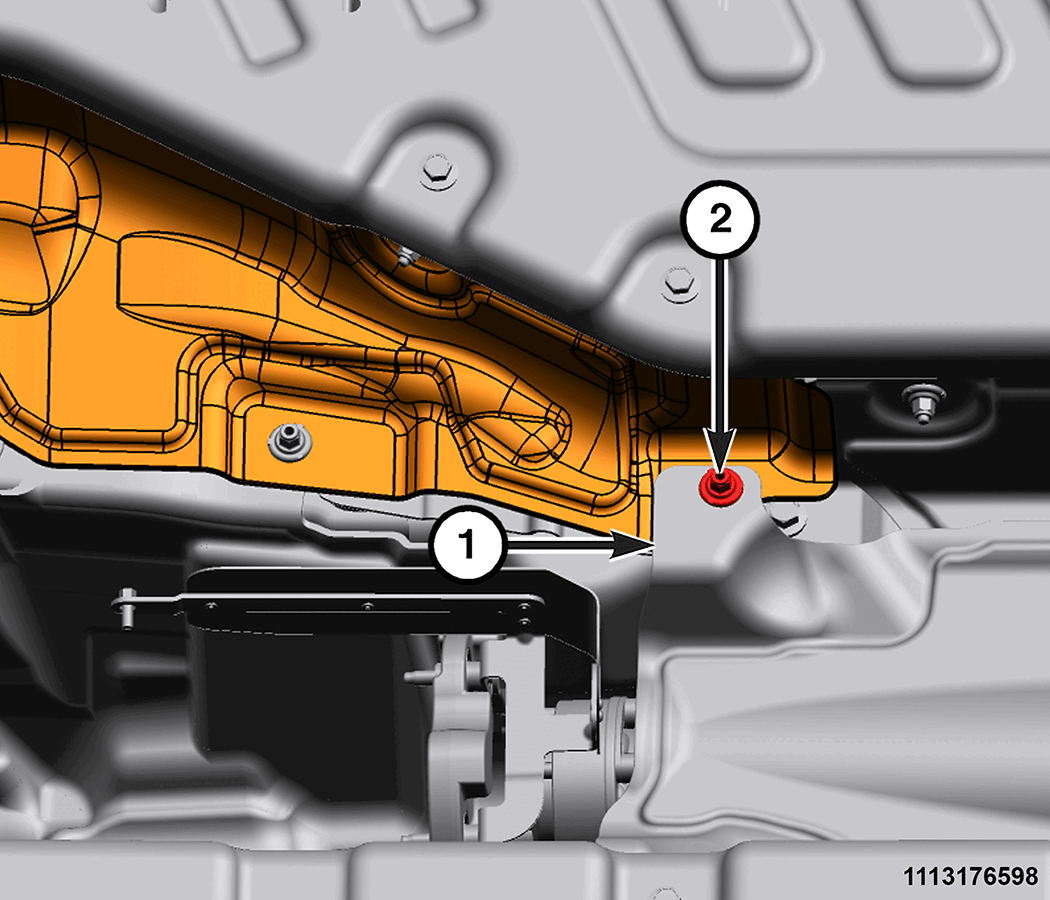

1 - Center Heat Shield Tab 2 - Center Heat Shield Nut - Remove the center heat shield nut and position the center heat shield tab off the stud.

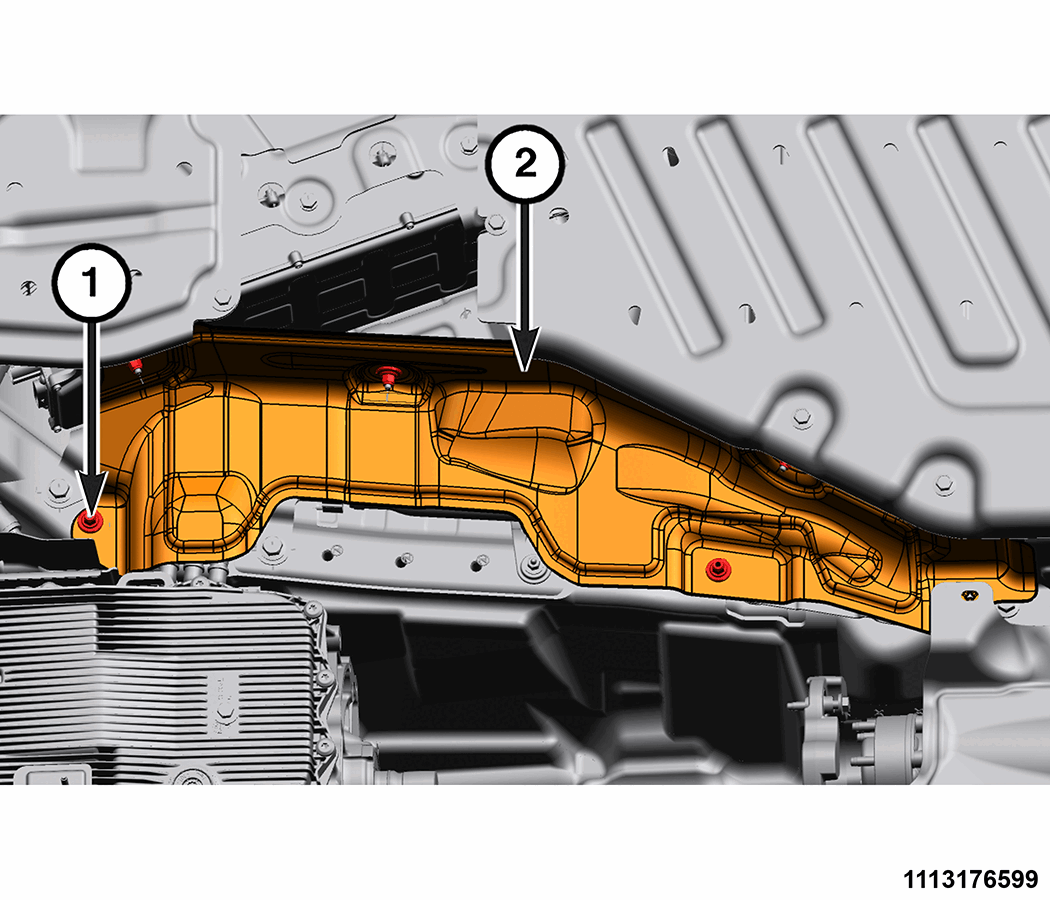

1 - Front Heat Shield Nuts 2 - Front Heat Shield - Remove the front heat shield nuts and the front heat shield.
