Center Heat Shield: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the exhaust resonator/muffler. Refer to: 2.0L ENGINE - MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .

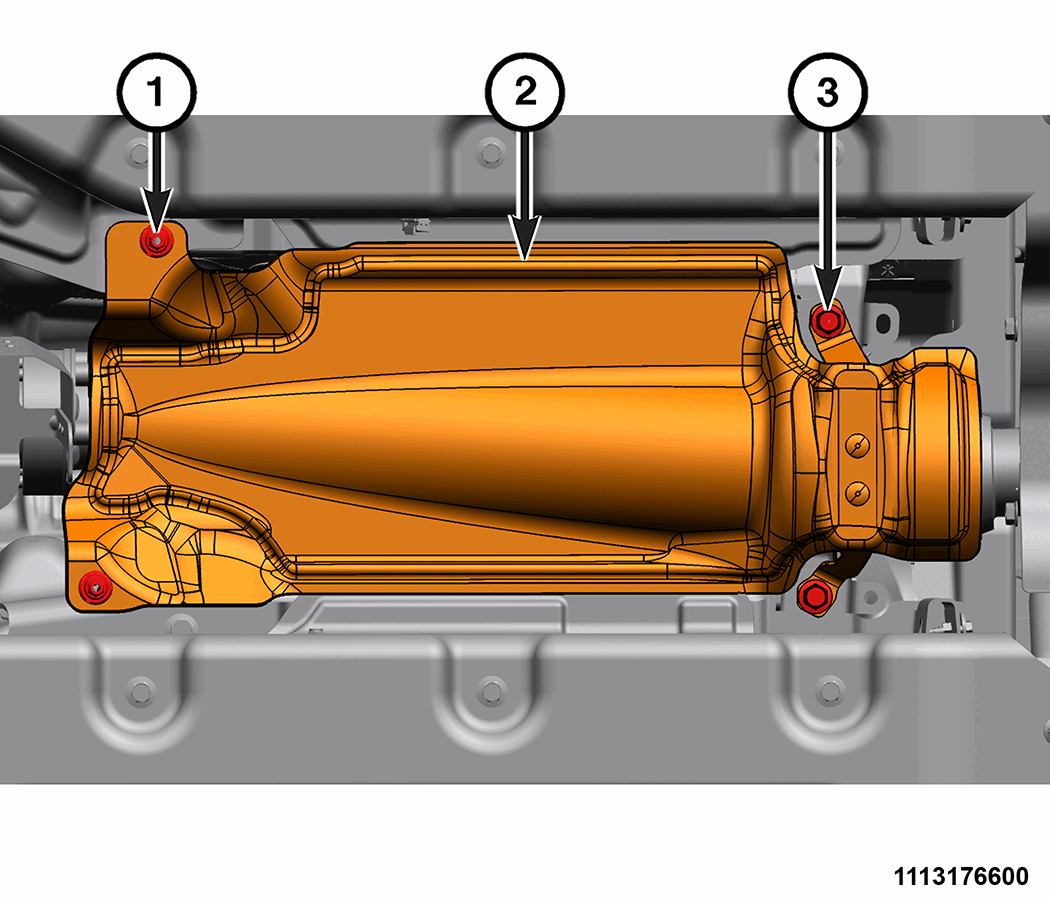

1 - Center Heat Shield Nuts 2 - Center Heat Shield 3 - Center Heat Shield to Center Support Bearing Bolts - Remove the center heat shield nuts, center heat shield to center support bearing bolts, and the center heat shield.
