Catalytic Converter Heat Shield: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the catalytic converter. Refer to:2.0L ENGINE - CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

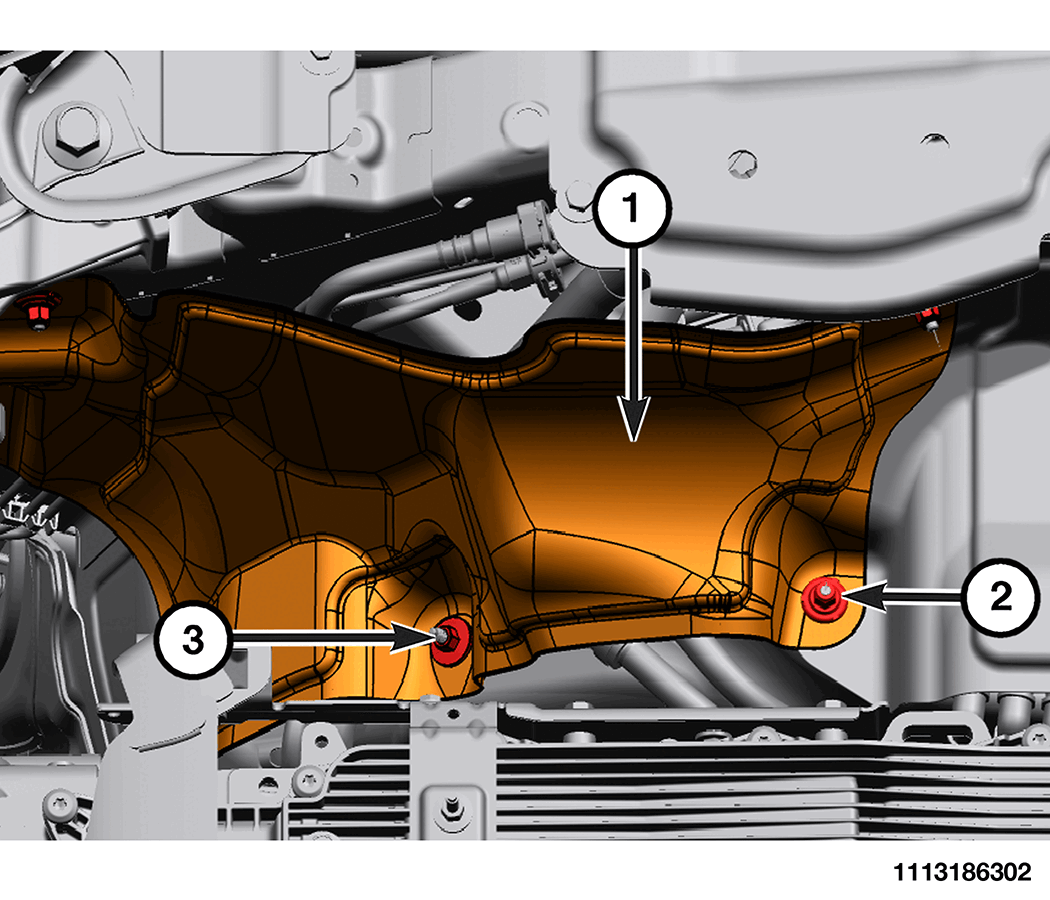

    GC0203163Courtesy of CHRYSLER GROUP, LLC
    1 - Front Heat Shield
    2 - Front Heat Shield Nuts (Plastic)
    3 - Front Heat Shield Nut (Steel)
  2. Remove the catalytic converter heat shield nuts and the catalytic converter heat shield.
