Exhaust Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the front belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .

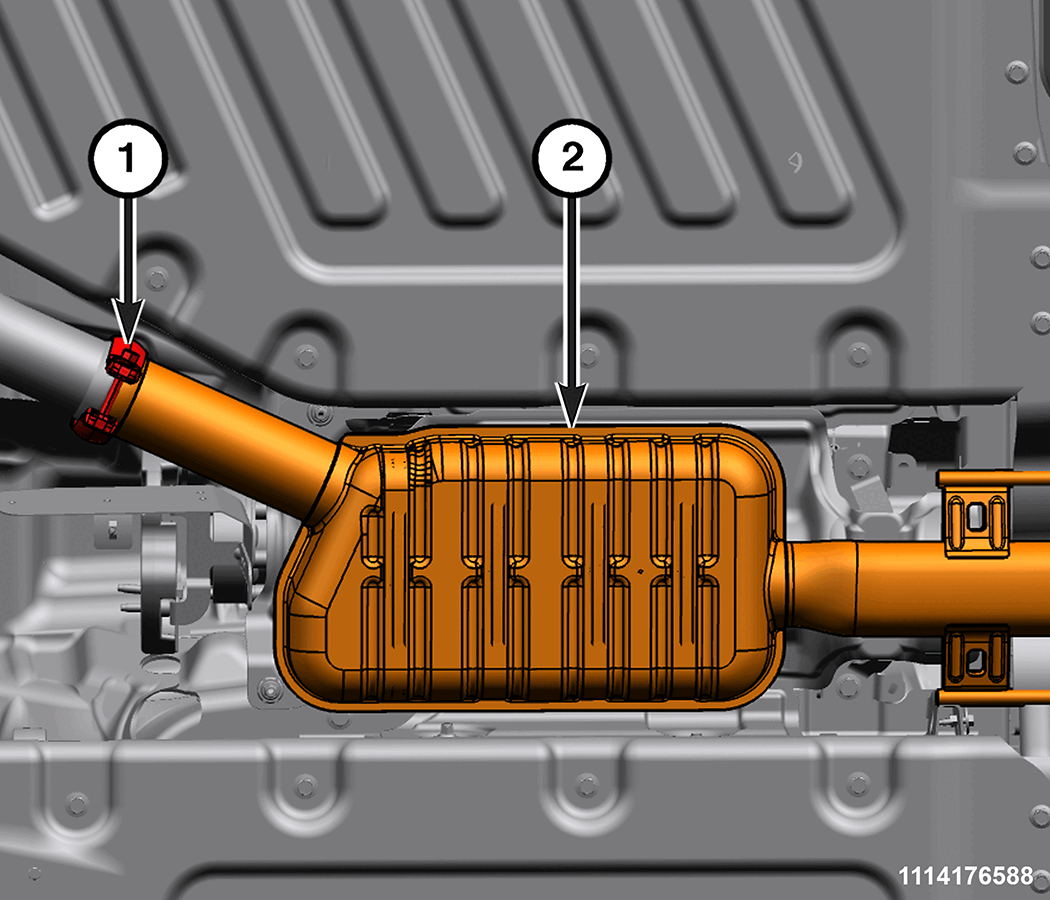

    GC0203557Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Resonator/Muffler Clamp Nut
    2 - Exhaust Resonator/Muffler Assembly
  3. Loosen the exhaust resonator/muffler clamp nut and separate the exhaust resonator/muffler assembly from the exhaust pipe.

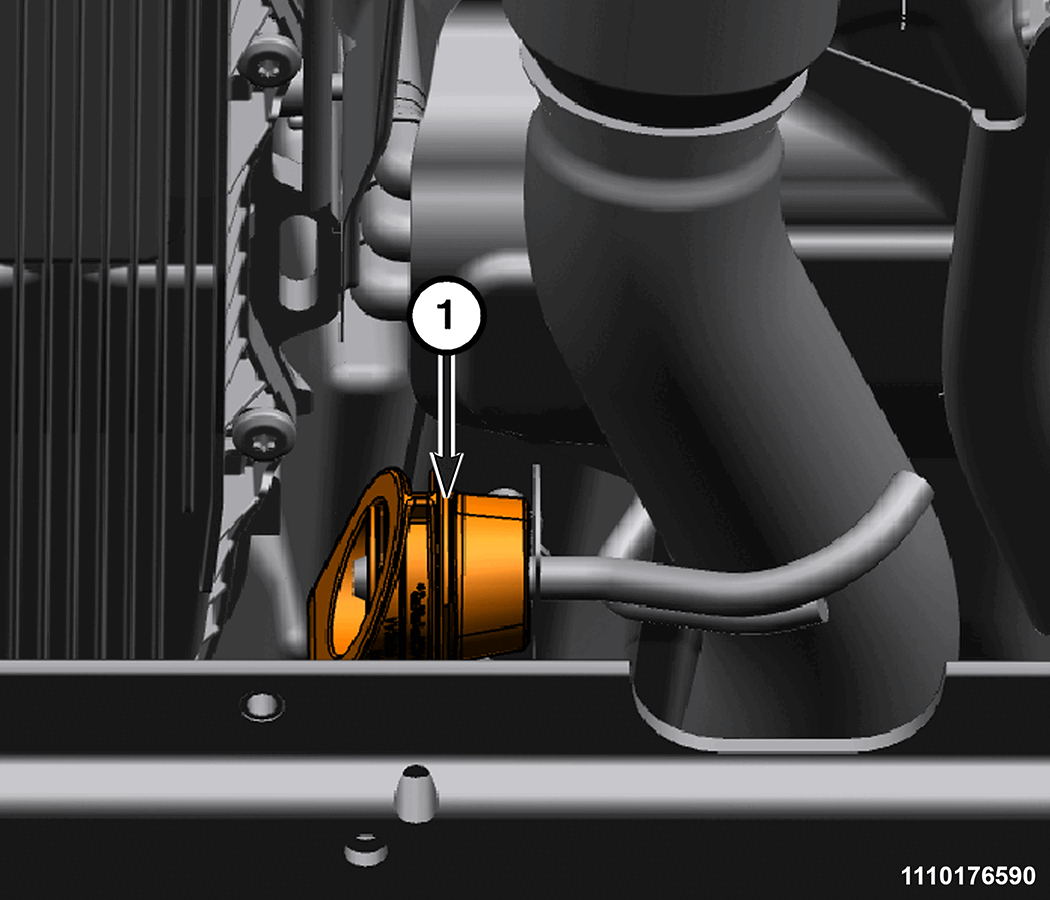

    GC0203310Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Isolator Bolt
  4. Remove the exhaust isolator bolt and the exhaust isolators.
  5. Remove the front suspension skid plate.
  6. Remove the transmission skid plate.
  7. Remove the transmission crossmember.

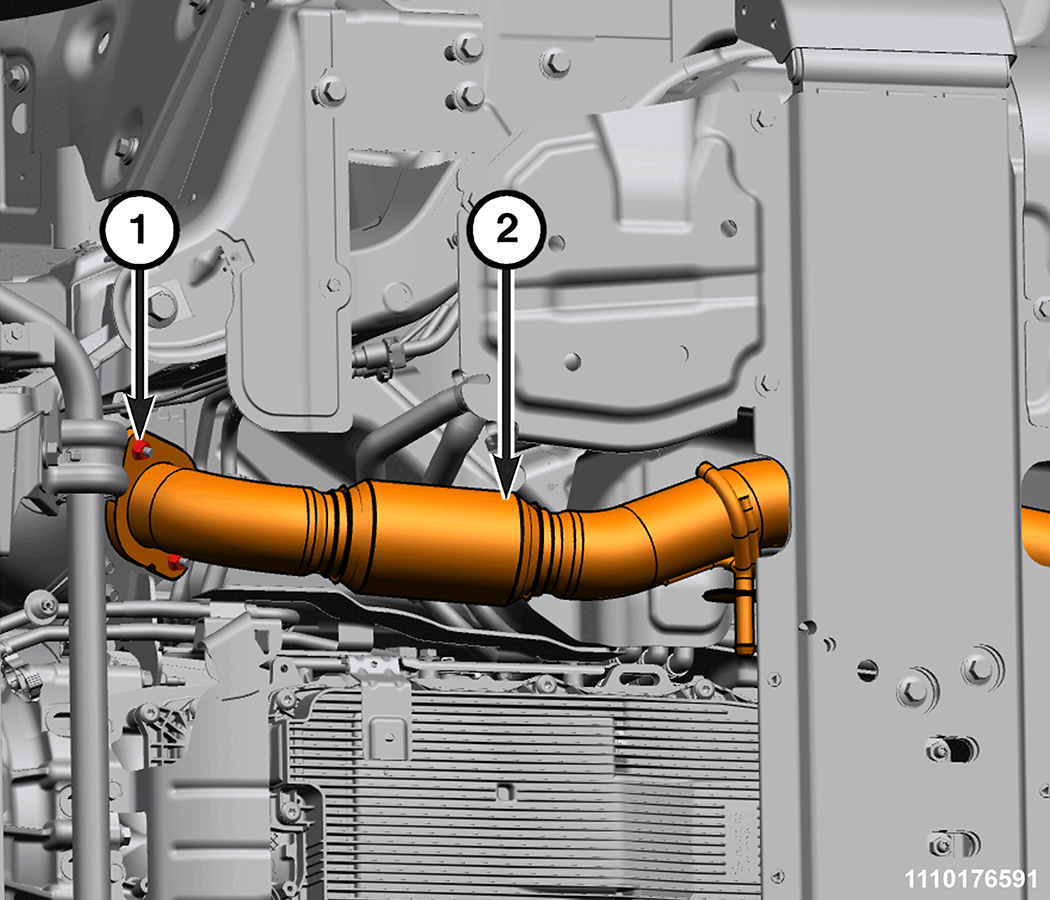

    GC0203368Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Pipe To Catalytic Converter Nuts
    2 - Exhaust Pipe
  8. Remove the exhaust pipe to catalytic converter nuts and the exhaust pipe.

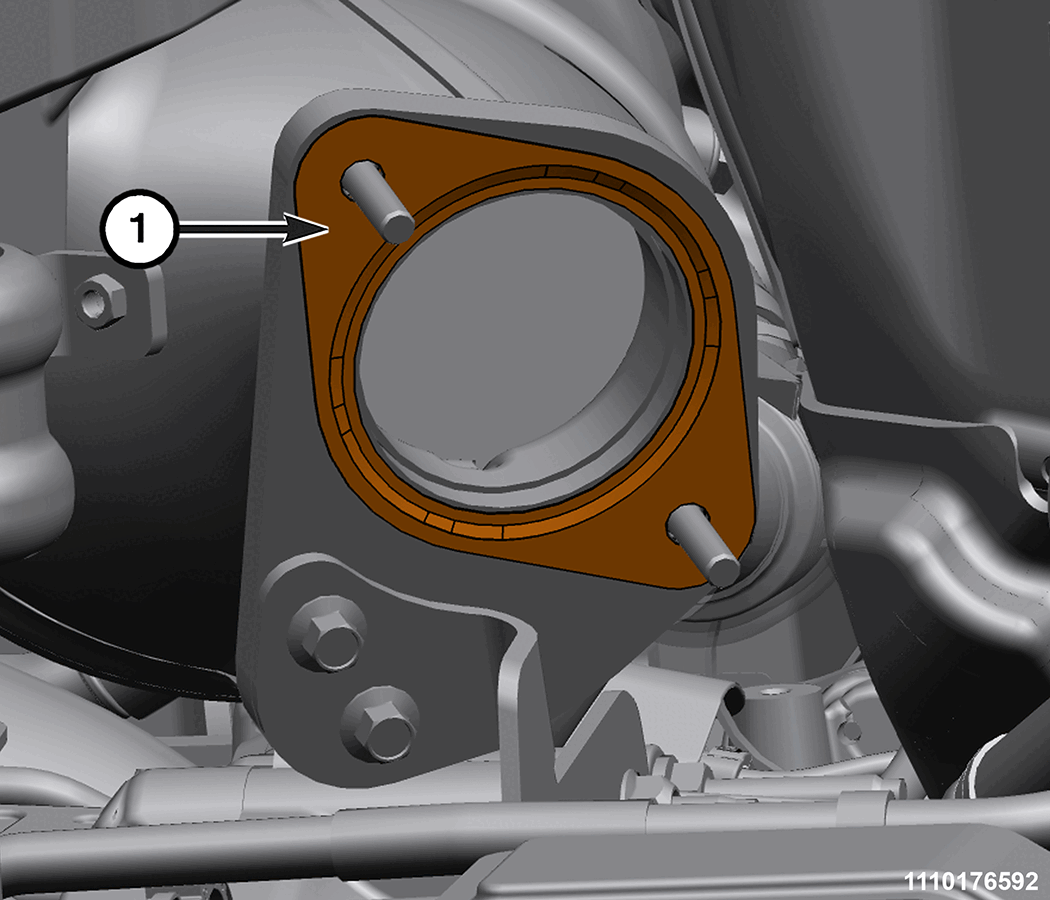

    GC0203157Courtesy of CHRYSLER GROUP, LLC
    1 - Gasket
  9. Remove and discard the gasket.
