Exhaust Resonator/Muffler: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Support the exhaust system with a suitable jack stand.

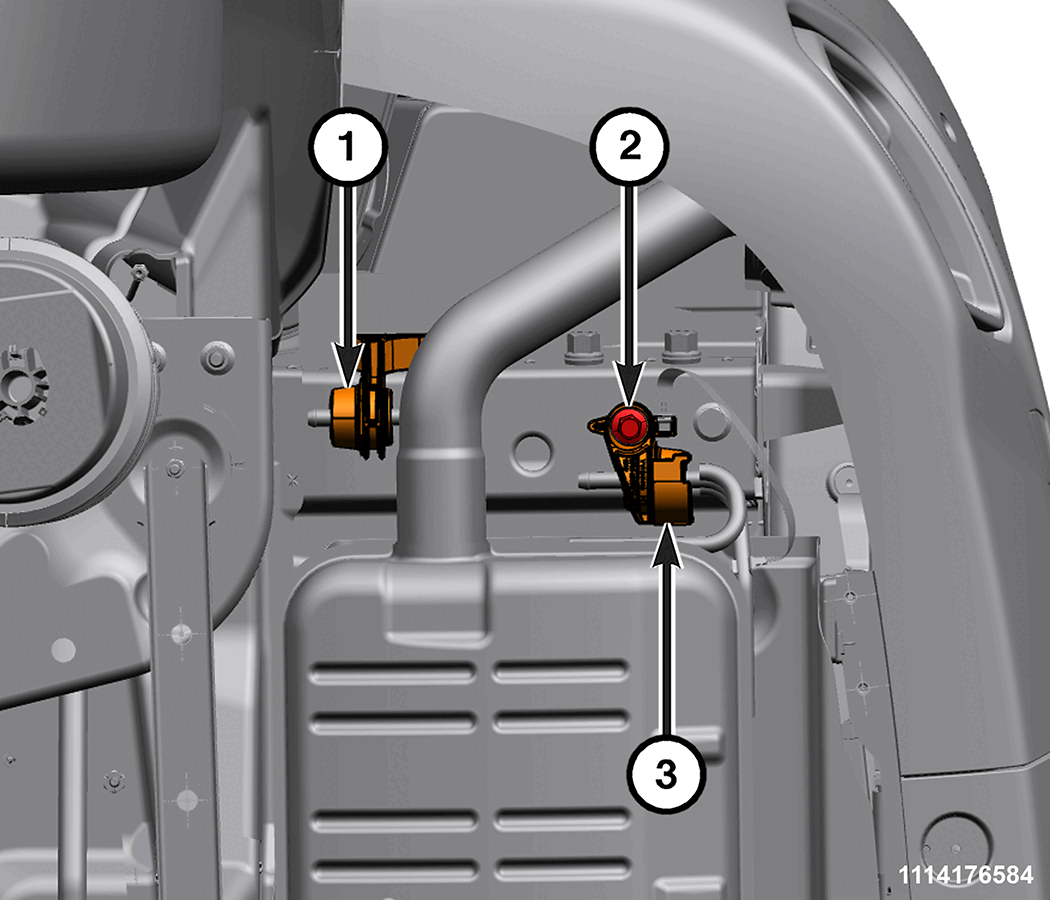

    GC0203185Courtesy of CHRYSLER GROUP, LLC
    1 - Left Front Exhaust Isolator
    2 - Exhaust Isolator Bolt
    3 - Left Rear Exhaust Isolator
  3. Remove the two left front exhaust isolator bolts.
  4. Remove the left rear exhaust isolator bolt.

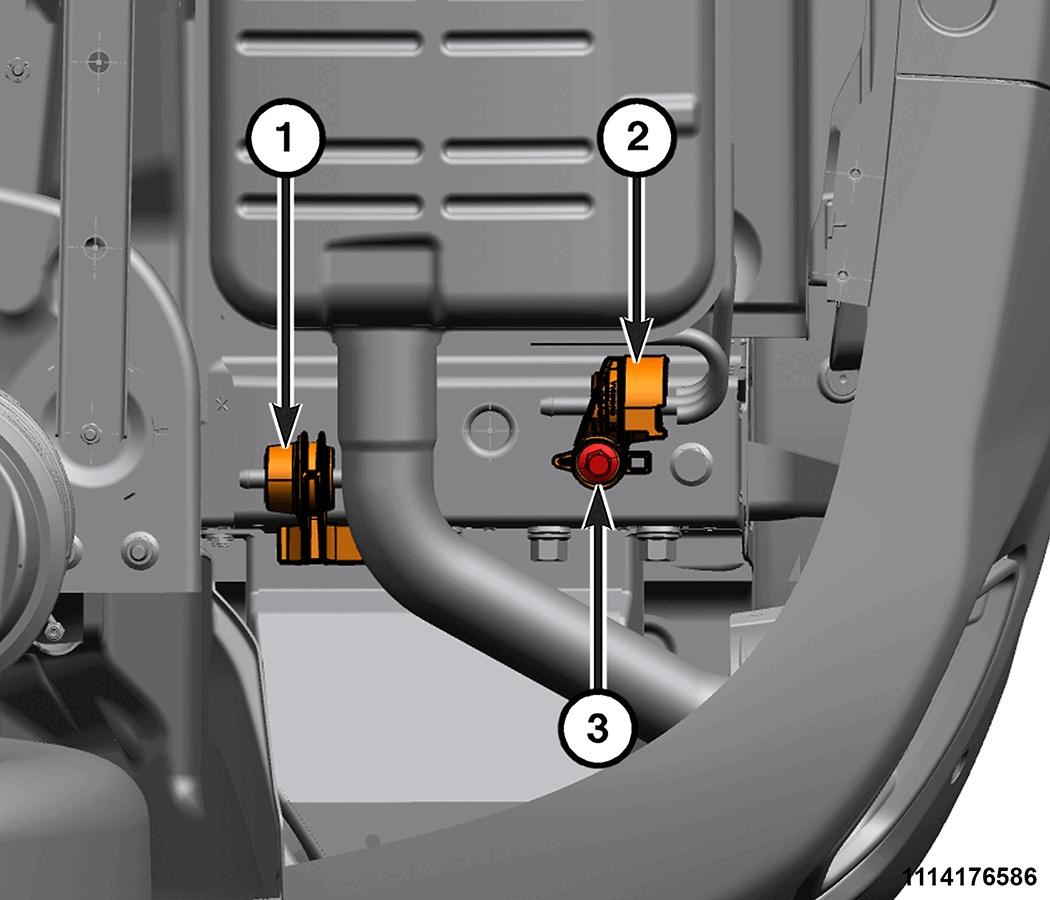

    GC0203225Courtesy of CHRYSLER GROUP, LLC
    1 - Right Front Exhaust Isolator
    2 - Right Rear Exhaust Isolator
    3 - Exhaust Isolator Bolt
  5. Remove the two right front exhaust isolator bolts.
  6. Remove the right rear exhaust isolator bolt.

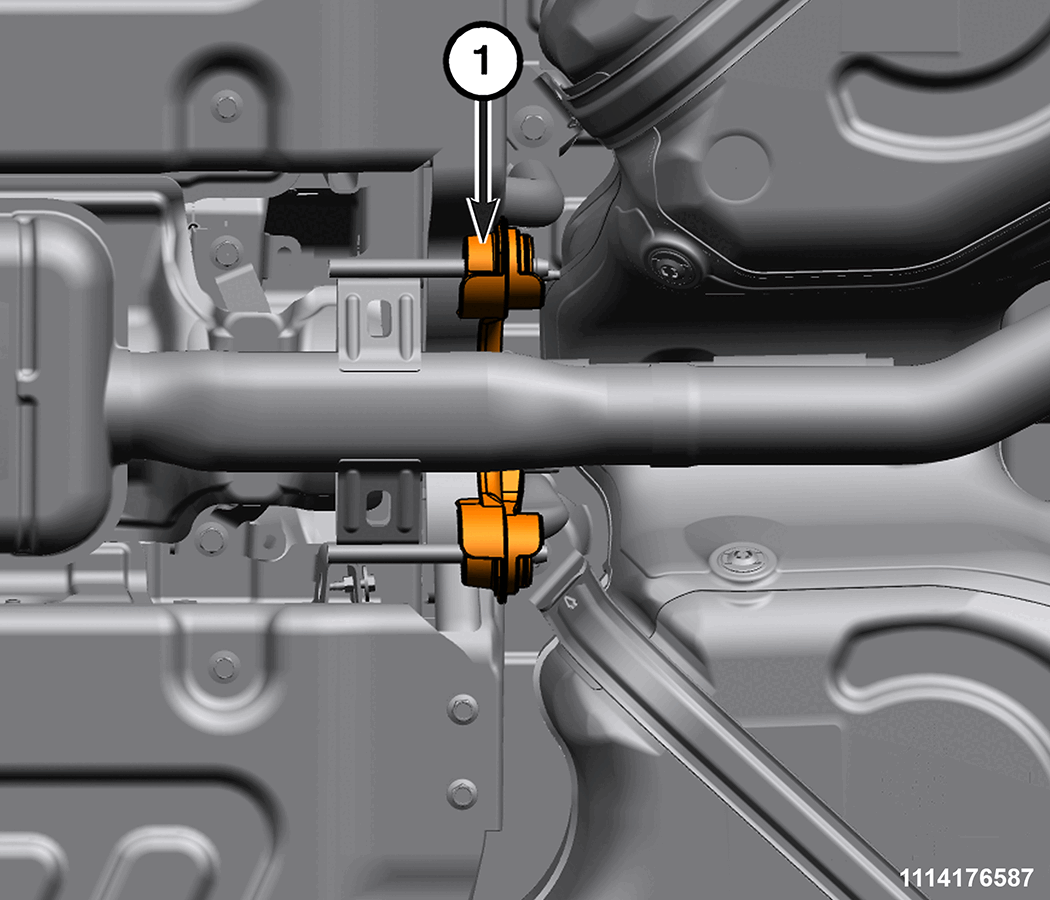

    GC0203675Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Isolators
  7. Remove the two exhaust isolator nuts.
    GC0203557Courtesy of CHRYSLER GROUP, LLC
    1 - Exhaust Resonator/Muffler Clamp Nut
    2 - Exhaust Resonator/Muffler Assembly
  8. Loosen the exhaust resonator/muffler clamp nut.
  9. With the help of an assistant, remove the exhaust resonator/muffler assembly.
