Audio Channel Mapping: Notes
NOTE:

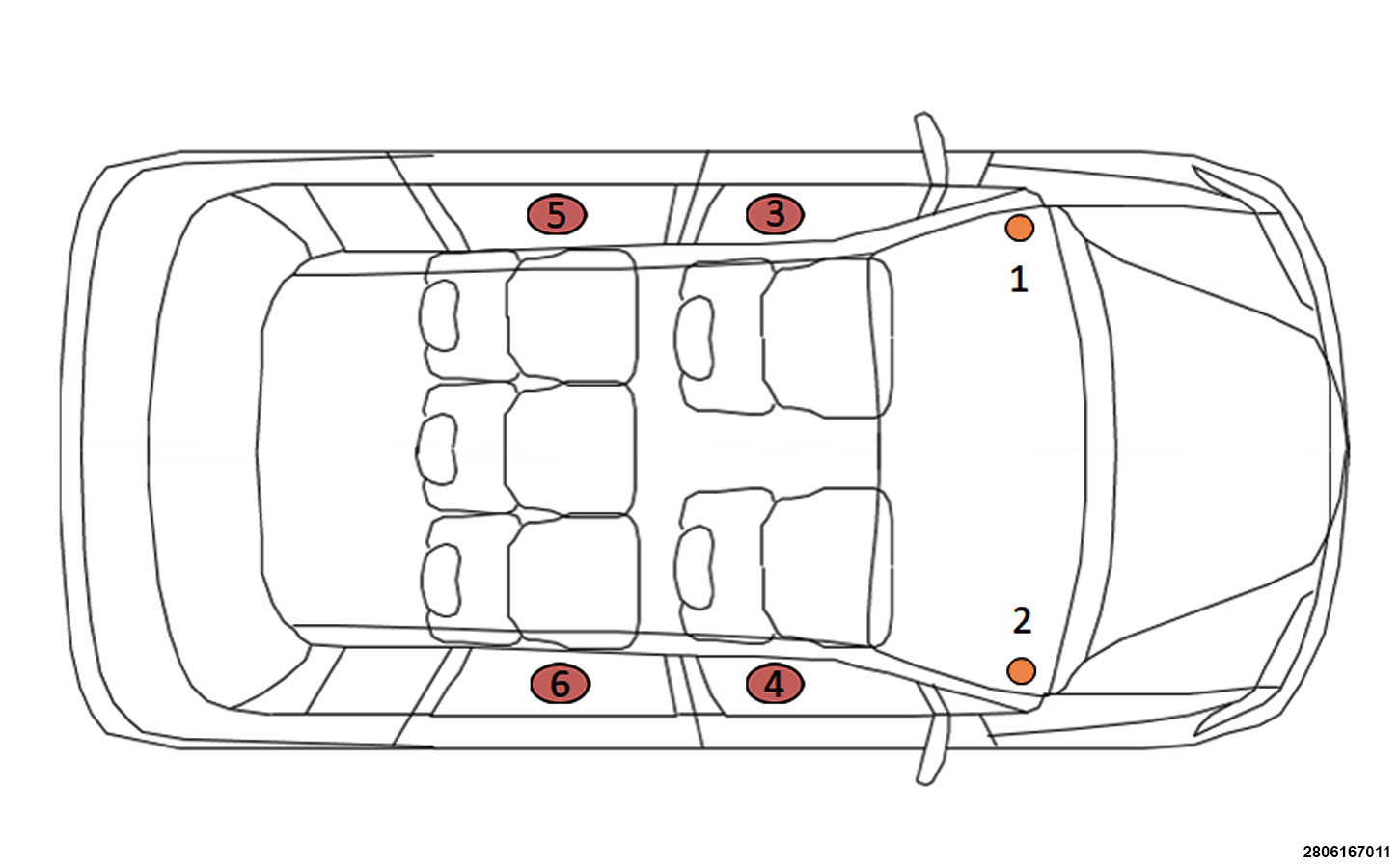

Use the Audio Channel Mapping in addition to the Audio System Wiring Diagram as a diagnostic aid. Note the DTC description as it applies to the audio channel and speaker. View the image to identify the NUMBERED audio channels and Sales Code.
| SALES CODE | DESCRIPTION |
|---|---|
| RCJ | 6 PREMIUM SPEAKERS |
| SALES CODE | DESCRIPTION |
|---|---|
| RC3 | 9 AMPLIFIED SPEAKERS W/SUBWOOFER |
| CHANNEL 10 - NOT USED | |
| SUBWOOFER (for Channels 11 and 12) will be located in the left OR right rear of the vehicle. | |
| SALES CODE | DESCRIPTION |
|---|---|
| RCA | 19 SPKRS SRT HIGH PERF AUDIO |
| CHANNEL 17 - NOT USED | |
| SUBWOOFER (for Channels 11 and 12) will be located in the left OR right rear of the vehicle. | |
