Separator, Oil: Installation

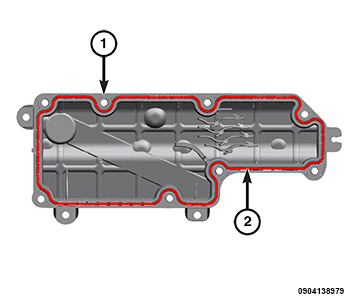

GC0186421Courtesy of CHRYSLER GROUP, LLC
  1. Install a new gasket (2) to the engine oil vapor separator (1).

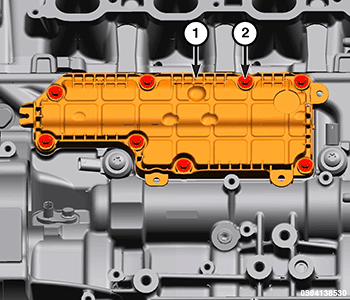

    GC0186456Courtesy of CHRYSLER GROUP, LLC
  2. Install the engine oil vapor separator (1) with eight NEW  bolts (2) hand tight.

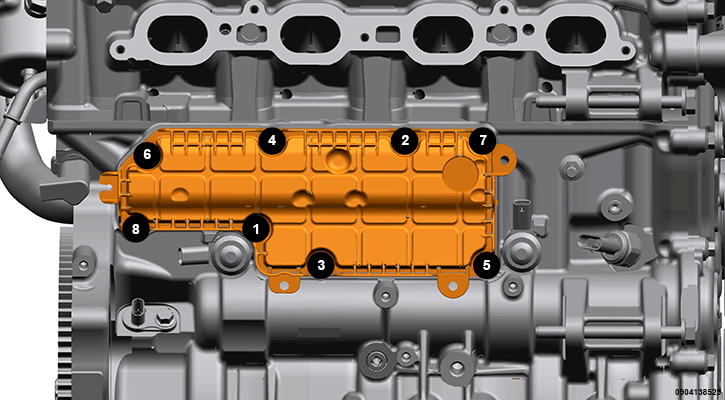

    Fig 1: Engine Oil Vapor Separator Bolts Tightening Sequence
    GC0186778Courtesy of CHRYSLER GROUP, LLC
  3. Tighten the bolts in the sequence shown in illustration to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

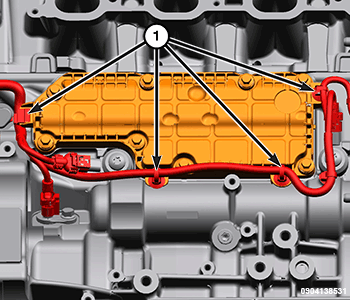

    GC0186703Courtesy of CHRYSLER GROUP, LLC
  4. Engage the engine wiring retaining clips (1).
  5. Install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
  6. Fill the cooling system. Refer to COOLING SYSTEM, STANDARD PROCEDURE .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  8. Remove the support and lower the vehicle.
