Dipstick Tube, Engine Oil: Removal

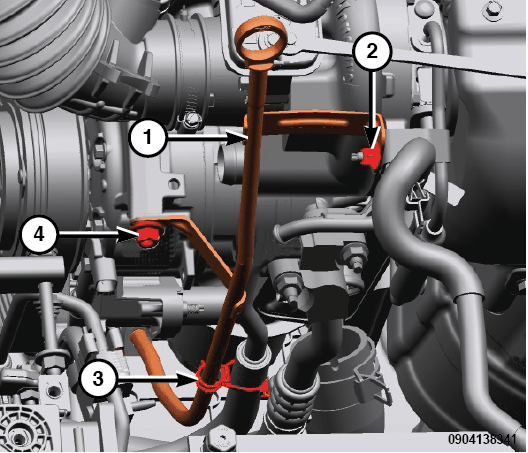

GC0187090Courtesy of CHRYSLER GROUP, LLC
  1. Disengage the retainer (3) from the oil dipstick tube (1).
  2. Remove upper nut (2) and lower nut (4) securing the oil dipstick tube (1) and pull the oil dipstick tube from the oil pan.
    GC0169955Courtesy of CHRYSLER GROUP, LLC
  3. Remove and discard the dipstick tube O-ring seal (1).
