Oil Pump Sprocket

  1. Remove the timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL .
  2. Remove the cam chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .
  3. Remove the oil pump drive chain tensioner shoe. Refer to TENSIONER, ENGINE TIMING, REMOVAL .
  4. Remove the oil pump drive chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .

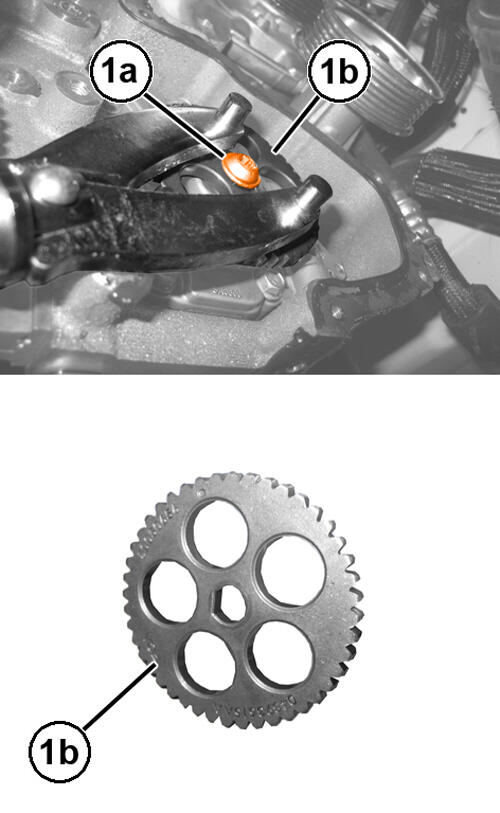

    GC0181011Courtesy of CHRYSLER GROUP, LLC
  5. Use the (special tool #6958, Wrench, Spanner) to hold the sprocket and remove the bolt (1a) and the oil pump sprocket (1b).
    GC0181943Courtesy of CHRYSLER GROUP, LLC
  6. Remove the oil pump sprocket friction shim (1) from the oil pump driveshaft.
