Solenoid, Oil Pump: Installation

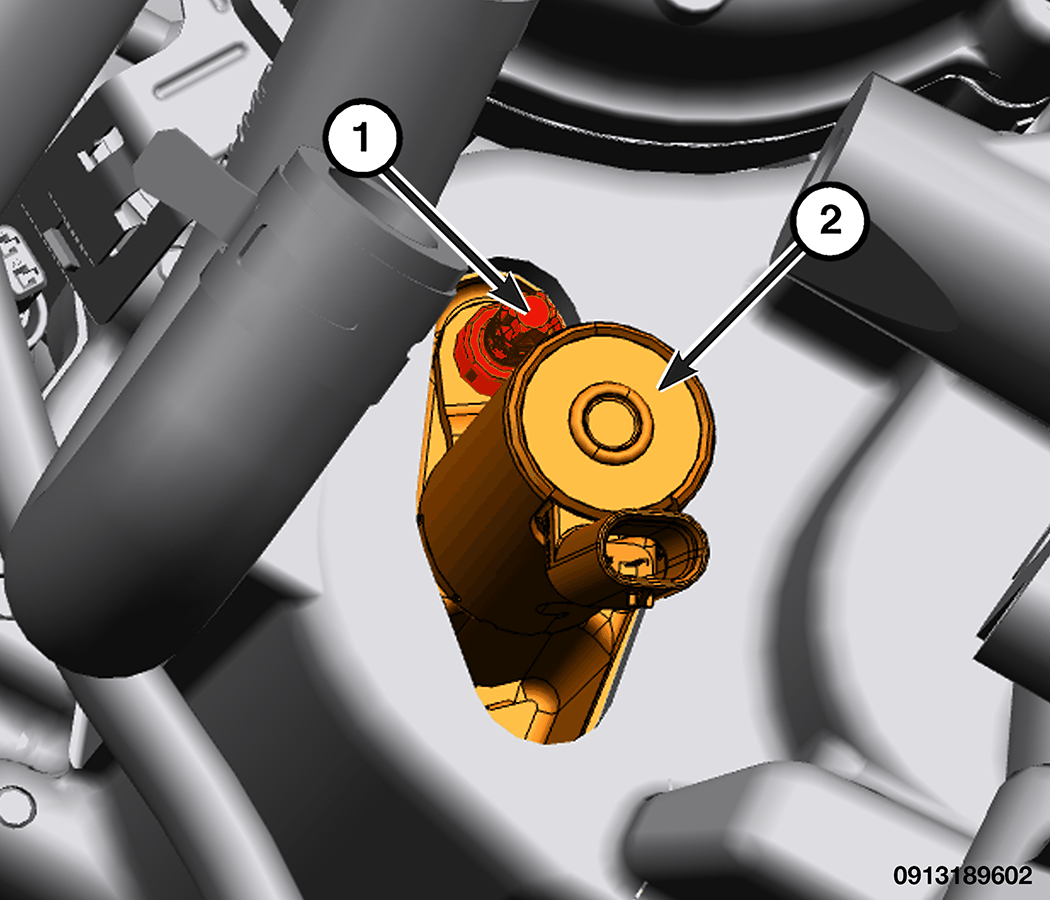

GC0203790Courtesy of CHRYSLER GROUP, LLC
  1. Install the oil pressure solenoid (2) and tighten the oil pressure solenoid studbolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

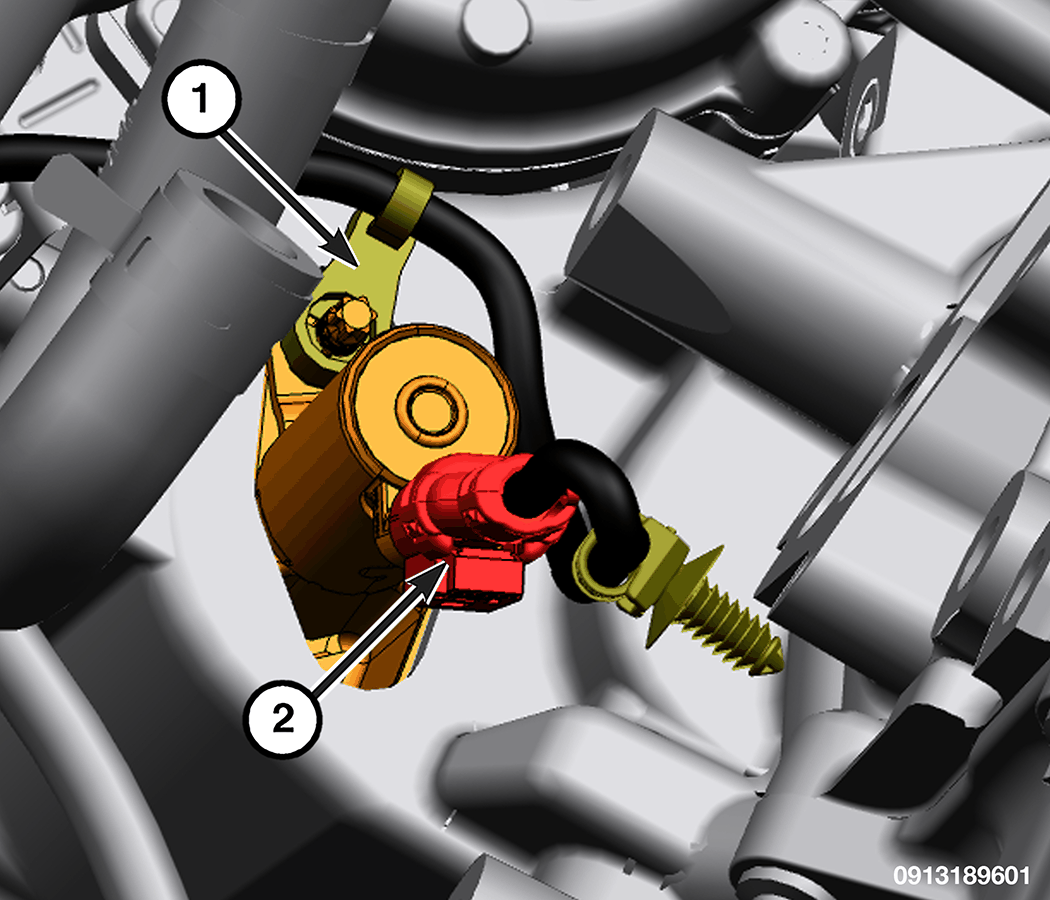

    GC0203795Courtesy of CHRYSLER GROUP, LLC
  2. Connect the oil pump solenoid wire harness connector (2) and attach the wire harness retainers (1).
  3. Install the oil cooler. Refer to COOLER, OIL, INSTALLATION .
  4. Fill the cooling system. Refer to COOLING SYSTEM, STANDARD PROCEDURE .
  5. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
