Engine Oil Pump

multimedia:A supplement to the article is available.
  1. Remove the cylinder head cover and timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL .
  2. Remove the cam chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .
  3. Remove the oil pump drive chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .
  4. Remove the oil pump sprocket. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .
    GC0181024Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the wire harness connector (1) from the engine oil pump displacement control solenoid.
    GC0180991Courtesy of CHRYSLER GROUP, LLC

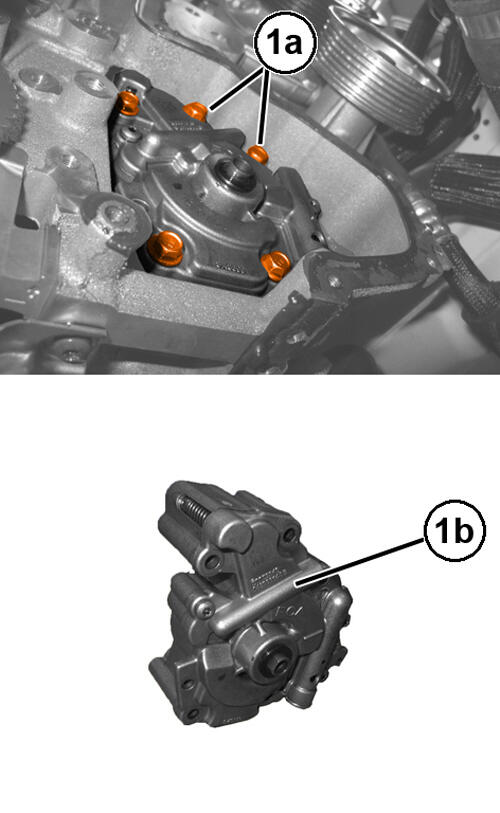

  6. Remove the five bolts (1a) and remove the engine oil pump (1b).
    GC0180967Courtesy of CHRYSLER GROUP, LLC
  7. Remove the seals (1).
  8. If required, remove the stud bolt (2a) and remove the engine oil pump displacement control solenoid (2b) complete with O-ring.
