Engine Oil Pump

multimedia:A supplement to the article is available.
GC0180967Courtesy of CHRYSLER GROUP, LLC

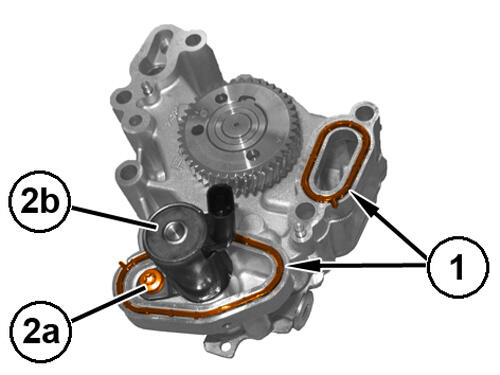

  1. Install new engine oil pump gaskets (1).
  2. If removed, install the engine oil pump displacement control solenoid (2b) with a new O-ring and tighten the stud bolt (2a) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. To install the engine oil pump, use the (special tool #2027100090, Kit, Engine Timing) as described below:
    GC0182434Courtesy of CHRYSLER GROUP, LLC

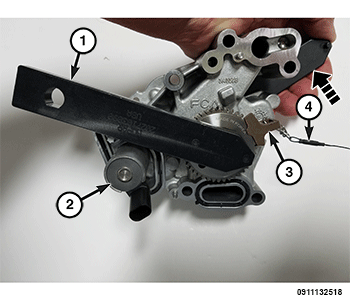

  4. Position one (special tool #2027103090, Wrench, Oil Pump) (1) on the outer gear resting against the engine oil pump displacement control solenoid (2) as shown in illustration and the second (special tool #2027103090, Wrench, Oil Pump) on the engine oil pump driveshaft.
  5. Rotate the engine oil pump driveshaft to align the two gears and install the (special tool #2027104090, Holder, Oil Pump Gear Teeth) (3) in the location shown in illustration to lock the gears in this preload position.
  6. Remove the wrenches used for preloading.
  7. Attach the cable portion of the (special tool #2027108090, Remover, Gear Tooth Holder) (4) to the holder (3).
    GC0183308Courtesy of CHRYSLER GROUP, LLC
    NOTE:

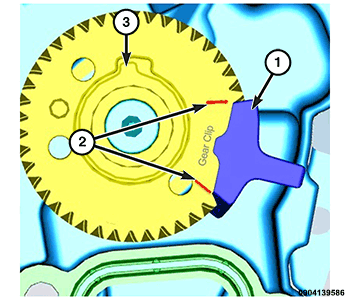

    The gears are properly aligned when the tab (3) is positioned in the left half of the slot and the holder (1) is positioned between the Gear Clip alignment marks (2).

  8. Verify that the gears are properly aligned and the holder (1) is positioned as shown in illustration.
    GC0180990Courtesy of CHRYSLER GROUP, LLC

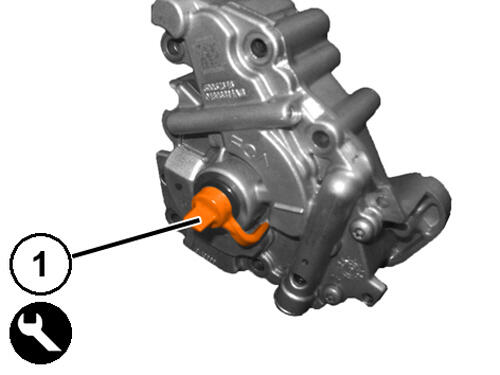

  9. Install the (special tool #2027105090, Alignment Tool, Oil Pump Shaft) (1) in the position shown in illustration.
    GC0181000Courtesy of CHRYSLER GROUP, LLC

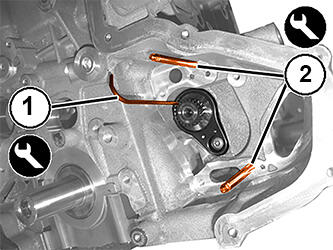

  10. Insert the longer of the two (special tool #2027101090, Alignment Pins, Balance Shaft) (1) through the balance shaft mount into the balance shaft alignment hole and position as shown in illustration.
  11. Install the (special tool #2027102090, Alignment Pins, Oil Pump) (2) in the positions shown in illustration.
    GC0181116Courtesy of CHRYSLER GROUP, LLC

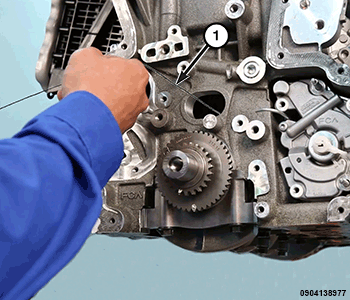

  12. Feed the remover cable (1) through the oil pump cavity and out the front of the engine block.
    GC0181001Courtesy of CHRYSLER GROUP, LLC

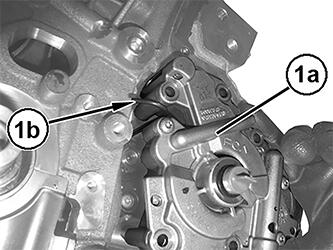

  13. Position the oil pump (1a) on the oil pump alignment pins avoiding contact with the balance shaft alignment pin (1b).
    GC0183179Courtesy of CHRYSLER GROUP, LLC

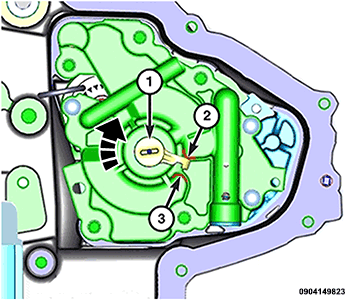

  14. Begin installation with the oil pump shaft alignment tool (1) resting against the upper boss (2) as shown in illustration. As the oil pump is installed, the oil pump driveshaft will rotate clockwise until the alignment tool (1) comes to rest against the lower boss (3) assuring correct meshing of the gear teeth.
    GC0181015Courtesy of CHRYSLER GROUP, LLC

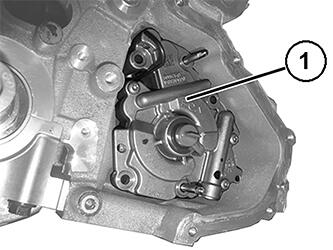

  15. Seat the oil pump (1) squarely against the engine block mounting surface, engaging the oil pump gears to the balance shaft gear.
  16. Hold the oil pump against the engine block mounting surface and install three engine oil pump bolts hand tight.
    GC0181590Courtesy of CHRYSLER GROUP, LLC

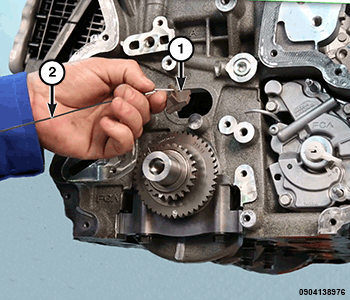

  17. Attach the hook from the (special tool #2027108090, Remover, Gear Tooth Holder) to the previously installed cable (2) and remove the gear tooth holder (1).
  18. Remove oil pump shaft alignment tool and the oil pump alignment pins.
    GC0180995Courtesy of CHRYSLER GROUP, LLC

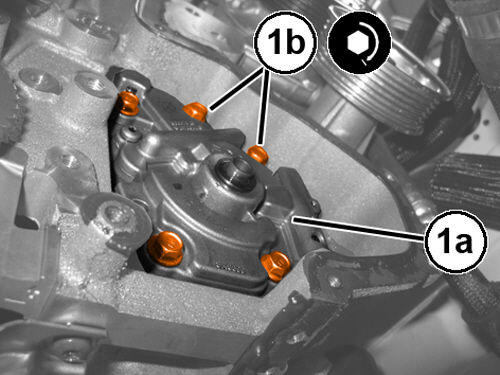

  19. Install the remaining two bolts (1b) securing the engine oil pump (1a) hand tight.
    Fig 1: Engine Oil Pump Screws Tightening Sequence
    GC0180971Courtesy of CHRYSLER GROUP, LLC
  20. Tighten the screws in the sequence shown in illustration to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0181246Courtesy of CHRYSLER GROUP, LLC

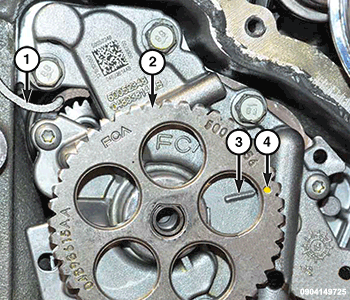

  21. Verify correct oil pump and balance shaft timing:
    • Temporarily install the oil pump drive gear (2) on the oil pump driveshaft.
    • Insert the longer of the two (special tool #2027101090, Alignment Pins, Balance Shaft) (1) through the balance shaft mount into the balance shaft alignment hole.
    • Verify that the oil pump reference mark (3) and oil pump drive gear mark (4) are aligned. If the oil pump and balance shaft timing is not correct, repeat this procedure.
    GC0181024Courtesy of CHRYSLER GROUP, LLC

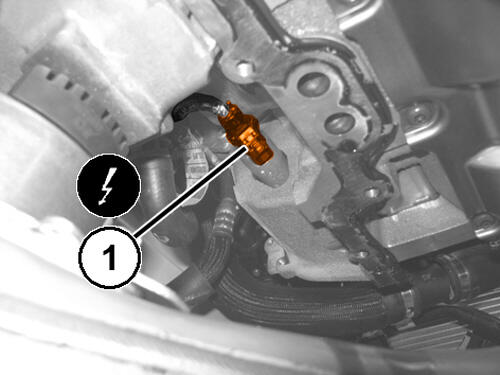

  22. Connect the wire harness connector (1) to the engine oil pump displacement control solenoid.
  23. Install the oil pump sprocket. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION  .
  24. Install the oil pump drive chain. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION  .
  25. Install the cam chain. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION  .
  26. Install the timing chain cover and cylinder head cover. Refer to COVER(S), ENGINE TIMING, INSTALLATION .
