Jet, Piston Oil Cooler: Installation

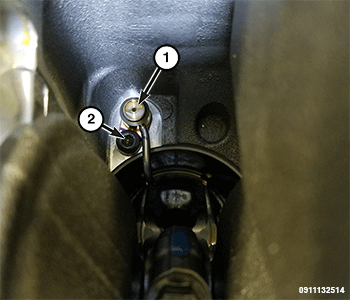

GC0181660Courtesy of CHRYSLER GROUP, LLC
  1. Install the piston oil cooler jet (1) with the bolt (2) tightened to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the windage tray and oil pan. Refer to PAN, OIL, INSTALLATION .
  3. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to ENGINE OIL, STANDARD PROCEDURE .
