Cooler, Oil: Installation

  1. Remove all sealant residues from the threaded holes in the engine block.

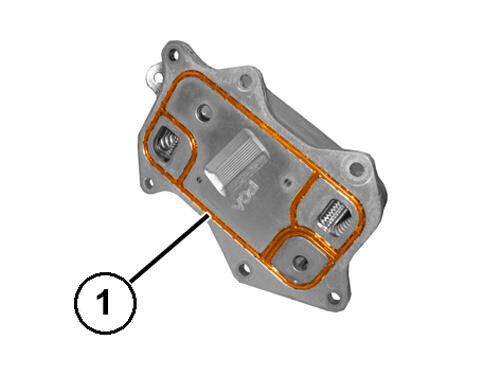

    GC0180970Courtesy of CHRYSLER GROUP, LLC
  2. Install a new oil cooler seal (1) to the oil cooler.

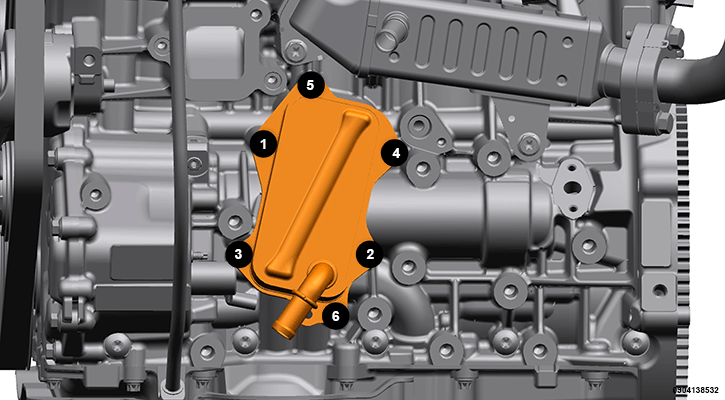

    Fig 1: Engine Oil Cooler Bolts Tightening Sequence
    GC0186976Courtesy of CHRYSLER GROUP, LLC
  3. Install the engine oil cooler, complete with new seal, and tighten the six NEW  bolts in the sequence shown in illustration to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

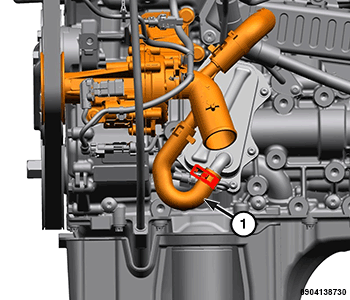

    GC0186378Courtesy of CHRYSLER GROUP, LLC
  4. Install the coolant outlet hose (1) to the engine oil cooler and tighten the band clamp.
  5. Install the turbocharger engine oil supply pipe. Refer to LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, INSTALLATION .
  6. Install the catalytic converter. Refer to CONVERTER, CATALYTIC, INSTALLATION .
  7. Fill the cooling system. Refer to COOLING SYSTEM, STANDARD PROCEDURE .
  8. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to ENGINE OIL, STANDARD PROCEDURE .
  9. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  10. Remove the support and lower the vehicle.
